Table 19 Specifications for the 8-Port 1000BASE-X GE Module (continued)
Specification
BootROM
SDRAM
Dimensions (L x W)
Maximum power
consumption
Number of ports
Optional GBIC module
types
Port transmission speed
Compliance
The 8-port 10/100/1000BASE-T GE module provides 8 external 10/100/1000
Mbps auto-sensing Ethernet electrical ports.

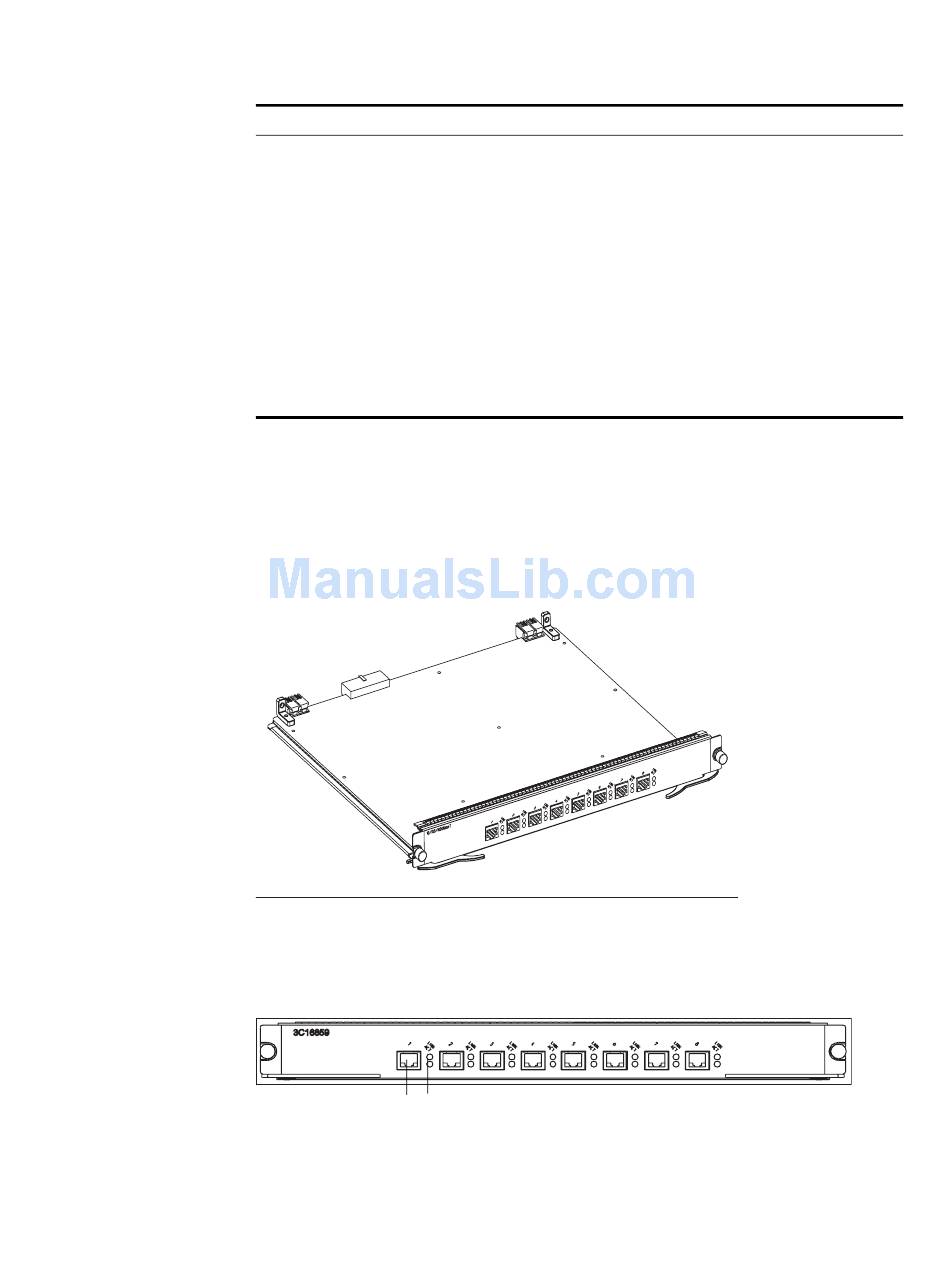

Figure 9 illustrates the 8-port 10/100/1000BASE-T GE module.
Figure 9 8-Port 10/100/1000BASE-T GE Module
Each port on the 8-port 10/100/1000BASE-T GE module has 2 LEDs, as shown in
Figure 10.
Figure 10 Front Panel of the 8-Port 10/100/1000BASE-T GE Module
1 2
1 Ethernet port
2 Ethernet port LEDs
Description
512 KB
64 MB
366.7 x 340 mm (14.5 x 13.4 in)
50 W
8
3CGBIC 91
3CGBIC 92
3CGBIC 97
1000 Mbps, full duplex
IEEE 802.3z
IEEE 802.3x
