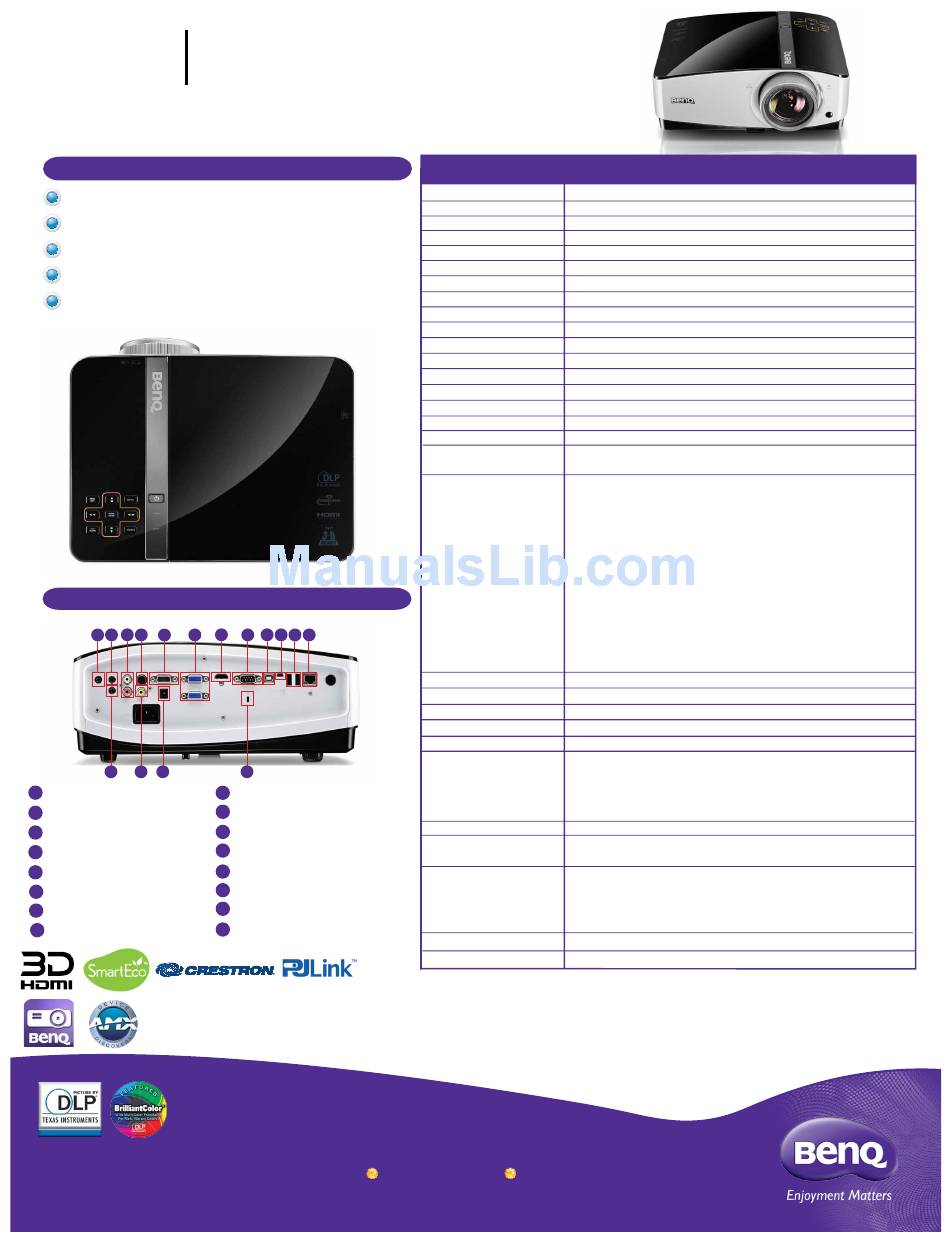

BenQ MW767 Quick Start Manual

MW767
DIGITAL
PROJECTOR
Features
Native WXGA (1280 x 800) Resolution
4,200 ANSI Lumens, 13,000:1 Contrast Ratio
SmartEco™ Power Saving T echnology
Various 3D Format Support, Wireless Display (Opt)
LAN Display/Control, USB Reader/Display
Input and Output Terminals
1 2 3
4
5 6
13 14 15
1
Audio Out (Mini Jack)
2
Audio In (Mini Jack)
3
Audio In L/R (RCA)
4 S-Video In (Mini DIN 4pin)
5 Monitor Out (D-sub 15pin)
6
Computer In 1 & 2 (D-sub 15pin)
7
HDMI
RS232 (DB-9pin)
8
BenQ America Corp.
15375 Barranca Parkway. Suite A-205. Irvine, CA 92618
BenQ is a registered trademark of BenQ Corp. DLP
Product names, logos, brands, and other trademarks featured or referred to in this materials are the property of their respective trademark holders.
Specifications subject to change without notice.
8 9
7
10 11 12
16
USB (Type B)
9
10 USB (Type Mini B)
11 USB (Type A)
12 LAN (RJ45)
Microphone in (Mini Jack)
13
14
Composite Video in (RCA)
15
12V Trigger
16 Security Lock
Tel: (949) 255-9500
® is a registered trademark of Texas Instruments. All rights reserved.
I
Specifications
Projection System DLP ®
Native Resolution WXGA (1280x800)
Brightness 4,200 AL
Contrast Ratio 13,000:1
Display Color 1.07 Billion Colors
Lens F=2.42-2.98, f=20.7-31.13mm
Aspect Ratio Native 16:10 (5 aspect ratio selectable)
Throw Ratio 1.45-2.17 (63"@2m)
Image Size (Diagonal) 47"-300"
Zoom Ratio 1.5:1
Lamp Type 310 W
Lamp Life 2500/3000/3500 hours
Keystone Adjustment 1D, Vertical +/- 40 degrees
Projection Offset 125% ±5%
Resolution Support VGA(640 x 480) to UXGA(1600 x 1200)
Horizontal Frequency 27K~102KHz
Vertical Scan Rate 23~120Hz
HDTV Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Compatibility
Video Compatibility: NTSC, PAL, SECAM
Computer in (D-sub 15pin)
Interface
Monitor out (D-sub 15pin)
HDMI
Composite Video in (RCA)
S-Video in (Mini DIN 4pin)
Audio in (Mini Jack)
Audio L/R in (RCA)
Audio out (Mini Jack)
Microphone in (Mini Jack)
Speaker
LAN (RJ45)
USB (Type A)
USB (Type mini B)
RS232 (DB-9pin)
IR Receiver
Dimensions (WxHxD) 12.9" x 5.4" x 10.1"
Weight 8.59lbs (3.9 kg)
Power Supply AC100 to 240 V, 50 to 60 Hz
Power Consumption 340W(typical), Standby<0.5W
38/36 dBA (Normal/Economic mode)
Audible Noise
Arabic/Bulgarian/ Croatian/ Czech/ Danish/ Dutch/ English/ Finnish/
On-Screen Display
French/ German/ Greek/ Hindi/ Hungarian/ Italian/ Indonesian/
Languages
Japanese/ Korean/ Norwegian/ Polish/ Portuguese/ Romanian/
Russian/ Simplified Chinese/Spanish/ Swedish/ Turkish/ Thai/
Traditional Chinese (28 Languages)
Dynamic/Presentation/sRGB/Cinema/User 1/User 2
Picture Modes
Remote Control w/ Battery, Power Cord, User Manual CD,
Accessories (Standard)
Quick Start Guide, Warranty Card, VGA(D-sub 15pin) Cable
Accessories (Optional) Spare Lamp Kit
Ceilling Mount
3D Glasses
Carry bag
3-Year Parts & Labor / 1-Year or 2000 hours of lamp life
Limited Warranty
8400460-2543-4
UPC Code
*Lamp life results will vary depending on environmental conditions and usage. Actual product's features and specifications are
subject to change without notice.
www.BenQ.us
x 2 (Share with component)
x 1
x 1
x 1
x 1
x 2
x 1
x 1
x 1
20W x 1
x 1 (LAN Control & LAN Display & Audio)
x 2 (USB Reader & Wireless Display & Remote Desktop)
x 1 (USB Display & Download)
x 1
x 2 (Front & Top)
P/N: 5J.J6R05.001
P/N: 5J.J4N10.001
P/N: 5J.J7K25.001
P/N: 5J.J2V09.011
MW767 01-14-13-BQus
