AstroStart RS-113 User Manual

Remote control engine starter
Hide thumbs
Table of Contents

Advertisement

Quick Links

REMOTE CONTROL ENGINE STARTER
MODEL RS-113
PATENTS PENDING
PATENT NO.
CAN.
1.130.426
PATENT NO.
U.S.
4.345.554
transmission gas- and
vehicles. (Carburetor
DO NOT INSTALL ON
ASTROFLEX Inc.
For all automatic
diesel-powered
models require an
optional solenoid.)
MANUAL
TRANSMISSION
VEHICLES
Made in Canada by:
193-113-221-A0
.

Advertisement

Table of Contents
loading

Related Manuals for AstroStart RS-113

Summary of Contents for AstroStart RS-113

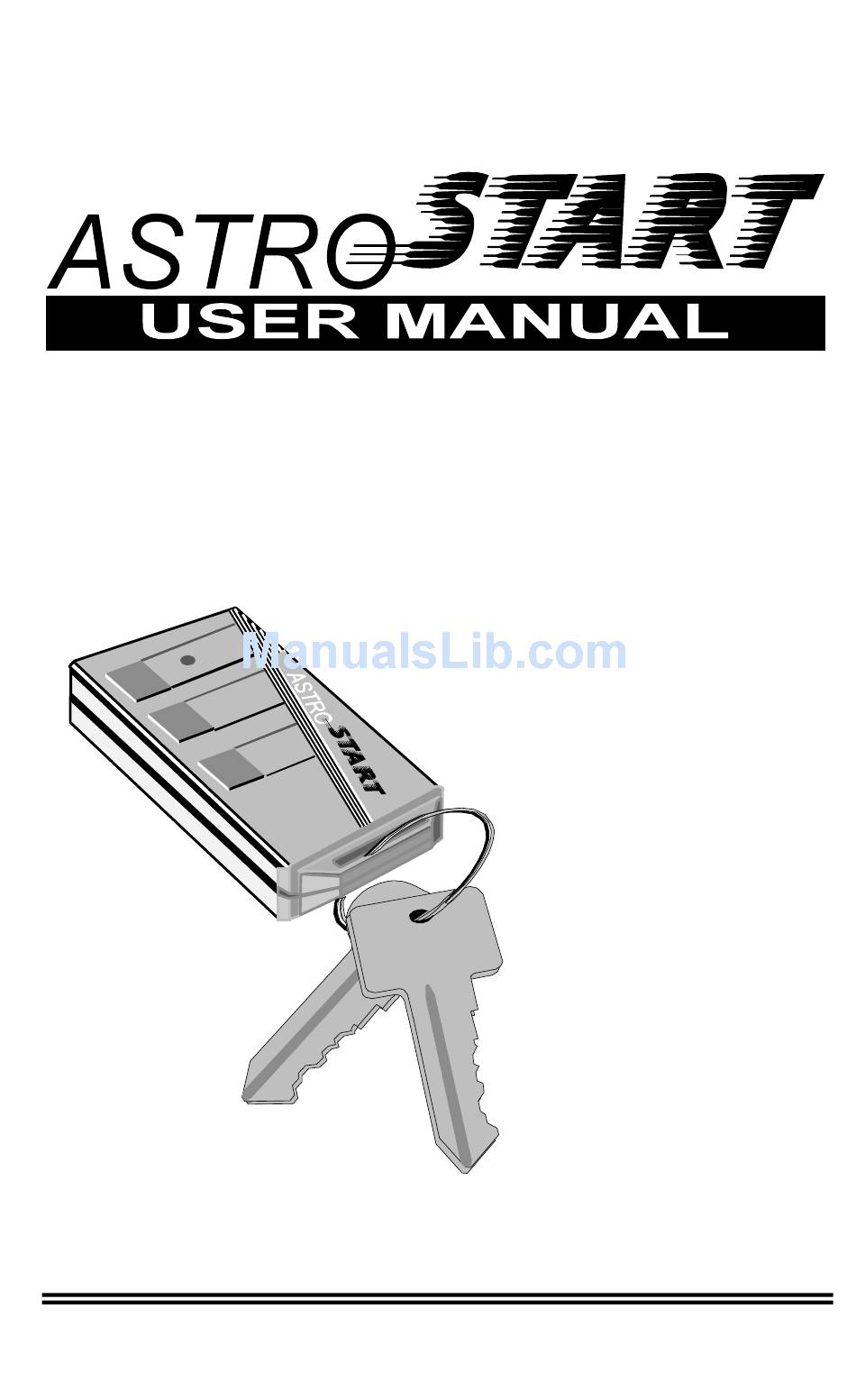

  • Page 1 REMOTE CONTROL ENGINE STARTER MODEL RS-113 For all automatic transmission gas- and diesel-powered vehicles. (Carburetor models require an optional solenoid.) DO NOT INSTALL ON MANUAL TRANSMISSION VEHICLES Made in Canada by: ASTROFLEX Inc. PATENTS PENDING PATENT NO. CAN. 1.130.426 PATENT NO. U.S.

  • Page 2: Safety Precautions

    INTRODUCTION ASTRO START Thank you for choosing the Remote Control Engine Starter. Your Remote Starter is the result of intensive research by a company specializing in the design of ASTRO START high-quality electronic automotive products. is designed to provide many years of reliable, trouble-free service.

  • Page 3: Before Using Your Remote Starter

    BEFORE USING YOUR REMOTE STARTER Before leaving your vehicle, set the various controls in order to use your Remote Starter. Set heating/air-conditioning to desired position. (When Remote Starter starts your engine, it will also turn on your climate control system.) Make sure: windshield wipers are “OFF”.

  • Page 4: Using Your Remote Control

    REMOTE CONTROL Your remote control works off a small, long-life 12-volt alkaline battery (GP-23A) that should last up to 6 months. Range of your remote control can be affected by a weak battery, interference from nearby metal structures, hydro poles, or crowded parking lots. With an electronic CODE LEARNING device, up to three additional remote controls can be programmed for your vehicle.

  • Page 5: Start Commands

    RS-113 COMMAND CODES Command 1 BT 2 BTS 3 BTS 4 BTS Confirmatio Start/stop Lights Activate Antitheft Lights Lock Lights Deactivate Antitheft Lights Unlock Lights Trunk release B&C 1B&C Lights Sentinel mode A&B 1A&B Lights Start only A&B * A&C 1A&C Lights, horn Car finder...

  • Page 6: Continuous Mode

    Trigger input Your Remote Starter is equipped with a negative trigger input. This input can be connected to another remote control device or timer output. If this input is connected, consult device manual or ask your technician which command is associated with start/stop function.
  • Page 7 To activate Sentinel Mode Enter command from table (horn: 0, lights: 1). Lights will flash once then, if temperature is below -15ºC (5ºF), engine will start after a 4½-second pause. This pause lets you distinguish between a regular start and an automatic (low temperature) start. If temperature is above -15ºC (5ºF), Sentinel waits until it goes below -15ºC (5ºF) before starting.

  • Page 8: Other Commands

    OTHER COMMANDS LOCKING AND UNLOCKING DOORS If your vehicle is equipped with electric door locks, several functions can be operated by remote control. These features are optional and may require purchasing additional equipment. Consult your dealer for advice. Following systems can be controlled: door locks;...

  • Page 9: Engine Run Time

    DOME LIGHT Programmable as Active or Inactive during installation. Dome light will turn on for 30 seconds every time “Unlock” command is sent. This 30- second duration is cancelled when “Lock” command is sent or brakes are applied. AUTOMATIC LOCK/UNLOCK Programmable as Active or Inactive during installation.

  • Page 10: If Engine Fails To Start

    IF ENGINE FAILS TO START If your system cannot start your vehicle at first attempt, it will wait a few seconds and then try again (it could try again twice depending on reason for failure to start), after which it will shut down automatically and wait for new command. SAFETY CHECKS In order to maintain high safety standard, proceed with following routine checks every month.

  • Page 11: Lifetime Limited Warranty

    If the purchaser cannot provide proof of purchase, the Warranty is limited to two years from the manufacturing date as confirmed by the product’s serial number. The purchaser of this ASTROSTART product shall return the product for warranty service, freight prepaid, to the address indicated on the back of this document.
  • Page 12 ASTROFLEX Inc. Customer Service 1164 Route 220 Ste-Élie D’orford (Québec) CANADA J0B 2S0...
