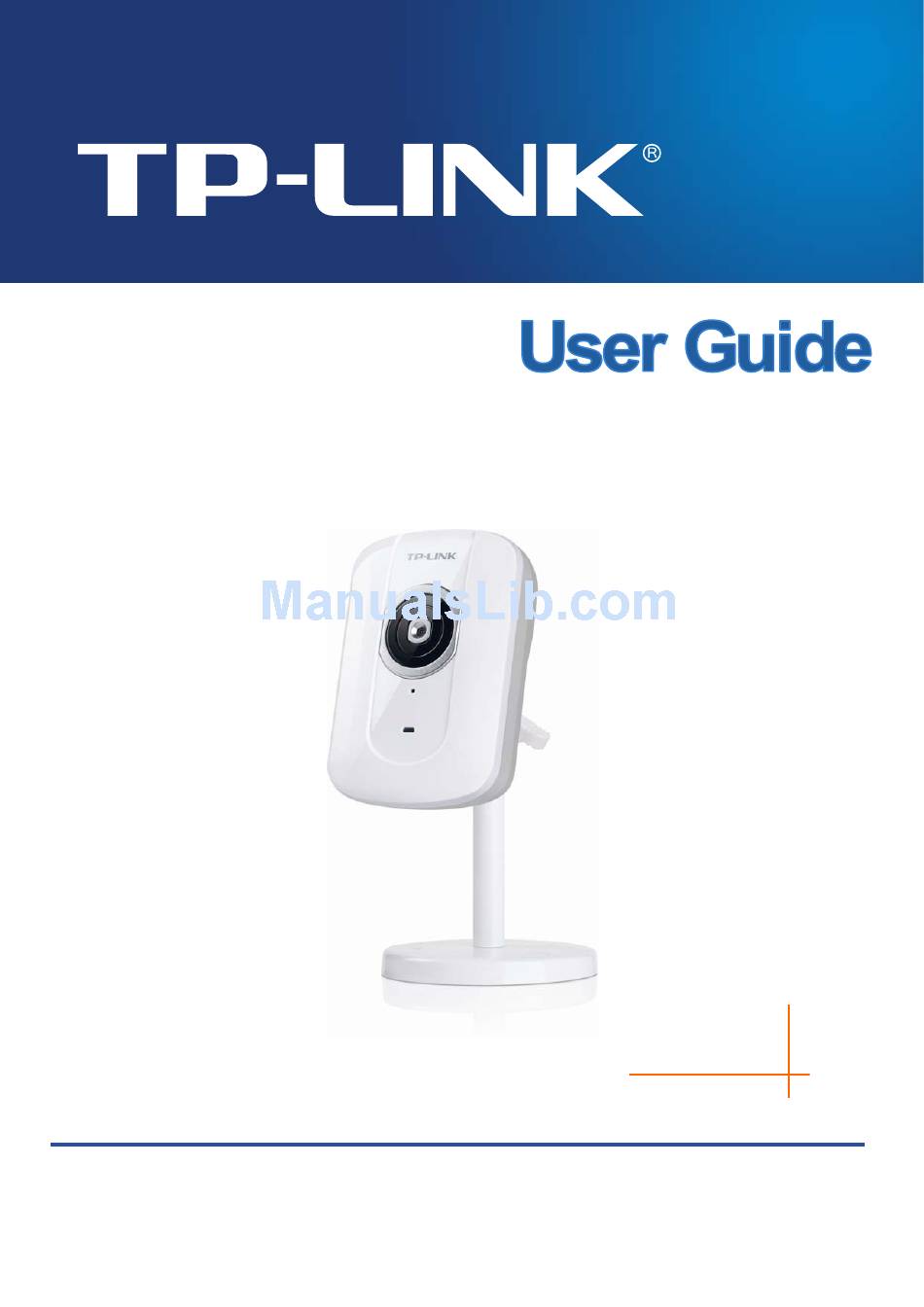

- Page 1 TL-SC2020 Wired Network Camera Rev: 1.0.0 1910010670...
- Page 2 Specifications are subject to change without notice. is a registered trademark of TP-LINK TECHNOLOGIES CO., LTD. Other brands and product names are trademarks or registered trademarks of their respective holders. No part of the specifications may be reproduced in any form or by any means or used to make any derivative such as translation, transformation, or adaptation without permission from TP-LINK TECHNOLOGIES CO., LTD.
-
Page 3: Fcc Statement
FCC STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to pro-vide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not in-stalled and used in accordance with the instructions, may cause harmful interference to radio communications. -
Page 4: Declaration Of Conformity
TP-LINK TECHNOLOGIES CO., LTD DECLARATION OF CONFORMITY For the following equipment: Product Description: Wired Network Camera Model No.: TL-SC2020 Trademark: TP-LINK We declare under our own responsibility that the above products satisfy all the technical regulations applicable to the product within the scope of Council Directives: Directives 2004 / 108 / EC, Directives 2006 / 95 / EC, Directives 2011/65/EU The above product is in conformity with the following standards or other normative documents：... -
Page 5: Table Of Contents
CONTENTS Package Contents......................3 Chapter 1 Safety Instructions..................4 Chapter 2 Minimum System Requirement & Product Feature........5 2.1 System Requirement ......................5 2.2 Product Features ......................5 2.3 Physical Overview ......................6 2.3.1 Front View ....................... 6 2.3.2 Rear View ........................ 7 2.4 Mount the Camera ...................... - Page 6 5.3.7.3 FTP......................31 5.4 System..........................33 5.4.1 Initialize........................34 5.4.2 Date Time ......................35 5.5 Language........................36 Appendix ........................37 A. Frame-rate and Bitrate Table – Help to set Camera with your network environment to access Internet........................37 B. Storage Requirement Table - Help to set Recording Storage System....... 37 C.
-
Page 7: Package Contents
Package Contents The following items should be found in your package: TL-SC2020 Wired Network Camera Power Adapter Mounting Bracket with three screws, a Lock Ring, a Brace and a Base Plate RJ45 Cable Quick Installation Guide ... -
Page 8: Chapter 1 Safety Instructions
Chapter 1 Safety Instructions Before you use this product This product has been designed with safety in mind. However, the electrical products can cause fires which may lead to serious body injury if not used properly. To avoid such accidents, be sure to heed the following. -
Page 9: Chapter 2 Minimum System Requirement & Product Feature
Chapter 2 Minimum System Requirement & Product Feature 2.1 System Requirement For normal operation and viewing of the network camera, it’s recommended that your system meets these minimum requirements for proper operation: Item Requirements Pentium 4 2.8GHz (or equivalent AMD) Graphic Card 256 MB RAM graphic cards (or equivalent on-board graphic cards) 2 GB RAM... -
Page 10: Physical Overview
TCP/IP, DHCP, PPPoE, ARP, ICMP, FTP, SMTP, DNS, NTP, UPnP, Supported protocols RTSP, RTP, RTCP, HTTP, TCP, UDP Simultaneous Up to 3 users Connection 0°C ~ 40 ℃ (32℉ ~ 104 ℉) Operating conditions HARDWARE Lens F 2.4 fixed lens Audio Output Power 5V DC, 1A... -
Page 11: Rear View
2.3.2 Rear View .3.2 Rear View Power Jack LAN Port RESET Button Base Plate Power Jack: The power connector is where you connect the power adapter. RESET: Press the button for more than 15 seconds, and the Camera will be restored to factory defaults. -
Page 12: Wall And Ceiling Mount
There are three supplied screws for mounting the Camera. The length of the screws is 25±1 mm and the diameter is 4±0.2 mm. 2.4.2 Wall and Ceiling Mount There are two ways to mount the Camera. See the following two pictures. Ceiling Mount Wall Mount To mount the Camera, please follow the steps below:... -
Page 13: Chapter 3 Using Camera Via Web Browser
Chapter 3 Using Camera via Web Browser 3.1 Obtain the IP Address Insert the provided CD into your CD-ROM driver. The Setup Wizard will automatically pop up on your computer’s screen as shown in the figure below. Figure 3-1 Choose the Intelligent IP Installer, and then the next screen appears. Click on Intelligent IP Installer to begin the installation. - Page 14 After the installation is finished, click Start > All Programs > TP-LINK >Intelligent IP Installer to start using the program. Figure The following screen will then display. Click the Search button to search Network Cameras in the network; it displays Network Cameras information including IP Address.
-
Page 15: Windows Web Browser
3.2 Windows Web Browser .2 Windows Web Browser The configuration of browser is similar in Windows XP/Vista/7. Here we take IE browser in Windows XP The configuration of browser is similar in Windows XP/Vista/7. Here we take IE browser in Windows XP for example. - Page 16 The monitor image will be displayed in your browser. In the far left side of main configuration are Home, Information, Basic setup, System and Language.
-
Page 17: Chapter 4 Operating Camera Via Mobile Phone
For 2.5G mobile phone viewing, type “http://<IP>/mobile.htm” into your 2.5G Web Browser. <IP> is the Public IP address of your Camera. 4.2 Using Camera via iPhone You can use TP-LINK Web User Interface via iPhone. Please follow the setting process below. Then you can use TP-LINK Web UI via iPhone. 1. Select Safari function. - Page 18 3. Enter name and password. Default values 4. The TP-LINK User Interface and live image are both admin.Then click Log in will show up in the middle of the screen. Note: It will show continuous snapshots not a real time video streaming.
-
Page 19: Chapter 5 Configuration Of Main Menu
Chapter 5 Configuration of Main Menu In the left side of main configuration are Home, Information, Basic setup, System and Language. 5.1 Home In the right side, you can control Live View in your main Browser. The functions include: Snapshot, Open digital zoom, Audio, and Video Play. -
Page 20: Snapshot
5.1.2 Snapshot You can capture a still image shot by clicking the Camera icon and save it in the operating computer. Symbols Meaning A snapshot window appears after clicking the icon Save Image Save the picture captured by snapshot into your computer Close Return to the view screen 5.1.3 Digital zoom in/out the image via the monitor window... -
Page 21: Information
5.2 Information The Information screen provides the product factory information which includes Product Name, Current Version, Firmware current Date/Time, Image Setting, Video and Network. 5.3 Basic setup This function is only for the Administrator. Click Basic setup to display the submenus: Account, Network, Image Setting, Video, Audio, Camera setting and Events. - Page 22 Add: Click this button to add a new account. Modify: Click this button to edit the selected account. Remove: Click this button to delete the selected account. Anonymous Viewer: Select Disable and the anonymous viewers cannot access the Camera. Select Enable to and the anonymous users can access the Camera in Viewer mode.
-
Page 23: Network
Viewer Mode: Set the user mode among Viewer, Operator and Administrator. Different viewer mode has different limits of authority. The Viewer mode only can view the Live View. The Operator mode can not only view the Live View but also the Information page. ... -
Page 24: Pppoe
Use the following IP address: Select this option when the fixed IP address is set as the IP address. IP address: Enter the IP address of the device. Subnet mask: Enter the subnet mask. Default gateway: Enter the default gateway. ... - Page 25 IP Address: The IP address obtained at the PPPoE connecting with network. User ID: Enter the user ID for authentication necessary for PPPoE connections. Type it up to 64 characters. Password: Enter the password for authentication necessary for PPPoE connections. Type it up to 32 characters.
-
Page 26: Ddns (Dynamic Dns)
details, please refer to 5.4.1 Initialize. You can reset the Camera to its factory default settings by pressing the Reset button. Then the Camera can be found by Intelligent IP Installer. 5.3.2.3 DDNS (Dynamic DNS) DDNS is a system which allows the domain name data held in a name server to be updated in real time. The most common use for DDNS is allowing an Internet domain name to be assigned to a computer with a varying/dynamic IP Address. - Page 27 2. Input all information and follow step by step with DynDNS. 3. Login with new account and click Account → My Hosts → Add Host Services.
- Page 28 4. Type domain in the Hostname field and select sub-domain. 5. After typing information, check your DDNS service...
-
Page 29: Upnp (Universal Plug And Play)
6. Type your DDNS User ID, Password and Host name in Setting → Network → DDNS. After completing setting, reboot the Camera. 5.3.2.4 UPnP (Universal Plug and Play) If you have a Router to access to Internet and the Router supports UPnP IGD function, you need to turn on the UPnP Port Forwarding function. -
Page 30: Image Setting
HTTP Port: Enter the HTTP port number and default HTTP port is 80. SSL Port: Enter the SSL port number and default SSL port is 443. RTSP Port: Enter the RTSP port, default value is 554 for computer view. ... -
Page 31: Video
higher value the saturation is, the more colorful the image will be Sharpness: The value range is 0~100. It applies image processing techniques to adjust the sharpness of live view. However, the higher the value is, more the noise is. ... -
Page 32: Events
Camera Name: You can enter a new name for the Camera. LED: Select On to enable the LEDs; select Off to disable the LEDs. 5.3.7 Events Click Events to display the submenus including Motion detection, e-Mail (SMTP) and FTP. 5.3.7.1 Motion detection There are three Motion Detection functions as sensors to set for different detecting zones. -
Page 33: E-Mail (Smtp)
Motion Detection: Click to select motion detection. Motion Detection 1: Click it on for using Motion Detection 1 function as a sensor. You can adjust and move the detecting zone by using mouse. Motion Detection 2: Click it on for using Motion Detection 2 function as a sensor. You can adjust and move the detecting zone by using mouse. - Page 34 Select On when you use the e-Mail (SMTP) function. The common setting options are displayed below. Select Off, if you do not wish to use the e-Mail (SMTP) function. SMTP Server Name: Type the SMTP server name up to 64 characters, or the IP address of the SMTP server.
-
Page 35: Ftp
up to three recipient E-mail addresses. Administrator E-mail Address: Type t he Administrator e-Mail address up to 64 characters. This address is used for reply mail and sending system messages from the SMTP server. Attached File Type: You can choose snapshot or video clip for alarm sending. Selec t “Snapshot,”... - Page 36 Select On when you use FTP function. The FTP client Setting screen appears. Select Off, when you do not wish to use the FTP client function. Note: The frame rate and operability on the main viewer may decrease while a file is being transmitted by the FTP client function.
-
Page 37: System
Schedule Selection: Select the list box to specify the schedule you want to set. FTP -Alarm / E-mail (SMTP) -Alarm Start Time, End Time: Specify the Start Time and the End Time. Use the same time schedule every day: When this is checked, the Start Time and End Time ... -
Page 38: Initialize
5.4.1 Initialize Reboot: Click this button to reboot this Camera. It takes one minute to complete the reboot process. Factory Default: Click this button to recover this Camera to the factory default setting. A confirmation dialogue will appear and then click “OK” to execute. The network indicator on this Camera will start to blink. -
Page 39: Date Time
5.4.2 Date Time The Date Time screen displays all options of time setting. Current Date / Time: This displays the current date and time of this Camera. PC Clock: This displays the date and time of the monitoring PC clock. ... -
Page 40: Language
5.5 Language Select a language from the drop-down list, the present display language of WEB User Interface will be changed. -
Page 41: Appendix
Appendix A. Frame-rate and Bitrate Table – Help to set Camera with your network environment to access Internet. Base on your network upload environment to choose the suitable Image-Quality setting. For example, if the network environment is ADSL 256Kb (upload) / 2Mb (download), the most fluent Image-Quality needs to set up under 256Kb situation. -
Page 42: System Requirement - Help To Setup System
640*480 4970 51.2 640*480 3162 32.6 640*480 2427 25.0 640*480 1961 20.2 640*480 320*240 3416 35.2 320*240 2270 23.4 320*240 1770 18.2 320*240 1188 12.2 320*240 320*240 320*240 160*120 1493 15.4 160*120 10.2 160*120 160*120 160*120 160*120 160*120 C. System Requirement – Help to setup System Item Requirements Pentium 4 2.8GHz (or equivalent AMD) -
Page 43: Europe - Eu Declaration Of Conformity
Europe – EU Declaration of Conformity This device complies with the essential requirements of the R&TTE Directive 1999/5/EC. The following test methods have been applied in order to prove presumption of conformity with the essential requirements of the R&TTE Directive 1999/5/EC: Clause Description EN 60950-1: 2001... - Page 44 Español Por medio de la presente [nombre del fabricante] declara que el [clase de equipo] [Spanish] cumple con los requisitos esenciales y cualesquiera otras disposiciones aplicables o exigibles de la Directiva 1999/5/CE. Ελληνική ΜΕ ΤΗΝ ΠΑΡΟΥΣΑ [name of manufacturer] ∆ΗΛΩΝΕΙ ΟΤΙ [type of equipment] [Greek] ΣΥΜΜΟΡΦΩΝΕΤΑΙ...
- Page 45 Svenska Härmed intygar [företag] att denna [utrustningstyp] står I överensstämmelse med de [Swedish] väsentliga egenskapskrav och övriga relevanta bestämmelser som framgår av direktiv 1999/5/EG.
-
Page 46: Federal Communication Commission Interference Statement
Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
