TP-Link TL-SC3230 User Manual

Megapixel surveillance camera
Hide thumbs Also See for TL-SC3230:
Table of Contents

Advertisement

Quick Links

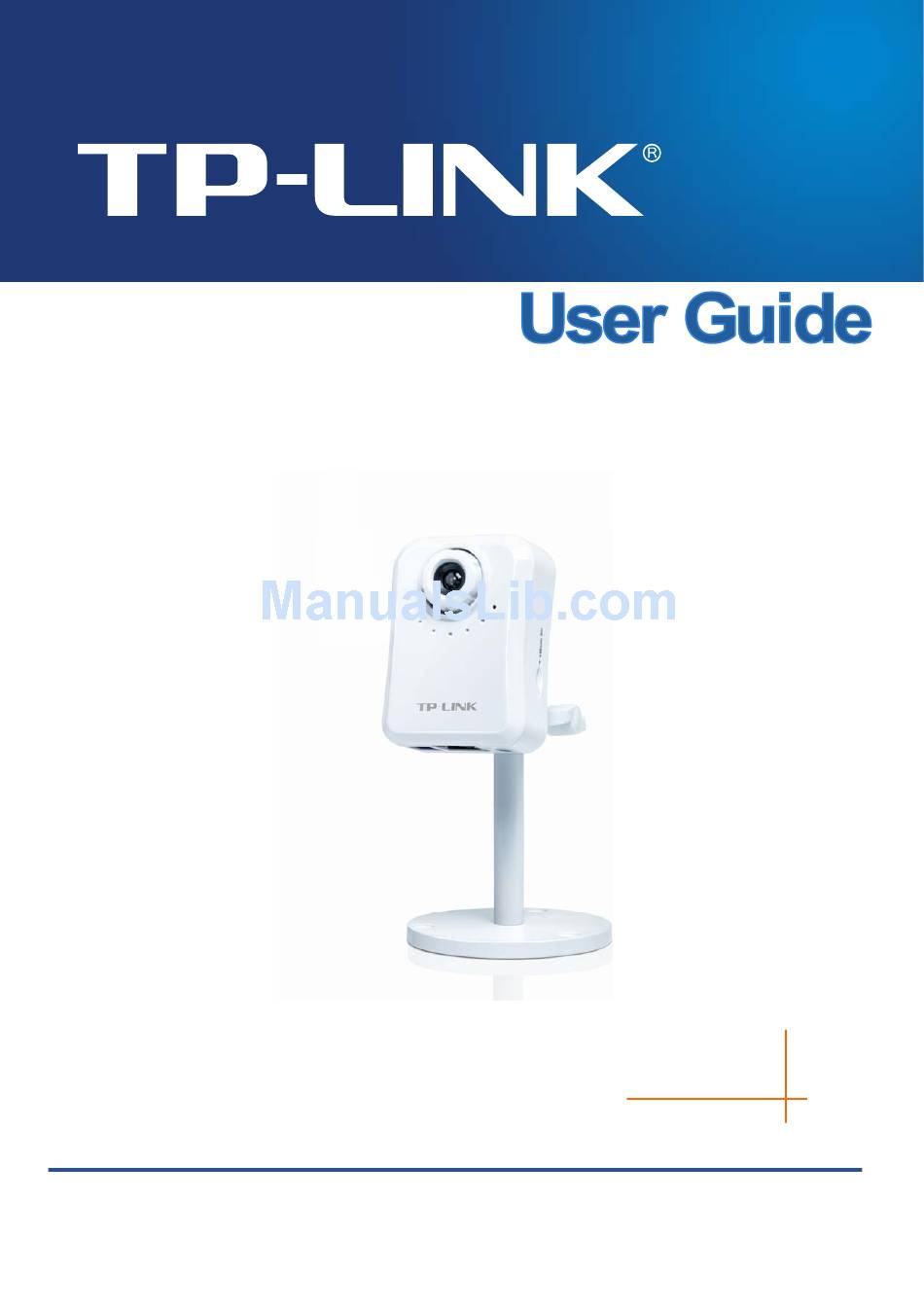

TL-SC3230
Megapixel Surveillance Camera
REV: 1.0.0
1910010755

Advertisement

Table of Contents
loading

Related Manuals for TP-Link TL-SC3230

Summary of Contents for TP-Link TL-SC3230

  • Page 1 TL-SC3230 Megapixel Surveillance Camera REV: 1.0.0 1910010755...
  • Page 2 Specifications are subject to change without notice. is a registered trademark of TP-LINK TECHNOLOGIES CO., LTD. Other brands and product names are trademarks or registered trademarks of their respective holders. No part of the specifications may be reproduced in any form or by any means or used to make any derivative such as translation, transformation, or adaptation without permission from TP-LINK TECHNOLOGIES CO., LTD.

  • Page 3: Fcc Statement

    FCC STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital camera, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
  • Page 4 This product can be used in the following countries:...

  • Page 5: Declaration Of Conformity

    TP-LINK TECHNOLOGIES CO., LTD DECLARATION OF CONFORMITY For the following equipment: Product Description: Megapixel Surveillance Camera Model No.: TL-SC3230 Trademark: TP-LINK We declare under our own responsibility that the above products satisfy all the technical regulations applicable to the product within the scope of Council Directives: Directives 2004 / 108 / EC, Directives 2006 / 95 / EC, Directives 2011/65/EU The above product is in conformity with the following standards or other normative documents：...

  • Page 6: Table Of Contents

    Contents Package Contents..................... 1 Chapter 1 Overview ....................2 1.1 Introduction ....................2 1.2 Features ....................... 2 1.3 Minimum System Requirements..............3 Chapter 2 Physical Description................4 2.1 Front View ....................4 2.2 Bottom View ....................5 Chapter 3 Hardware Installation ................6 Chapter 4 Preparation ..................
  • Page 7 6.3.3 Maintenance ................34 6.4 Video: Configure profile................35 6.4.1 Common ..................36 6.4.2 Video Profile................. 37 6.4.3 ROI ....................38 6.5 Audio: Audio parameters ................39 6.6 User: Manage user name, password and login privilege......39 6.7 E-Mail: Set up E-Mail configuration ............40 6.8 Object detection: Set up Object detection ..........

  • Page 8: Package Contents

    Package Contents The following items should be found in your package: TL-SC3230 Megapixel Surveillance Camera Power Adapter Camera Stand with screws RJ45 Cable Quick Installation Guide Resource CD, including: This User Guide Other helpful information Note: Make sure that the package contains the above items. If any of the listed items is damaged or missing, please contact your distributor.

  • Page 9: Chapter 1 Overview

    Chapter 1 Overview The user guide explains how to operate this camera from a computer. The user should read this manual completely and carefully before operating the camera. 1.1 Introduction This camera is an inexpensive and fully scalable surveillance camera. Because the cameras can be plugged into your existing local area network (LAN), you will potentially save thousands of dollars from unnecessary cabling.

  • Page 10: Minimum System Requirements

    1.3 Minimum System Requirements ~120 120~360 360~540 540~960 960~ (QVGA) Intel P4 Intel P4 Intel Pentium D Intel core 2 Duo Intel core i7 2.4GHz 3.2GHz E8600 2600K 3.4GHZ 3.3GHZ 3.8GHZ or above 512MB 512MB 8GB or above Display 1024x768 resolution or above Support DirectX 9.0c or above Intel 945G or Intel 965G or above Windows XP，Win 7 (32bits or 64bits)

  • Page 11: Chapter 2 Physical Description

    Chapter 2 Physical Description 2.1 Front View Microphone Lens & focus ring Micro SD Card Slot Antenna: The user can attach the included antenna to antenna connector (SMA type) or use another high-gain antenna to get higher performance. This camera has a SMA type antenna. Lens &...

  • Page 12: Bottom View

    2.2 Bottom View LAN LED Power LED DC Power Jack Audio Output Jack Factory LAN Port Default Reset Audio Output Jack: Audio-out Jack allows this camera to output audio or alerting sound. DC Power Jack: The input power is 12VDC. Supply the power to the camera with the power adapter included in package.

  • Page 13: Chapter 3 Hardware Installation

    Chapter 3 Hardware Installation Follow the steps below to mount your camera. Attach the camera with the included stand Place the camera on the table or fix it onto ceiling or wall Use three screws to fix the camera onto the ceiling or wall. You could also put the camera on the table directly.
  • Page 14 Connect the external power supply to camera Connect the attached power adapter to the DC power jack of the camera. Note: Use the power adapter, 12VDC, included in the package and connect it to wall outlet for AC power. Power Cable Once you have installed the camera well and powered it on, the Power LED (orange) will turn on later.

  • Page 15: Chapter 4 Preparation

    Chapter 4 Preparation 4.1 Search and Set up by IP Search When you installed the camera on a LAN environment, you have two easy ways to search your cameras by IP Search or UPnP™ discovery. Here is the way to execute IP Search to discover camera’s IP address and set up related parameter in a camera.

  • Page 16: View

    4.1.2 View If IP Search finds network cameras, View button will be available. Please select the camera you want to view and click the View button. Then you could see the video from camera directly. Furthermore, you could double click the left button of mouse to link to the network camera by browser.

  • Page 17: Upnp Of Windows® Xp, Vista Or 7

    If you do not want to change username and/or password, just click “Submit” button to perform your setting accordingly. Click “<<” button to go back to the previous page. If you like to change username and/or password of the camera, just click the check button. Then, the related fields will show up as below.

  • Page 18: Install The Camera Behind A Nat Router

    Please refer to Appendix I to enable UPnP settings only if your operating system of PC is running Windows XP. Note: Windows 2000 does not support UPnP feature. To discover your camera, go to your Desktop and click My Network Places. Click the targeted camera.

  • Page 19: Access The Camera From The Internet Explorer For The First Time

    Step2: Enable UPnP NAT traversal option of the camera Refer to Setting Network UPnP page for detail NAT traversal setting. Note that this option is enabled by default. 4.4 Access the camera from the Internet Explorer for the first time Start the web browser on the computer and type the IP address of the camera you want to monitor as below: The Login Window of the camera is prompted.

  • Page 20: Logging In As A User

    4.5 Logging in as a User If you log in the camera as an ordinary user, “Setting” function will not be accessible. 4.6 Logging in as an Administrator If you log in the camera as an Administrator, you can perform all the settings provided by the camera.

  • Page 21: Operating The Camera

    Chapter 5 Operating the Camera Start-up screen will be shown as follow no matter you log into the camera as an ordinary user or as an administrator. Monitor Image Section About 2-Way Digital Full Screen Record Snapshot Audio Zoom 5.1 Monitor Image Section The image shot by the camera is shown here.

  • Page 22: Full Screen

    5.5 Full Screen Enlarge video to full screen display. : Enlarge video to full screen display. Press “ESC” key to return to the original screen display. 5.6 Digital Zoom Click to activate this function as above. The user can scroll the mouth over the video to adjust zoom ratio and position.

  • Page 23: Record

    5.8 Record Click the icon to activate this function. Press to start recording. The video file is saved as ASF format into your local PC. While you want to stop it, press Stop to stop recording. Select Browser and the pop-up window will display. Select the save path and file name prefix, and select OK to continue.

  • Page 24: Snapshot

    5.9 Snapshot Click the icon to activate this function. Press to take a picture. The image file is saved as JPEG format into your local PC. Select Browser and the pop-up window will display. Select the save path and file name prefix, and select OK to continue. If you like to retrieve the saved image, select the file to display the saved image by using any one of graph editing tools.

  • Page 25: About

    5.10 About Click the icon to show this ActiveX information.

  • Page 26: Administrating The Camera

    Chapter 6 Administrating the Camera This function is only available for the user logged into camera as administrator. Click on each menu name to display its setting page Item Action Network Configure Network settings such as DHCP, DDNS, 3GPP, PPPoE and UPnP Camera Adjust camera parameters, position, and set camera tour...

  • Page 27: Network

    6.1.1 Network This section provides the menu for connecting the camera through Ethernet cable. MAC address: Displays the Ethernet MAC address of the camera. Note that the user can not modify it. Obtain IP address automatically (DHCP): DHCP: Stands for Dynamic Host Configuration Protocol.

  • Page 28: Https

    user can access the camera by either http://xx.xx.xx.xx/, or http://xx.xx.xx.xx:xxxx/. If multiple cameras are installed on the LAN and also required to be accessed from the WAN, then the HTTP Port can be assigned as the virtual server port mapping to support multiple cameras. Click OK to save and enable the setting.

  • Page 29: Ddns Service

    6.1.3 DDNS service DDNS: Stands for Dynamic Domain Name Server Your Internet Service Provider (ISP) provides you at least one IP address which you use to connect to the Internet. The address you get may be static, meaning it never changes, or dynamic, meaning it’s likely to change periodically.

  • Page 30: Pppoe

    DDNS Host: The domain name is applied of this camera. User name: The user name is used to log into DDNS. Password: The password is used to log into DDNS. Please refer to Appendix for more detailed information. 6.1.4 PPPoE PPPoE: Stands for Point to Point Protocol over Ethernet A standard builds on Ethernet and Point-to-Point network protocol.

  • Page 31: Streaming

    User name: Type the user name for the PPPoE service which is provided by the ISP. Password: Type the password for the PPPoE service which is provided by the ISP. IP address, Subnet mask, and Gateway (read only): Shows the IP information got from PPPoE server site.

  • Page 32: Bonjour

    In addition, this camera also provides UPnP IGD function for NAT traversal easily. Use NAT traversal when your camera is located on an intranet (LAN) and you wish to make it available from the other (WAN) side of a NAT router. With NAT traversal properly configured, all HTTP traffic to an external HTTP port in the NAT router will be forwarded to the camera.

  • Page 33: Onvif

    ongoing standards-creation process. Bonjour: To enable or disable the Bonjour service here. Friendly Name: To show the friendly name of this camera here. 6.1.8 ONVIF ONVIF is a global and open industry forum with the goal to facilitate the development and use of a global open standard for the interface of physical IP-based security products.

  • Page 34: Ip Filter

    ONVIF: To enable or disable the ONVIF interface here. Version: Currently, the V1.0 or V1.01/V1.02/V2.0/V2.1.1 is available. 6.1.9 IP Filter You can enter different users’ IP addresses which are allowed or denied to enter by the camera.

  • Page 35: Ip Notification

    IP Filter: To enable or disable the IP filter function here. IP Filter Policy: Choose the filter policy where is denying or allowing. 6.1.10 IP Notification In case the IP address is changed, system is able to send out an email to alert someone if the function is enabled.
  • Page 36 SMTP Notification (e-mail): If this function is enabled, the “Send to” and “Subject” fields need to be filled. Send To: Type the receiver’s e-mail address. This address is used for mail reply. Subject: Type the subject/title of the E-mail. TCP Notification: If this function is enabled, the “TCP Server“, “TCP Port”, and “Message” fields need to be filled.

  • Page 37: Camera: Adjust Camera Parameters

    Proxy Login Password: Type the password for the HTTP Proxy. Custom parameter: The user can set specific parameters to HTTP server. Message: The message will be sent to HTTP server. 6.2 Camera: Adjust camera parameters Use this menu to set the functions of the camera parameters of the camera. 6.2.1 Picture Rotation: Turn the “Mirror”...

  • Page 38: Privacy Mask

    White Balance: Auto: will adjust the white balance automatically. Hold: will hold the white balance. Exposure Control: Auto: will adjust the internal gain automatically. Hold: will hold the internal gain. Maximum Exposure Time: Set the Maximum Exposure Time. However, the real exposure time may be shorter in good light condition.

  • Page 39: System: Configure And Maintain System

    windows to mask the video captured by this camera. By dragging mouse on the image, you can change the position and size of the selected window accordingly. Name: Name of the specified privacy window. Level: To define the gray level of mask block. The smaller value, the darker. 6.3 System: Configure and maintain system Use this menu to perform the principal settings of the camera.

  • Page 40: Date & Time

    6.3.2 Date & Time You can set up the camera or make it synchronized with PC or remote NTP server. Also, you may select your time zone in order to synchronize time locally. Server Date & Time: Displays the date and time of the camera. PC Time: Displays the date and time of the connected PC.

  • Page 41: Maintenance

    6.3.3 Maintenance Hard Factory Default (Include the network setting): Recall the camera hard factory default settings. Note that click this button will reset all camera’s parameters to the factory settings (including the IP address). Factory Default (Except the network setting): The unit is restarted and most current settings are reset to factory default values.

  • Page 42: Video: Configure Profile

    Once the firmware file was selected, click “Firmware Upgrade” button. The upgrade progress information will be displayed. Once the uploading process completed, the camera will reboot the system automatically. Please wait for timer countdown, and then you can use IP Search to search the camera again.

  • Page 43: Common

    6.4.1 Common Text Overlay Setting: There are some important information can be embedded into image, including date, time, and/or text. The user also can change the font color, background color, or transparency.

  • Page 44: Video Profile

    6.4.2 Video Profile Name: To assign a name to the selected profile. Video Type: Video codec of the selected profile. Resolution: Shows the resolution of the selected profile. ROI: Assign the selected profile as a ROI stream or not. (Only available for the profiles with max resolution) Rate Control: Defines the rate control method of this profile.

  • Page 45: Roi

    Max Frame Rate: Defines the targeted frame rate of this profile. For example, set the frame rate to 30 fps, then the image will be updated for 30 frames per second as possible. The user needs to set reasonable max frame rate versus video quality under the limited bandwidth. GOP Control: Defines the Intra/Inter-frame (I/P) ratio of this profile.

  • Page 46: Audio: Audio Parameters

    6.5 Audio: Audio parameters Audio: To enable or disable audio function Audio Type: To select audio codec Audio Mode: To select Simplex or Full duplex (2-way audio) mode Input Gain: To adjust gain of input audio Output Gain: To adjust gain of output audio 6.6 User: Manage user name, password and login privilege Use this menu to add, update, or remove the usernames and passwords of the Administrator and viewer.

  • Page 47: E-Mail: Set Up E-Mail Configuration

    Viewer login: Select “Anonymous” to allow all users to view the video as long as they are connected. Otherwise, only users in database can view the video after login. Access Right: Administrator can access every function in this camera. However, viewers only can view the video and access limited function.

  • Page 48: Object Detection: Set Up Object Detection

    SMTP Server: Type the SMTP server name or the IP address of the SMTP server. Test: Send a test mail to mail server to check this account is available or not. SMTP Port: Set port number of SMTP service. SSL: Enable SSL function or not. SMTP Authentication: Select the authentication required when you send an e-mail.

  • Page 49: Storage: Status And Configuration Of Sd Card

    Add and Del: To add or delete the motion windows. The user can specify up to 10 Included and/or Excluded windows to monitor the video captured by this camera. By dragging mouse on the image, you can change the position and size of the selected motion window accordingly.

  • Page 50: Sd Card

    6.9.1 SD Card Enable automatic disk cleanup: Delete old recorded files while the conditions are reached as below. Remove recordings order than: Delete old files by days. Remove oldest recordings when disk is: Delete old files by left capacity. 6.9.2 SAMBA Server The camera can send video stream to specified SAMBA server.

  • Page 51: Continuous Recording

    SAMBA Host: Type the IP address of the SAMBA server. Share: Type the video storage destination on the SAMBA server. SAMBA username: Type the user name to login the SAMBA server. SAMBA Login Password: Type the password to login the SAMBA server. 6.10 Continuous Recording The camera provides continuous video recording feature to store camera video clip to SD card or samba server in local network.

  • Page 52: Recording List: Files List Inside The Sd Card/Samba Server

    Disable / Enable: Enable or disable the continuous recording feature in camera. Record File Type: Select video profile to be used in video recording. Please note that max. 5 minutes of video can be recorded. Disk: Select SD card or SAMBA server as recording destination. Path: Type the password to login the SAMBA server.
  • Page 53 This page shows the event triggered or scheduled recorded video files list in SD card or on the samba server. The user may play or delete the selected file.

  • Page 54: Event Server: Set Up Ftp/Tcp/Http/Samba Server Configuration

    6.12 Event Server: Set up FTP/TCP/HTTP/SAMBA server configuration 6.12.1 FTP Server You may set up FTP parameters for further operation of Event Schedule. That’s, if users want to send the alarm message to an FTP server, it will need to configure parameters here and also add at least one event schedule to enable event triggering as SMTP.

  • Page 55: Tcp Server

    6.12.2 TCP Server In addition to send video file to FTP server, the camera also can send event message to specified TCP server. Name: The user can specify multiple TCP servers as wish. Therefore, the user needs to specify a name for each TCP server setting. TCP Server: Type the server name or the IP address of the TCP server.

  • Page 56: Samba Server

    Name: The user can specify multiple HTTP servers as wish. Therefore, the user needs to specify a name for each HTTP server setting. URL: Type the server name or the IP address of the HTTP server. Test: Check the HTTP server whether it is available or not. HTTP Login name: Type the user name for the HTTP server.

  • Page 57: Event Schedule: Configure The Event Schedule

    Name: The user can specify multiple HTTP servers as wish. Therefore, the user needs to specify a name for each HTTP server setting. SAMBA Server: Type the server name or the IP address of the SAMBA server. Test: Check the SAMBA server whether this account is available or not. SAMBA Login name: Type the user name for the SAMBA server.
  • Page 58 Name: Name of the Event or Schedule. Enable: Enable or disable this Event or Schedule. Type: Event trigger or Schedule trigger. Enable Time: Define the feasible time slot. Trigger by: Select the triggered sources. Action: Define the actions once event triggered. Example 1: Send file to FTP server by motion triggered always: Select event trigger...
  • Page 59 Example 2: Send file to E-Mail server by motion triggered from Friday 18:00 to Saturday 06:00 Select event trigger. Enable time: start from Friday 18:00 and keep work in 12 hours, so it will stop on Saturday 06:00. Trigger by : Motion Area (Added in Object Detection page) Action : Send e-mail (Add in E-Mail page) To email address: You need to input the receiver email address.
  • Page 60 Example 3: Enable Voice Alert every 10-minute during 18:00 to 24:00 from Monday to Friday. Type: Select schedule trigger and interval is 10-minute. Enable time: Select Monday to Friday, and set start time from 18:00 and keep work in 6 hours.

  • Page 61: Record

    6.13.2 Record The user can choose the type of record file for event or schedule application.
  • Page 62 Record File Type: Choose a profile to record. Record File Prefix: Define the prefix of recorded filename. JPEG Picture Numbers: Define the picture numbers of JPEG to be sent out. (by mode) Pre-Trigger Duration: Define the maximum duration of pre-alarm. Best Effort Duration: Define the best effort duration of post-alarm.

  • Page 63: Appendix A: Troubleshooting & Faq

    Appendix A: Troubleshooting & FAQ Question Answer or Resolution Features camera utilizes H.264, MPEG4 JPEG triple compression to provide high quality images. H.264 and MPEG4 video audio are standards for video compression and JPEG is a standard for codec is adopted in the image compression.
  • Page 64 Re-power the camera if the program cannot find the unit within 1 minute. Do not connect camera over a router. IP Search program cannot detect camera over a router. If IP address is not assigned to the PC which running IP Search program Search program, then IP Search program cannot find camera.
  • Page 65 The port number assigned in your camera might not be available via Internet. Check your ISP for available port. The proxy server may prevent you from connecting directly to the camera, set up not to use the proxy server. Confirm that Default Gateway address is correct. The router needs Port Forwarding feature.
  • Page 66 Check the bandwidth of Internet connection. If the Internet bandwidth is lower than target bit rate, the video streaming will not work correctly. Use the operating system of the selected language. Set the unreadable Encoding or the Character Set of the selected language on the characters are displayed.
  • Page 67 around the camera brighter. The video images might be noisy if the camera is located in a Noisy images occur. very low light environment. Make the condition around the camera brighter or turn the White-light LED on. Miscellaneous Have installed Microsoft®’s DirectX 9.0 or later and use the Cannot play the recorded Windows Media Player 11.0 or later to play the AVI filed ASF file...

  • Page 68: Appendix B: Ping Ip Address

    Appendix B: PING IP Address The PING (stands for Packet Internet Groper) command is used to detect whether a specific IP address is accessible by sending a packet to the specific address and waiting for a reply. It’s also a very useful tool to confirm the camera installed or if the IP address conflicts with any other cameras over the network.

  • Page 69: Appendix C: Bandwidth Estimation

    Appendix C: Bandwidth Estimation The frame rate of video transmitted from the camera depends on connection bandwidth between client and server, video resolution, codec type, and quality setting of server. Here is a guideline to help you roughly estimate the bandwidth requirements form your camera. The required bandwidth depends on content of video source.

  • Page 70: Appendix D: Specifications

    Appendix D: Specifications Camera WLAN Image Camera 1.3 Mega-pixel image sensor Effective Pixels 1280 x 1024 pixels Sensitivity 1.0V/lux-sec Lens 4.3mm IP Module Video Video Encoder H.264, MPEG4 and Motion JPEG simultaneously (Tri-encoders) Video Profile 8 profiles simultaneously (including 3GPP profile) Frame Rate Up to 30fps for all resolutions AE, AWB...
  • Page 71 Power Consumption RJ-45 10BaseT/100BaseTX DC power jack Connectors Audio out Factory default reset Micro SD card (Max 32GB, Class 6) Indication LED Green and orange LEDs Operating 0°C to 40°C (32°F to 104°F) Temperature Operating Humidity 20% ~ 80% (non-condensing) Dimension HxWxD:74.5 x 52.6 x 35..0 (mm) Viewing System...

  • Page 72: Appendix E: Configure Port Forwarding Manually

    Manually set up the camera with a fixed IP address, for example, 192.168.0.100. (2) Access the Router with Your Web browser The following steps generally apply to any router that you have on your network. The TP-LINK TL-WR841ND is used as an example to clarify the configuration process. Configure the initial settings of the router by following the steps outlined in the router’s Quick Installation Guide.
  • Page 73 Your WAN IP Address will be listed here. Note: Because a dynamic WAN IP can change from time to time depending on your ISP, you may want to obtain a Static IP address from your ISP. A Static IP address is a fixed IP address that will not change over time and will be more convenient for you to use to access your camera from a remote location.
  • Page 74 the video from the camera over the Internet. The router connects to the Internet over a series of numbered ports. The ports normally used by the camera are blocked from access over the Internet. Therefore, these ports need to be made accessible over the Internet. This is accomplished using the Virtual Server function on the router.

  • Page 75: Appendix F: Ddns Application

    Appendix F: DDNS Application 1. Preface If you have a Cable modem or xDSL, this is a great way to host your own camera or other TCP/IP Service. Get your own domain like www.yourname.com, www.yourname.com.tw etc. (Note: This domain must be registered with Internic via registration authorities such as Network Solutions, DirectNIC, Register.com etc).
  • Page 76 (3) After the columns show up at the left side, click “Create Account”. (4) Fill the application agreement and necessary information. Username E-mail address and confirmation Password and confirmation...
  • Page 77 Submit all the input information and finish creating an account Click these two options (5) Check your e-mail mailbox. There will be an e-mail with a title “Your DynDNS Account Information“. Click the hyperlink address to confirm the DDNS service that you just applied.
  • Page 78 Then DDNS you applied activated. Click to confirm (6) Enter the web page http://www.dyndns.org/ again. Input your username and password that you just applied to login administration interface of DDNS server. Input your account (7) If the correct username and password are input, you can see the following picture at the...
  • Page 79 top-right of the login page. (8) Click the “Services”. (9) Click the “Dynamic DNS ”. (10) Click the “Get Started”.
  • Page 80 (11) We could create a domain name without any charge at this step. First, we input the host name. (Pink No.1) Then we pick a domain that is easy to remember. (Pink No.2) The 3 step is to click “Offline Hostname” from Service Type. (Pink No.3) Finally, click the “Create Host”...
  • Page 81 access the DDNS and PPPoE pages. After saving the modification, restart the camera. Then the external users could browse the Networked camera by the input of their domain name.

  • Page 82: Appendix G: Power Line Frequency

    Appendix G: Power Line Frequency Country Voltage Frequency Comments *Neutral and line wires are reversed from Argentina 220V 50 Hz that used in Australia and elsewhere. *Outlets typically controlled by adjacent switch. Australia 230V* 50 Hz Though nominal voltage been officially changed to 230V, 240V is within tolerances and commonly found.

  • Page 83: Appendix H: 3Gpp

    Appendix H: 3GPP To use the 3GPP function, in addition to previous section, you might need more information or note that to use the 3GPP function, it configuration to make this function work. Please strongly recommends to install the camera with a public and fixed IP address without any firewall protection.

  • Page 84: Appendix I: Enable Upnp Of Windows Xp

    Appendix I: Enable UPnP of Windows XP Use the following steps to enable UPnP settings only if your operating system of PC is running Windows XP. Go to Start > Settings. Click Control Panel Click Add or Remove Programs...
  • Page 85 Click Add/Remove Windows Components The following screen will appear: Select Networking Services Click Details...
  • Page 86 Select Universal Plug and Play Click OK Click Next...
  • Page 87 Please wait while Setting up configures the components. Click Finish...
