Configure the settings relating to the alarm output terminal [Alarm]

Click the [Alarm] tab on the "Alarm" page. ( pages 20 and 21: How to display/operate the setup menu)
The settings relating to the alarm output terminal can be configured in this section. The settings for the alarm output
terminal can be configured only when "Alarm output" is selected for "Terminal 2" of "Alarm". Refer to pages 54 and
55 for further information about the settings relating to the alarm action, and the alarm image.

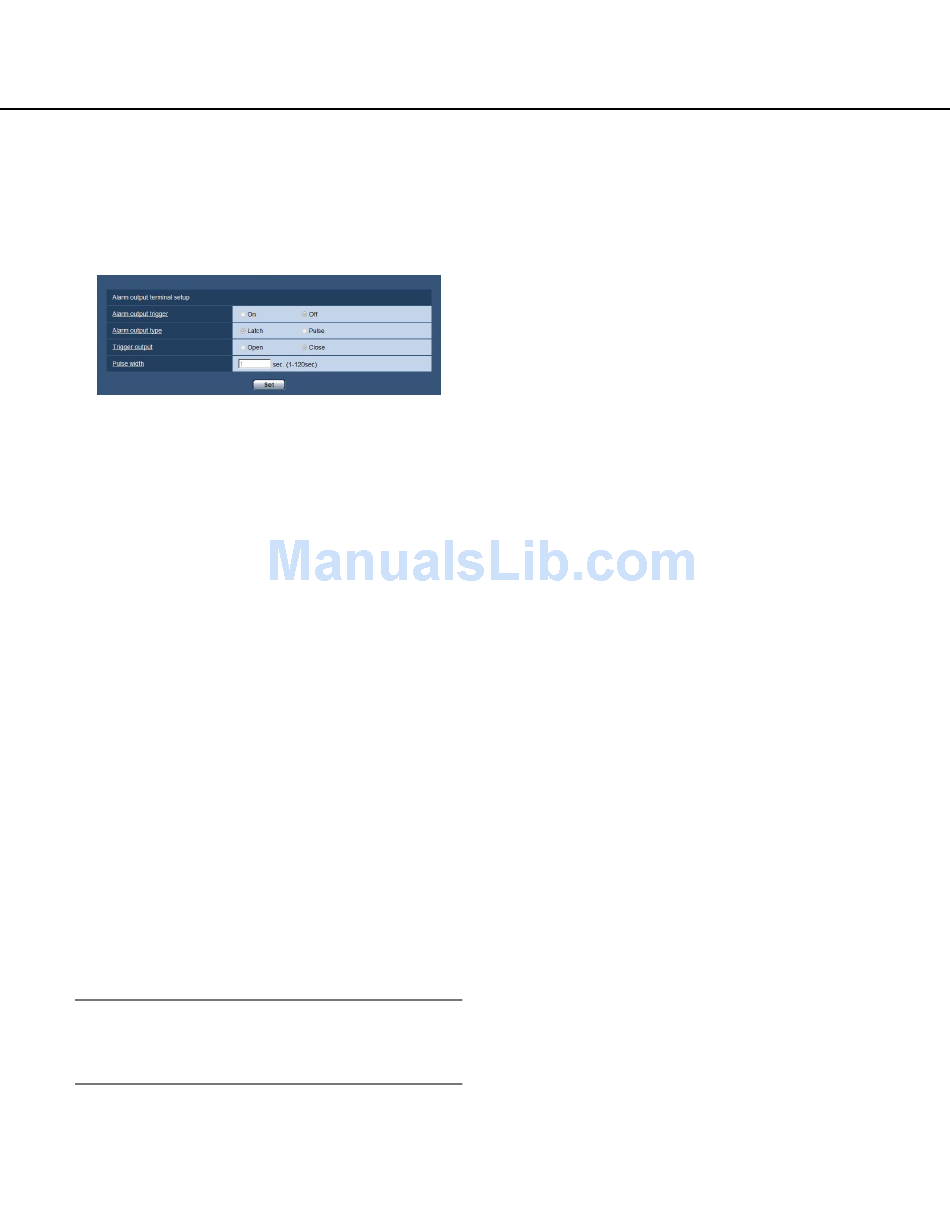

I Alarm output terminal setup
[Alarm output trigger]
Select "On" or "Off" to determine whether or not to out-
put the alarm signals to the alarm output terminal when
an alarm is detected.
Default: Off
[Alarm output type]
Select "Latch" or "Pulse" for the alarm output terminal at
an alarm occurrence.
Latch: When an alarm is detected, the alarm output ter-
minal will be in the state selected for "Trigger output"
until the alarm occurrence indication button is
clicked.
Pulse: When an alarm is detected, the alarm output ter-
minal will be in the state to the "Trigger output" set-
ting for the period set for "Pulse width".
Default: Latch
[Trigger output]
Select "Open" or "Close" to determine whether to open
or close the alarm output terminal when outputting the
alarm signals.
Open: The alarm output terminal will open when out-
putting the alarm signals. (Normally close)
Close: The alarm output terminal will close when out-
putting the alarm signals. (Normally open)
Default: Close
Note:
• When "Open" is selected, the alarm signal will be
output for around 20 seconds when the power of the
camera is turned on.
[Pulse width]
When "Pulse" is selected for "Alarm output type", select
an alarm output terminal duration from the following.
Available range: 1 - 120sec
Default: 1sec
