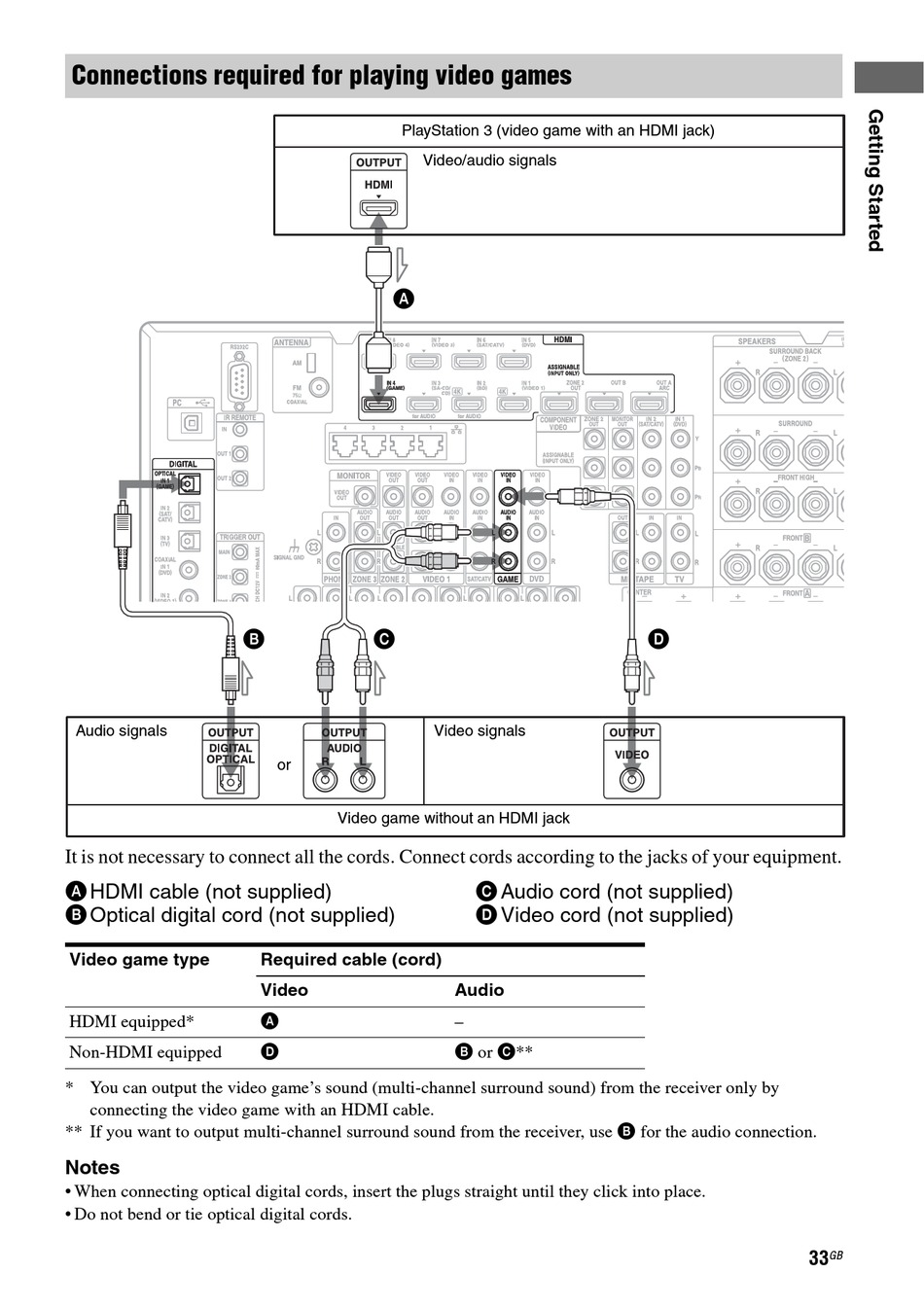

Connections required for playing video games
Audio signals
It is not necessary to connect all the cords. Connect cords according to the jacks of your equipment.
A HDMI cable (not supplied)
B Optical digital cord (not supplied)
Video game type
HDMI equipped*
Non-HDMI equipped
* You can output the video game's sound (multi-channel surround sound) from the receiver only by
connecting the video game with an HDMI cable.
** If you want to output multi-channel surround sound from the receiver, use B for the audio connection.
Notes
• When connecting optical digital cords, insert the plugs straight until they click into place.
• Do not bend or tie optical digital cords.
PlayStation 3 (video game with an HDMI jack)
A
B
C
or
Video game without an HDMI jack
Required cable (cord)
Video
A
D
Video/audio signals
Video signals
C Audio cord (not supplied)
D Video cord (not supplied)
Audio
–
B or C**
D
