Aiphone WP100A Specifications

WP100A
Wireless Roamer Telephone Interface for the MC and TD-H
DESCRIPTION:
The WP100A Wireless Roamer integrates a
cordless telephone with the MarketCom intercom
and paging system. From the cordless phone, a
person can answer a page and talk to someone
on the intercom, as well as answer incoming phone
calls and make outgoing calls. A call can be placed
from any MC-60/4 to the cordless phone directly
without having to make an overhead page.
The Wireless Roamer also works with the TD-H/B
telephone-type paging and intercom system. Four
channels are available for selective calling from
the phone to the intercom system, as well as
access to the paging and phone systems.

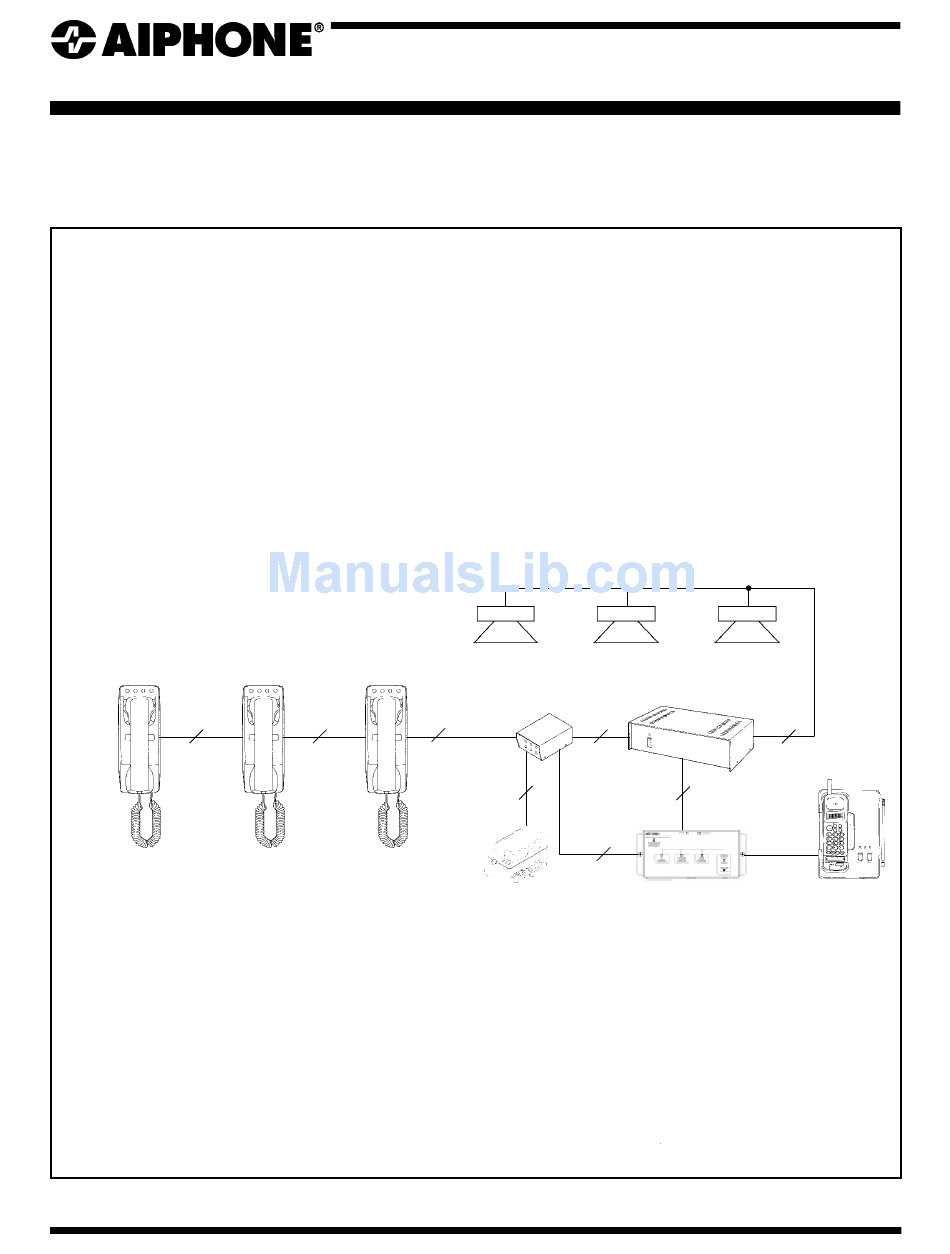

SYSTEM LAYOUT EXAMPLE:
MC-60/4A MC-60/4A
7
SPECIFICATIONS:
Power Source:
Phone Output:
PA Output:
Wiring Requirements:
Mounting:
Dimensions:
Aiphone Communication Systems • 1700 130th Ave. N.E. • Bellevue, WA 98005
(425) 455-0510 • FAX: (425) 455-0071 • (800) 692-0200 • www.aiphone.com
MC-60/4A
7
24V AC. Use AC adaptor provided.
Analog port
600 ohm balanced
7 conductors from intercom to WP100A. Use Aiphone #852207.
(7 conductors is maximum, utilizing all four talk channels available.)
2 conductors shielded from WP100A to paging amplifier. Use Aiphone #822202.
8 conductor phone cable from WP100A to RJ31X phone jack.
2 conductors from RJ31X to analog port on phone system.
2 conductors from RJ31X to RJ11 phone jack, where cordless phone is connected.
Wall or shelf mount
5-9/16"H x 10-3/16"W x 1-3/8"D
FEATURES:
• Cordless phone interface with MC-60/4 and TD-H/B
• Call and talk between intercom and cordless phone
• Four channels of communication between phone and
intercom system
• Access to paging system from the cordless phone
• 900MHz phone (ANA9500) available from Aiphone
• Any cordless phone can be used
• Connect cordless phone to a dedicated line or analog
port on a phone system
Speakers
MC-A/A
7
2
2
7
PS-24E
- 74 -
Accessories
Amplifier
2
2
WP100A
ANA9500
