2 SafeCom Go Ricoh
2.2.2

Legacy devices Type B

Install the VM Card (SD card) that was supplied by Ricoh:
1. Press the operation switch to turn off power. Wait for the On indicator to
go off (stop blinking) and then turn off the main power switch. Disconnect
the power cable.
2. Locate the printer's SD card slots (typically located at the rear of the
printer near the RJ-45 network socket). On some printers you have to
remove a plastic cover first.
3. Insert the SD card labeled VM Card in SD card slot 2 or 3.
Install the supplied SafeCom Ricoh SD ID Kit:
4. Insert the SafeCom Ricoh SD Card into an available SD slot. Insert the
SafeCom Ricoh SD ID Kit in an available interface board slot.
5. Connect the white female connector at the end of the cable to the
corresponding male 8-pin connector on the SafeCom Ricoh SD Card. It
only fits in one way.
6. Connect the external power supply (5V, 1.0A) to the SafeCom Ricoh SD ID
Kit.
Install MFP cable and/or SafeCom ID Device:
7. Connect the SafeCom MFP cable's white 4-pin connector to the Ricoh
MFP's FIH connector. The FIH connector is typically located on the right
side of the MFP behind a plastic cover. Connect the blue PS/2 connector
to the serial port of the SafeCom Ricoh SD ID Kit. If a serial SafeCom ID
Device was supplied connect it to the black female connector of the
SafeCom MFP cable. If there is no MFP cable then connect the ID Device
directly to the serial port of the SafeCom Ricoh SD ID Kit. If the Type C
MFP has a USB port (extra Ricoh accessory) a USB SafeCom ID device can
be used. However, the SafeCom Ricoh SD ID Kit still needs to be installed
to have copy control.
Reconnect power:
8. Connect the power cable. Turn on the main power switch. Press the
operation switch to turn on power.
9. The printer's control panel displays Please wait... for 30 seconds.
Proceed to section 2.3.
D60703-17

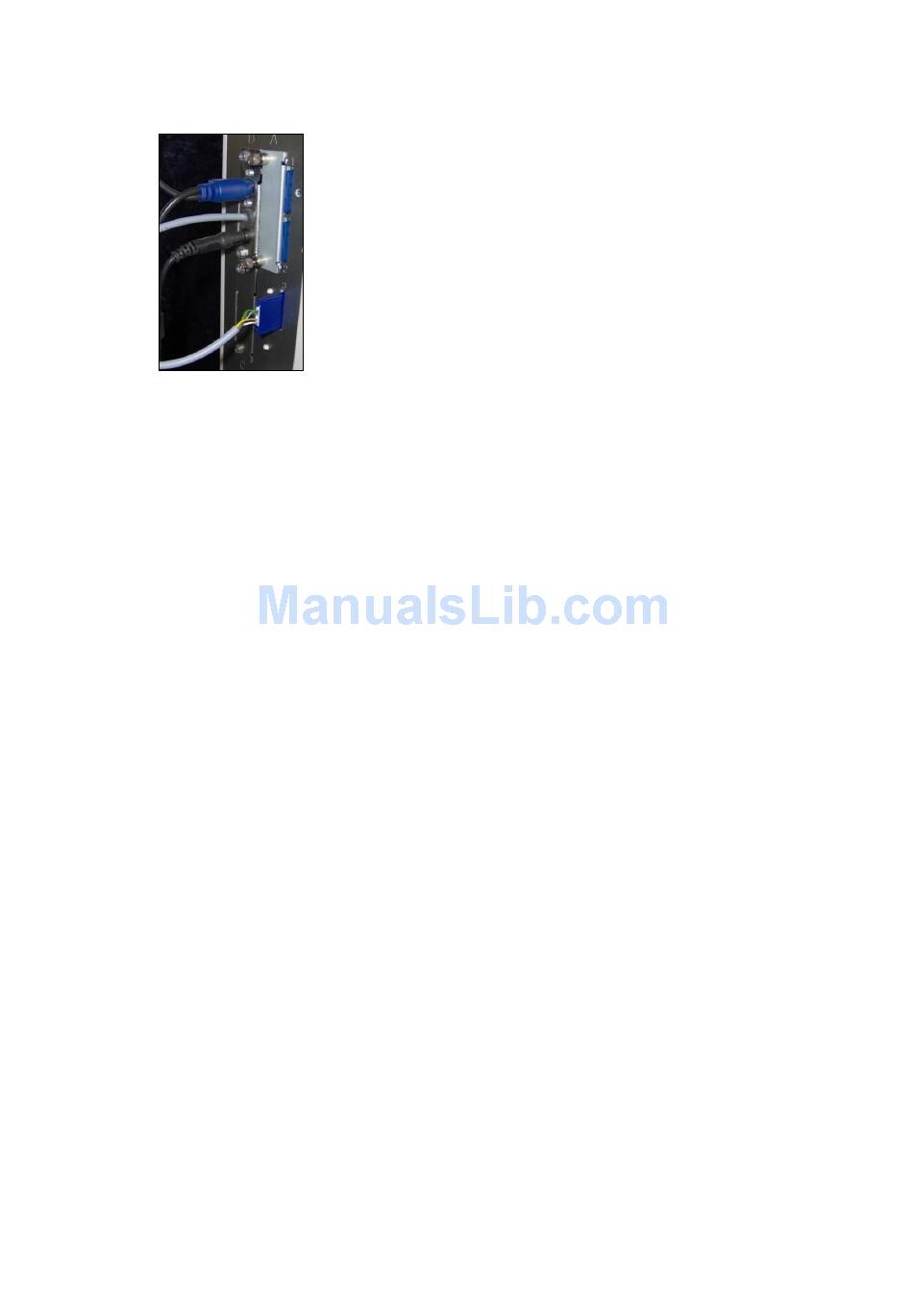

SafeCom Ricoh SD ID Kit
mounted on Type B device.
