Advanced technology for cooling the world's fastest CPUs
If you're serious about high-performance computing and overclocking, you already know that
you've got to keep your PC's processor cool. In order to do this you need a CPU cooler that not
only outperforms your current heatsink, but also does it quietly.

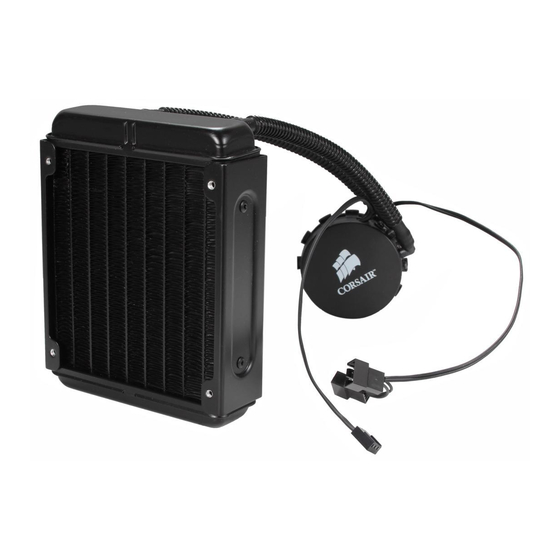

The Hydro Series H70 has been designed to deliver exceptional levels of cooling performance, and
to provide significant headroom for overclocking your processor, quietly and reliably.
The Hydro Series H70 is an evolution of the award-winning Hydro Series H50, with several
significant upgrades that enable it to deliver even greater cooling performance. These upgrades
include a thicker 120mm radiator unit (50mm) with a higher heat-exchanging capacity, and a more
efficient, low-profile pump/cold-plate unit that can soak up more heat and provide even lower
CPU temperatures. The Hydro Series H70 also features two speed-switchable 120mm cooling fans
in a push-pull configuration to provide powerful cooling airflow at low noise levels.
The Hydro Series H70 is compatible with all current CPU socket designs, including Intel LGA775,
LGA1156 and LGA1366, and AMD Socket AM2 and Socket AM3.
Corsair Cooling Hydro Series H70 Specifications
Radiator
Dimensions
Fan Dimensions
Fan Speeds
Air Flow
Static Pressure
Noise Level
CWCH70 - Corsair Hydro Series H70
120 x 50mm
120 x 25mm (per fan)
1600 or 2000 RPM
50.35 – 61.2 CFM (per fan)
1.8 – 2.3mm H2O (per fan)
26 – 31.5 dBA (per fan)
©2010 Corsair Memory, Inc. All Rights Reserved. Document Number: 49-00087
FEATURES and TESTING GUIDE: October 13, 2010
120mm Radiator (50mm thickness)
Dual 120mm fans in Push-Pull
AMD AM2/AM3, Intel 775, 1156, 1366
Low profile pump & copper cold plate
Sealed and pre-filled. No maintenance.
Corsair Hydro Series H70
Page 1 of 8

Advertisement

loading

Related Manuals for Corsair CWCH70

Summary of Contents for Corsair CWCH70

  • Page 1 50.35 – 61.2 CFM (per fan) Static Pressure 1.8 – 2.3mm H2O (per fan) Low profile pump & copper cold plate Noise Level 26 – 31.5 dBA (per fan) Sealed and pre-filled. No maintenance. ©2010 Corsair Memory, Inc. All Rights Reserved. Document Number: 49-00087...

  • Page 2: Key Features

    The fans are speed-switchable between 2000rpm for maximum cooling performance and overclocking flexibility, for enthusiasts who want to push their CPUs to the limit, and 1600rpm for those who want a balance between powerful cooling performance and low sound levels. ©2010 Corsair Memory, Inc. All Rights Reserved. Document Number: 49-00087...
  • Page 3 Lower weight and bulk – puts minimal stress on the motherboard and makes it easier to fit Compact cooling block – more flexible installs; doesn’t impede other components, such as RAM The Corsair Hydro H70 offers higher cooling performance, lower noise and better overall system reliability compared to competing premium CPU cooling solutions.
  • Page 4 There are two options for configuring the airflow of the Corsair Hydro Series H70 when you install it into your chassis. The approach recommended by Corsair is to install the fans so that they draw in cool air from outside the chassis. This ensures that the delta between the air temperature and the temperature of the radiator is maximized, which increases cooling performance according to Newton’s Law of Cooling.

  • Page 5: Performance Testing

    Temperature-logging software Everest Ultimate Everest Ultimate includes the facility to log the temperatures of each CPU core in your processor. A free trial version is available at http://www.lavalys.com/ ©2010 Corsair Memory, Inc. All Rights Reserved. Document Number: 49-00087...

  • Page 6: Running A Test

    CPU cores from the checkmark list and Hit OK. Logging CPU temperature data using Everest Ultimate Edition 2. Use a stand-alone thermometer or other temperature measuring device to log room temperature. This is the AMBIENT temperature (tAM). ©2010 Corsair Memory, Inc. All Rights Reserved. Document Number: 49-00087...
  • Page 7 Calculate the average CPU temperature using the function “=average (data range)”. This is tAV Calculate the Delta T. a. Calculate the CPU DeltaT using the formula tAV - tAM = DeltaT ©2010 Corsair Memory, Inc. All Rights Reserved. Document Number: 49-00087...

  • Page 8: Cpu Temperature

    The following results are indicative of the level of performance that you should expect to see from the Corsair Hydro Series H70 CPU cooler at full fan speeds. If your results differ significantly from those shown in the graph below then please contact your local Corsair representative to discuss the results before publishing your review.
