HP StorageWorks 7110 - Virtual Array Instructions

Instructions for the HP SureStore VA7100
Deskside Assembly Conversion Kit
NOTE: Install the HP SureStore Virtual Array 7100 into the Deskside Assembly before installing the
disk drives and power modules, cabling it up, connecting the array to power, and connecting to the host.
For more information, see the Quick Start Guide (customer order part no. A6183-90901).
NOTE: If you are converting a field-rackable unit that is already racked, please see the Quick Start Guide.
(To uninstall, reverse the rack installation instructions given in the Quick Start Guide.)
1. Check the following conversion kit contents
(Figure 1). If any parts are missing, call your
nearest HP sales office.
Deskside Conversion Kit:
•
Quick Start Guide (A6183-90901)
•
Installation Guide (A6196-96001)
•
Deskside Assembly (A6196-60001)
-
Cover
-
End-cap
-
Base
•
Hardware Kit (A6196-60002)
-
10 x M5 Screws
Tools required:
•
Torx T10 driver
•
Torx T25 driver
2. Follow the instructions provided in the Quick Start
Guide to unpack and disassemble the array.
Be sure to remove the drives and the power modules from the array chassis before installing
WARNING!
the array chassis in the deskside assembly. D
To avoid damage to the modules and possible injury to the persons installing the deskside assembly,
the array chassis must be empty of everything except the controllers before converting to a deskside
configuration.

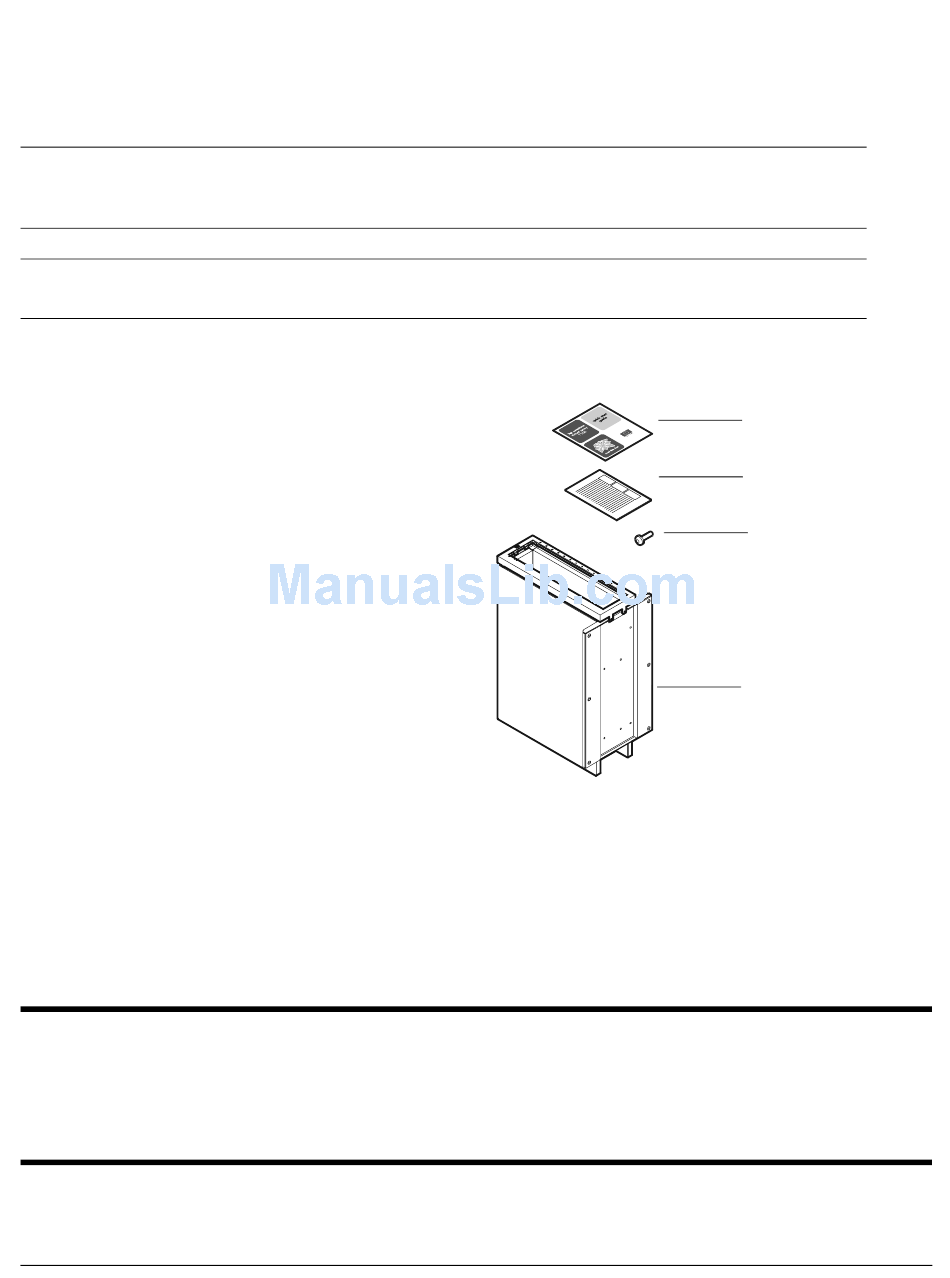

Figure 1
N
O OT REMOVE THE CONTROLLERS
Quick Start Guide
Installation Guide
10 x M5 Screws
Deskside Assembly
.
1
