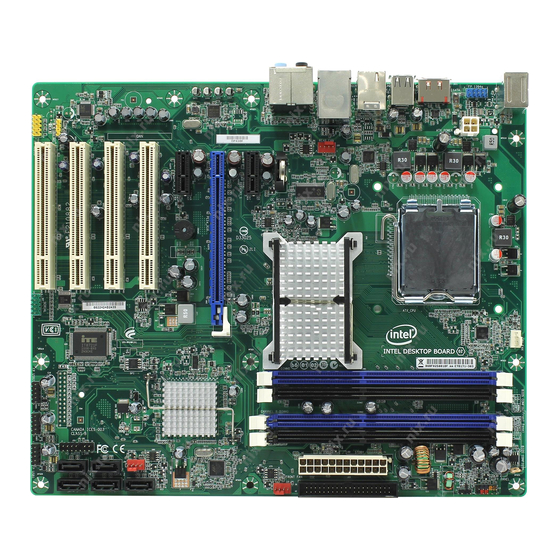

Intel® Desktop Board
DP43BFL
Specification Update
December 2010
Order Number: E92424-005US
The Intel
Desktop Board DP43BFL may contain design defects or errors known as errata, which may cause the product to deviate
®
from published specifications. Current characterized errata are documented in this Specification Update.
Advertisement
Table of Contents
Related Manuals for Intel DP43BF
Summary of Contents for Intel DP43BF
- Page 1 Intel® Desktop Board DP43BFL Specification Update December 2010 Order Number: E92424-005US The Intel Desktop Board DP43BFL may contain design defects or errors known as errata, which may cause the product to deviate ® from published specifications. Current characterized errata are documented in this Specification Update.
-
Page 2: Revision History
Desktop Board DP43BFL may contain design defects or errors known as errata which may cause the product to deviate from published specifications. Current characterized errata are available on request. Contact your local Intel sales office or your distributor to obtain the latest specifications before placing your product order. - Page 3 Contents ® Specfication Update for the Intel Desktop Board DP43BFL Terminology .................... 5 General Information ................. 5 Summary of Changes ................6 Intel Desktop Board DP43BFL Specification Update...
- Page 4 ® Intel Desktop Board DP43BFL ® This document is an update to the specifications contained in the Intel Desktop Board DP43BFL Technical Product Specification (Order Number: E90027). It is intended for hardware system manufacturers and software developers of applications, operating systems, or tools.
-
Page 5: General Information
The AA number is found on a small label on the component side of the board. The 4 Series Chipset kit used on this AA revision consists of two components as follows: Device Stepping S-Spec Numbers P43 MCH SLB89 ICH10 SLB8R Intel Desktop Board DP43BFL Specification Update... -
Page 6: Summary Of Changes
Clarifications, or Documentation Changes that apply to the Intel Desktop Board DP43BFL. Intel intends to fix some of the errata in a future revision of the desktop board, and to account for the other outstanding issues through documentation or specification changes as noted. -
Page 7: System Memory
8 GB maximum total system memory (with 2 Gb memory technology). Refer to Section 2.1.1 on page 37 for information on the total amount of addressable memory. • Minimum total system memory: 512 MB • Non-ECC DIMMs • Serial Presence Detect Intel Desktop Board DP43BFL Specification Update... - Page 8 Intel Desktop Board DP43BFL Specification Update...
