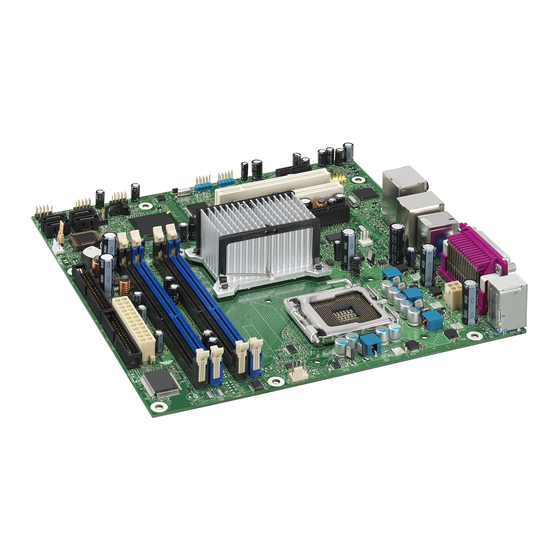

Intel® Desktop Board
D945GNT
Specification Update
Release Date: November 2007
Order Number: D23992-007US
The Intel
Desktop Board D945GNT may contain design defects or errors known as errata, which may cause the product to deviate
®
from published specifications. Current characterized errata are documented in this Specification Update.

Advertisement

loading

Related Manuals for Intel D945GNT

Summary of Contents for Intel D945GNT

  • Page 1 Release Date: November 2007 Order Number: D23992-007US The Intel Desktop Board D945GNT may contain design defects or errors known as errata, which may cause the product to deviate ® from published specifications. Current characterized errata are documented in this Specification Update.

  • Page 2: Revision History

    North America 1-800-548-4725, Europe 44-0-1793-431-155, France 44-0-1793-421-777, Germany 44-0-1793-421-333, other Countries 708-296-9333 Intel, the Intel logo, Intel Core, and Pentium are trademarks of Intel Corporation in the United States and other countries. * Other names and brands may be claimed as the property of others.

  • Page 3: Table Of Contents

    Contents ® Specfication Update for the Intel Desktop Board D945GNT Terminology .................... 5 General Information ................. 5 Summary of Changes ................7 Specification Changes ................7 Errata..................... 8 Intel Desktop Board D945GNT Specification Update...

  • Page 4: Specfication Update For The Intel Desktop Board D945Gnt

    82801GR ICH7R I/O Controller Hub and that may apply to the desktop board D945GNT. Unless otherwise noted in this document, it should be assumed that any ICH 7 errata for a given stepping are applicable to the Altered Assembly (AA) revision(s) associated with that stepping.

  • Page 5: Terminology

    Documentation Changes include typos, errors, or omissions from the current published specifications. These changes will be incorporated in the next release of the specifications. General Information Basic Desktop Board D945GNT Identification Information AA Revision BIOS Revision Notes C96315-409 NT94510J.86A.4089...
  • Page 6 The AA number is found on a small label on the component side of the board. The 945 Chipset kit used on this AA revision consists of two components as follows: Device Stepping S-Spec Numbers 82945G GMCH SL8FU 82801GB ICH7 SL8FX 82801GR ICH7R SL8FY Intel Desktop Board D945GNT Specification Update...

  • Page 7: Summary Of Changes

    Clarifications, or Documentation Changes that apply to the Intel Desktop Board D945GNT. Intel intends to fix some of the errata in a future revision of the desktop board, and to account for the other outstanding issues through documentation or specification changes as noted.

  • Page 8: Errata

    The Hardware Monitoring and Fan Control may only support up to 3.6V ROBLEM on its Pulse Width Modulation (PWM) outputs. The 4-pin fans used with the Intel Desktop board could have a pull up voltage as high as 5.25V, potentially causing failures in the circuit used for fan control on this Intel Desktop Board.
  • Page 9 I/O connectors on the add-in card that are located on the I/O bracket, in line with the edge fingers on the card. None ORKAROUND : May be fixed in a later hardware revision TATUS Intel Desktop Board D945GNT Specification Update...
