- Page 1 1001LWX |CB Radio with Weather Scan 1001LWX |CB Radio with Weather Scan Technology Technology Owner’s Manual Owner’s Manual www.midlandradio.com...
-
Page 2: Table Of Contents
Replacement or substitution of crystal, transistors, ICs, regulator diodes, or any other part of a unique nature, with parts other than those recommend by Midland, may cause violations of the technical regulations in Part 95 of the FCC Rules or in violation of certification requirements in Part 2 of the rules. -
Page 3: Welcome To The World Of Midland Electronics
Congratulations on your purchase of the Midland 1001LWX CB radio. In the years ahead, you can expect to find time and again why Midland holds the front running position among CB users. You will also find that American Original is not just a slogan, but the heading of a long list of hearable, seeable benefits. -
Page 4: What's In The Box
Where to Locate your CB Transceiver: Where to Locate your CB Transceiver: Your new Midland CB is designed to be installed under the dash or vertically on a console of your vehicle. Safety and convenience are the primary considerations in deciding exactly where to locate your radio. -
Page 5: Power Wiring (Negative Ground Only)
Where you decide to locate your antenna will determine the type of antenna you install. Consult your Midland CB dealer for advice and guidance, and measure your needs against the attributes of the various Midland antenna models they carry. -
Page 6: Antenna Installation
For the exact procedures to be used, refer to the antenna manufacturer’s installation manual. You can buy an SWR meter separately or have your antenna checked by your Midland CB Dealer’s service department. Factors affecting CB and Weather Scan Range:... -
Page 7: 1001Lwx Front Panel Features And Operation

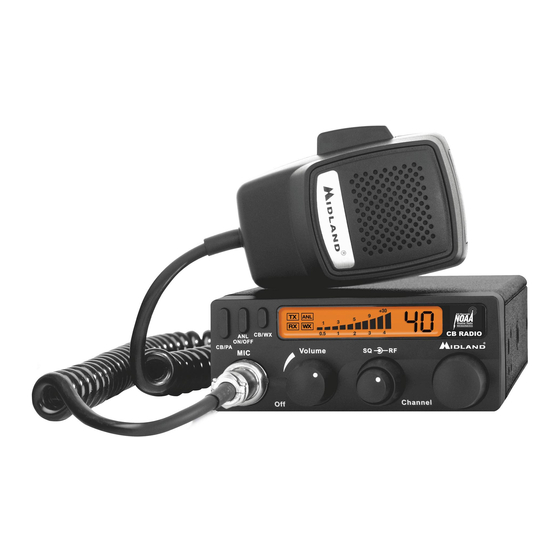

Model 1001LWX Owner’s Manual 1001LWX Front Panel Features and Operation 1001LWX Front Panel Features and Operation WX Scan/CB Button ANL ON/OFF Easy to Read Button Backlit LCD Channel Knob CB/PA Button Mic Connector RF Gain Knob ON/OFF Squelch Control Volume Knob Knob ON/OFF Volume Knob: In the off position your transceiver power is off. -
Page 8: Back Panel Features And Operation
Model 1001LWX Owner’s Manual Back Panel Features and Operation Back Panel Features and Operation External Speaker Jack PA Jack DC 13.8V Power Antenna Cord Connector Antenna Connector: Connect a standard 50-ohm CB antenna to this connector. External Speaker Jack: When a speaker is connected to this jack, the internal speaker is by-passed. -
Page 9: Technical Specifications
Model 1001LWX Owner’s Manual Technical Specifications Technical Specifications General Frequency range ................26.965-27.405 MHz Channels ........................40 Modulation type ......................AM Antenna impedance ....................50 Ohm Loudspeaker ......................8 Ohm Microphone ..................1000 ohm..Electret Power Supply ................13.8 VDC negative ground Size …………………………………………………….......4-7/8"(W) x 6-1/2"(D) x 1-1/2"(H) Unit Weight……………………………………………………………………......1 lb. -
Page 10: Service
Visa, Cashier's Check or Money Order will be accepted for payment only. Personal checks will not be accepted and will delay the repair of your radio until we receive payment by approved methods. Midland Radio Corporation Hereby certifies that this unit has been designed, manufactured,... -
Page 11: Limited Warranty
Corporation , Warranty Service Department, 5900 Parretta Drive, Kansas City, Missouri 64120, or to any "Midland Authorized Warranty Service Station", or to the place of pur- chase (if a participating dealer). This warranty gives you specific legal rights and you may also have other rights which vary from state to state. -
Page 12: Accessories
Model 1001LWX Owner’s Manual Accessories Accessories Accessories can be purchased at www.midlandradio.com or fill in the form on the following page and mail to our address. 18-2442 18-2442 CENTER LOAD MAGNETIC MOUNT MOBILE CB ANTENNA • Center loaded with 17-7 stainless steel whip •... -
Page 13: Accessories Order Form
Model 1001LWX Owner’s Manual 18-2442 $17.99 18-258 $19.99 21-404C $19.99 Page 13 www.midlandradio.com...
