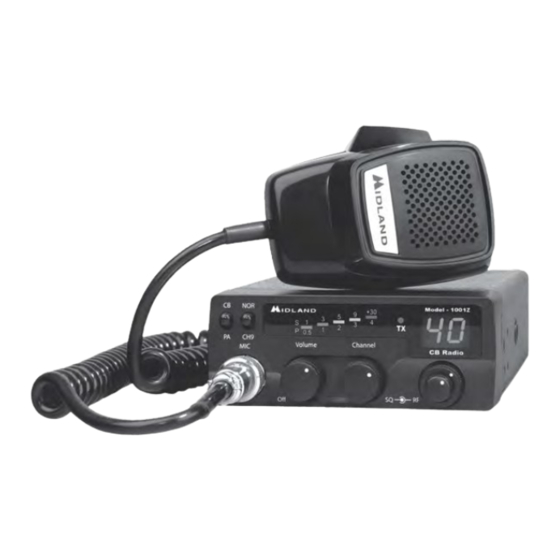

- Page 1 40 Channel CB Radio with 4-Watt Output Power Model 1001z Owner’s Manual midlandusa.com...
-
Page 2: Table Of Contents
Welcome to the World of Midland Electronics ....... . 3... -
Page 3: Welcome To The World Of Midland Electronics
Welcome to the World of Midland Electronics Thank you for purchasing the state-of-the-art mobile 1001z CB Radio from Midland. We are proud to offer you this important piece of communication equipment to help you stay informed. How to Install your Midland Mobile CB This transceiver may be installed in any 12-volt negative ground-system car or truck. -
Page 4: Included Installation And Operating Accessories
6. Owner’s Manual. Where to Locate your CB Transceiver Your new Midland CB is designed to be installed either under the dash or vertically on a console of your vehicle. Safety and convenience are primary considerations in deciding exactly where to locate your radio. -
Page 5: Power Wiring (Negative Ground Only)
You can choose from two types of mobile CB antennas: full-length whip and loaded whip - and a variety of mounts (depending on where you locate your antenna). The dealer who sold you your Midland CB can advise which type is best for you. *Where you locate your antenna does make a difference.* Some general rules for antenna location that can aid CB performance: 1. -
Page 6: Antenna Installation
Standing Wave Radio (SWR) meter. For the exact procedures to be used, refer to the antenna manufacturer’s installation manual. You can buy an SWR meter separately or have your antenna checked by your Midland CB Dealer’s service department. Range Essentially, the things that affect range are the same influences that optimize or limit AM and FM broadcast signals. -
Page 7: Operating Controls
Operating Controls Normal / CB/PA S/RF TX LED Channel Display Switch Display Switch Locking On/Off Channel Squelch / RF Volume Selector Knob Connector Microphone Connector: Plug in the supplied microphone to this connector. Received signals will not be heard without the microphone. ON/OFF Channel Buttons: This easy-to-operate control allows changing of CB channels, either up or down. -
Page 8: Back Panel
Back Panel Antenna Connector Jack Speaker Jack 13.8VDC Power Cord Antenna Connector: Connect a standard 50-ohm CB antenna to this connector. External Speaker Jack: When a speaker is connected to this jack, the internal speaker is by-passed. All received signals will be heard through the external speaker. -
Page 9: Technical Specifications
Technical Specifications General Frequency Range ................26.965-27.405 MHz Channels ......................... 40 Modulation Type ......................AM Antenna Impedance .....................50 Ω Loudspeaker ........................8 Ω Microphone....................1000 Ω Electret Power Supply ................13.8 VDC negative ground Size ................4-3/8” (W) x 6-5/8” (D) x 1-7/8” (H) Unit Weight ......................1 lb. -
Page 10: Plain English Rules Citizens Band Radio Services
PLAIN ENGLISH RULES § 95.404 (CB Rule 4) Do I need a license? CITIZENS BAND RADIO SERVICES You do not need an individual license to operate a CB station. You Prepared by the Federal Communications Commission, Washington, DC are authorized by this rule to operate your CB station in accordance FEDERAL COMMUNICATIONS COMMISSIONS with the rules in this subpart. - Page 11 antenna. Consult part 17 of the FCC’s Rules for more information. Frequency Channel WARNING:——————————————————— (megahertz - MHz) 26.965 Installation and removal of CB station antennas near power lines 26.975 is dangerous. For your safety, follow the installation directions 26.985 included with your antenna. 27.005 27.015 ————————————————————————...
- Page 12 the signal is used to make contact or to continue communications. of the following means: (Examples of circuits using these signals are tone operated squelch (1) Previously assigned CB call sign; (2) K prefix followed by operator initials and residence zip code; and selective calling circuits.) If the signal is an audible tone, it must last no longer than 15 seconds at one time.
- Page 13 qualified to perform transmitter maintenance and repair duties in the FCC. OTHER THINGS YOU NEED TO KNOW private land mobile services and fixed services by an organization § 95.421 (CB Rule 21) What are the penalties for violating these or committee representative of users in those services. rules? (c) Except as provided in paragraph (d) of this section, each (a) If the FCC finds that you have willfully or repeatedly violated the...
-
Page 14: Service
Repairs not covered by warranty or units that are over THREE year old are subject to a repair fee. Please call for a quote on repair service cost at 816-241-8500. Send only cashier’s check, money order, Master Card or Visa card number. Midland Radio Corporation Hereby certifies that this unit has been designed, manufactured,... -
