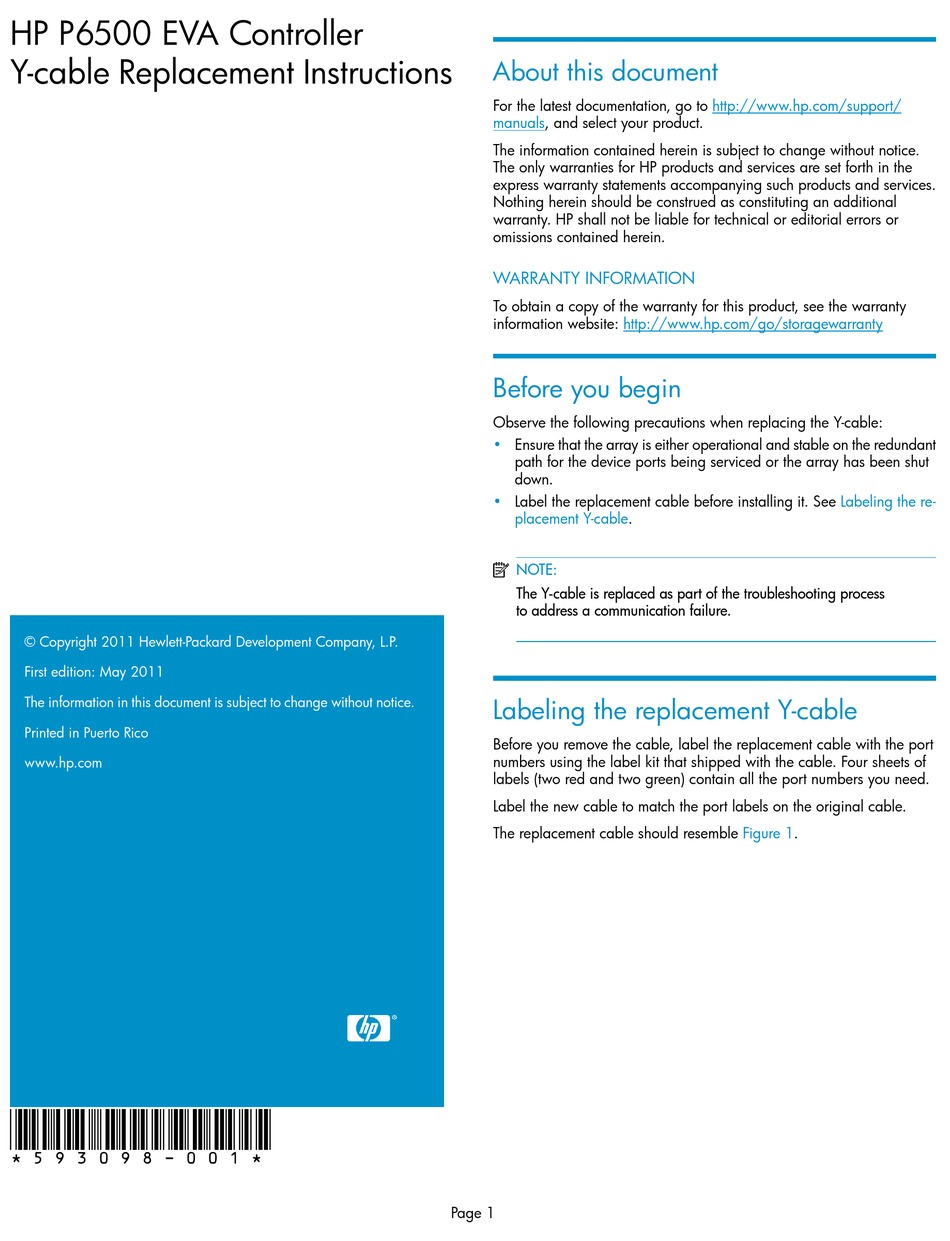

HP P6000 Replacement Instructions

HP P6500 EVA Controller
Y-cable Replacement Instructions
© Copyright 2011 Hewlett-Packard Development Company, L.P.
First edition: May 2011
The information in this document is subject to change without notice.
Printed in Puerto Rico
www.hp.com
*593098-001*

About this document

For the latest documentation, go to
manuals, and select your product.
The information contained herein is subject to change without notice.
The only warranties for HP products and services are set forth in the
express warranty statements accompanying such products and services.
Nothing herein should be construed as constituting an additional
warranty. HP shall not be liable for technical or editorial errors or
omissions contained herein.
WARRANTY INFORMATION
To obtain a copy of the warranty for this product, see the warranty
information website: http://www.hp.com/go/storagewarranty

Before you begin

Observe the following precautions when replacing the Y-cable:
Ensure that the array is either operational and stable on the redundant
path for the device ports being serviced or the array has been shut
down.
Label the replacement cable before installing it. See
placement Y-cable.
NOTE:
The Y-cable is replaced as part of the troubleshooting process
to address a communication failure.
Labeling the replacement Y-cable
Before you remove the cable, label the replacement cable with the port
numbers using the label kit that shipped with the cable. Four sheets of
labels (two red and two green) contain all the port numbers you need.
Label the new cable to match the port labels on the original cable.
The replacement cable should resemble
Page 1
http://www.hp.com/support/
Labeling the re-
Figure 1.
