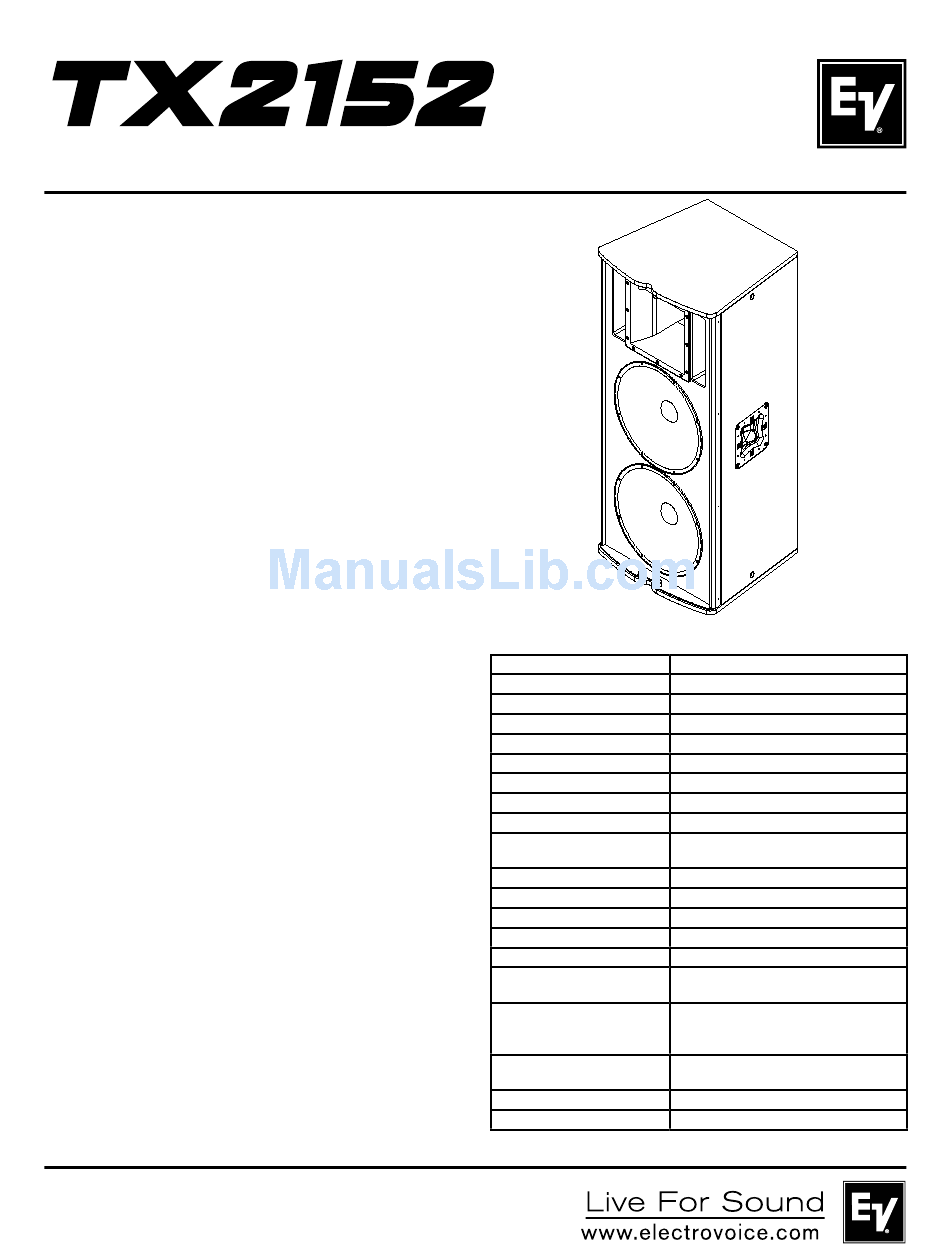

Electro-Voice TX2152 Specification Sheet

Key Features:

• ND2-8 2" (51mm) Diaphragm, 1" (25.4mm) Exit
Neodymium Compression Driver
• Dual SMX2151 15" (381mm) LF Transducers
with Fully Symmetric Drive
• Advanced 6 Order Crossover with HF
th
Protection
• 60° x 40° Rotatable Coverage Pattern
• 103 dB Sensitivity, 139 dB Maximum SPL
• 1000W Continuous (4000W Peak) Power
Handling
• (6) 3/8" Threaded Points for Suspension

General Description:

The Electro-Voice® TX2152 is a high power, very high sensitivity,
2-way loudspeaker system that can be used in applications that
require high SPL while maintaining a smooth response. When com-
bined with the TX2181 subwoofer, the TX2152 is capable of serving
as the main PA for small to medium sized live sound venues and
nightclubs with extended LF response.
The TX2152 utilizes the ND2, a high output 2" titanium compres-
sion driver, coupled to a Constant Directivity™ 60° x 40° horn. This
combination results in excellent pattern control in medium throw
applications.
Dual SMX2151 15" woofers have FEA optimized magnet structures
and shorting rings for ultra low distortion and maximum intelligibil-
ity at high SPL levels. The crossover uses very steep 36 dB/octave
slopes with equalization for very smooth response in vocal range,
and a protection circuit for long term reliability.
The TX2152 has a variety of features that make it equally suited for
portable or fixed installation applications. The internally braced,
trapezoidal enclosure is constructed out of a combination of ply-
wood and MDF, and coated with EVCoat
durability. The unique grille design is very strong, dent resistant, and
features a rotatable logo. Four way handles allow for gripping the
TX2152 in a variety of positions. Six 3/8" threaded points allow a
single TX2152 to be suspended in a various positions in fixed instal-
lation applications. The recessed input panel with dual NL4 connec-
tors keeps the connectors hidden and allows for closer placement to
a wall or other boundary. The TX2152 is the same width and height
as the TX2181, providing a single column appearance when stacked,
and uses the minimum amount of space when stored or transported.
for maximum strength and
TM

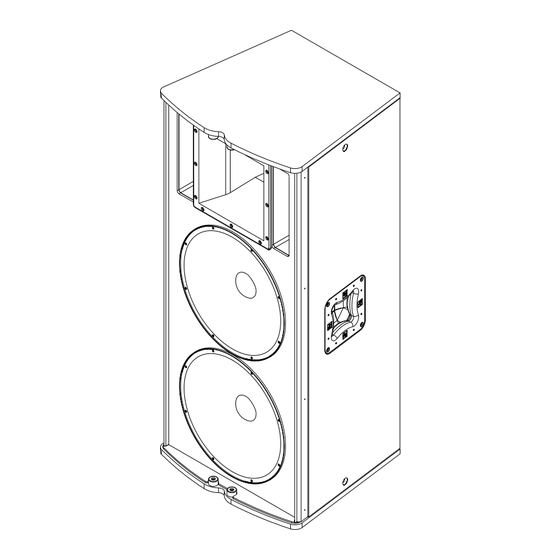

TX2152
Dual 15" Two-Way,
60° x 40° Full-Range
Loudspeaker System

Technical Specifications:

Freq. Response (-3 dB): 55 Hz - 13 kHz
1
Freq. Range (-10 dB): 50 Hz - 18 kHz
1
Rec. Hipass Frequency: 40 Hz
Axial Sensitivity: 103 dB (1W/1m)
Max. Calculated SPL: 139 dB
Horizontal Coverage: 60°, or 40°
Vertical Coverage: 40°, or 60°
Power Handling: 1000W Continuous, 4000W Peak
LF Transducers: (2) SMX2151's, 15 in (381mm) Drivers
HF Transducer: ND2-8, 2 in (51mm) Diaphragm
Crossover Frequency: 1750 Hz
Nominal Impedance: 4 Ohms
Minimum Impedance: 3.1 Ohms
Connectors: (2) Neutrik Speakon NL4's
Enclosure Material: Plywood and MDF with EVCoat
Grille: 16 GA Steel, Black Powdercoat, with
Suspension: (6) 3/8" Threaded Points - (2) on
Dimensions (H x W x D): 45.4" x 20.0" x 18.5"
Net Weight: 94.3 lbs (42.8 kg)
Shipping Weight: 105.8 lbs (48.0 kg)
Half Space Measurement.
1
Compression Driver
Rotatable Logo
Each Side and (2) on the Rear of
Enclosure
(1154mm x 508mm x 471mm)
TM
