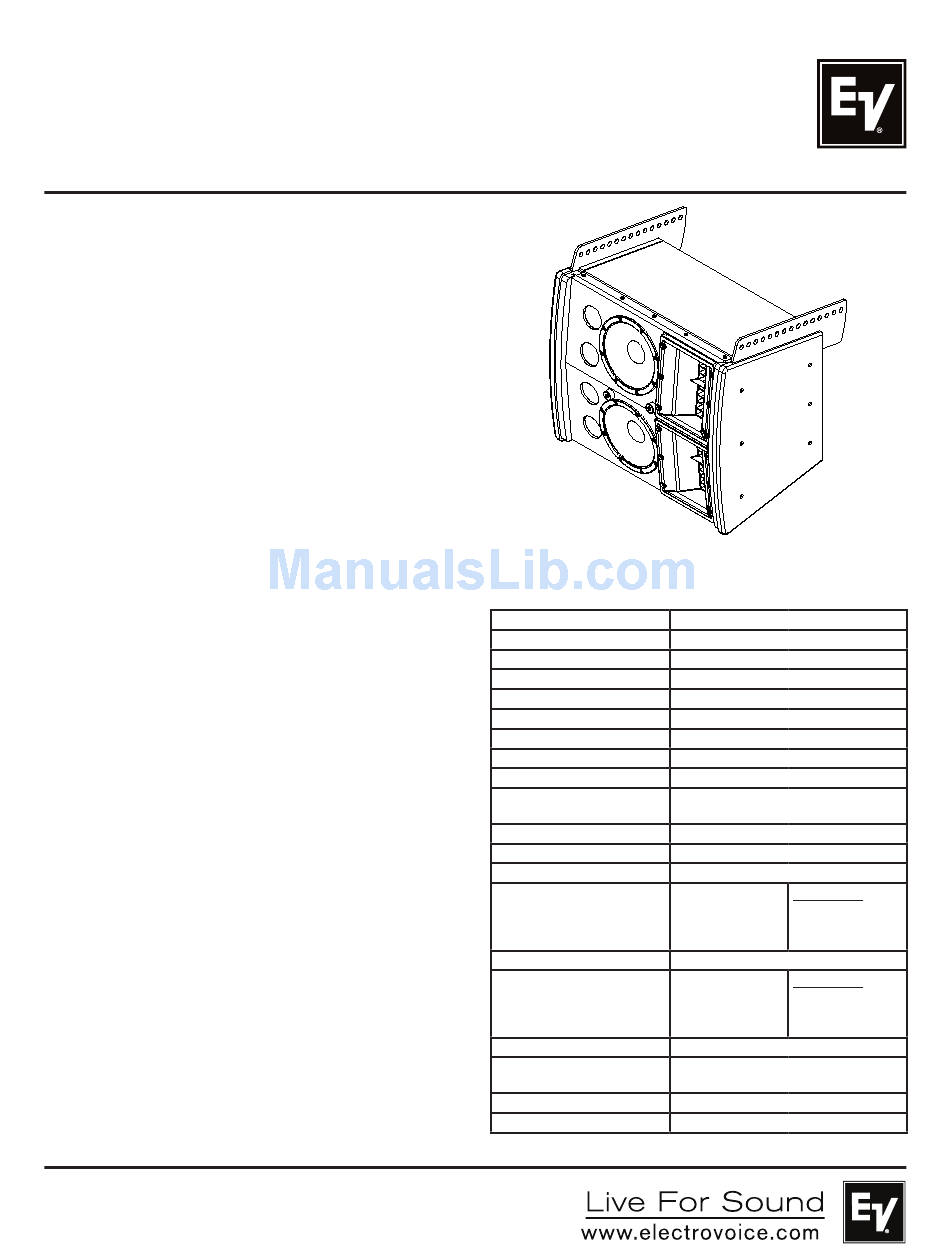

Electro-Voice EVA-2082S/920 Datasheet

Key Features:

• True Line Array Performance
• 90° Horizontal Coverage Pattern
• 20° Vertical Coverage Pattern
• 104 dB Sensitivity
• Hidden Suspension Hardware (Included) is
Architecturally Pleasing
• 3 Finishes Available - Indoor, PI, and
Fiberglass
• EVADA (EVA Design Assistant) Software Tool
• Single Amplifier Channel Drive Configuration
for Entire Array
• Advanced 6 Order Crossover Network with
th
HF Protection

General Description:

The Electro-Voice® EVA Series (Expandable Vertical Array) is designed
to provide full bandwidth, well defined coverage from easily created line
arrays using four different preconfigured 2-way modules. Two verti-
cal coverage angles, 6° and 20°, can be combined to create line arrays
optimized for spaces ranging from 12m (40ft) to greater than 60m (200ft)
deep. Two horizontal coverage angles, 90° and 120°, provide the perfect
match for any width. Each module consists of two elements, each 2-way
element containing an 8" woofer and two compression drivers mounted
on a hydra/waveguide combination. High order passive networks couple
the element's transducers, and the array element to additional elements
to provide plane wave radiation and response equal to DSP-driven high
end systems. Impedance management allows full array drive (up to 4
modules) from a single amplifier channel at 4 ohms. Matching sub-
woofer module is available when response below 50 Hz is required. EVA
systems can be used in a variety of fixed installation applications where
high quality sound reinforcement and even coverage are required from a
compact , lightweight, unobtrusive array.
EVA-2082 modules utilize four DH2005 high output 1.25" titanium com-
pression drivers, mounted on two Hydra® plane wave generators and
two waveguides. The result is smooth response to 20 kHz and excellent
pattern control in both planes.
The EVS2008 8" woofer is designed for line array use to provide very low
distortion and maximum intelligibility at high SPL levels. The crossover
features steep 36 dB/octave slopes with equalization for very smooth re-
sponse in the vocal range, extended HF, and a protection circuit for long
term reliability. It includes a user definable shading capability to finely
adjust the line array to the audience area.
(General Description continued on next page.)
EVA-2082S/920
Dual 8" Two-Way
90° x 20° Full-Range
Dual Element
Line Array Module

Technical Specifications:

Freq. Response (-3 dB): 60 Hz - 19 kHz
1
Freq. Range 1 (-10 dB): 45 Hz - 20 kHz
Rec. Hipass Frequency: 50 Hz
Axial Sensitivity : 104 dB (1W/1m)
2
Max. Calculated SPL : 129 dB Continuous, 135 dB Peak
2
Horizontal Coverage: 90°
Vertical Coverage: 20°
Power Handling: 350W Continuous, 1400W Peak
LF Transducer: (2) EVS2008, 8 in (203mm) Driver
HF Transducer: (4) DH2005, 1.25 in (32mm)
Crossover Frequency: 1740 Hz
Nominal Impedance: 16 Ohms
Minimum Impedance: 12 Ohms
Connectors: (2) 4 Contact 10
Enclosure Material: Plywood with EVCoat
Grille: 16 GA Galva-
Suspension: EVA Grid (Sold Separately)
Dimensions (H x W x D): 20.17" x 23.50" x 14.53"
Net Weight: 76.2 lbs (34.6 kg)
Shipping Weight: 85.5 lbs (38.8 kg)
Full Space Measurement.
1
2 Full Space Measurement of 3 Elements. SPL Adjusted for 1m Distance.
Diaphragm Compression Driver
PI Version -
AWG Phoenix/ Gland Nut with
EuroBlock Style Included Input
Screw Terminals Panel Cover
TM
PI Version -
nneal, Powder- Stainless Steel
coated with Hydrophobic
Cloth
(512.2mm x 596.9mm x 369.1mm)
