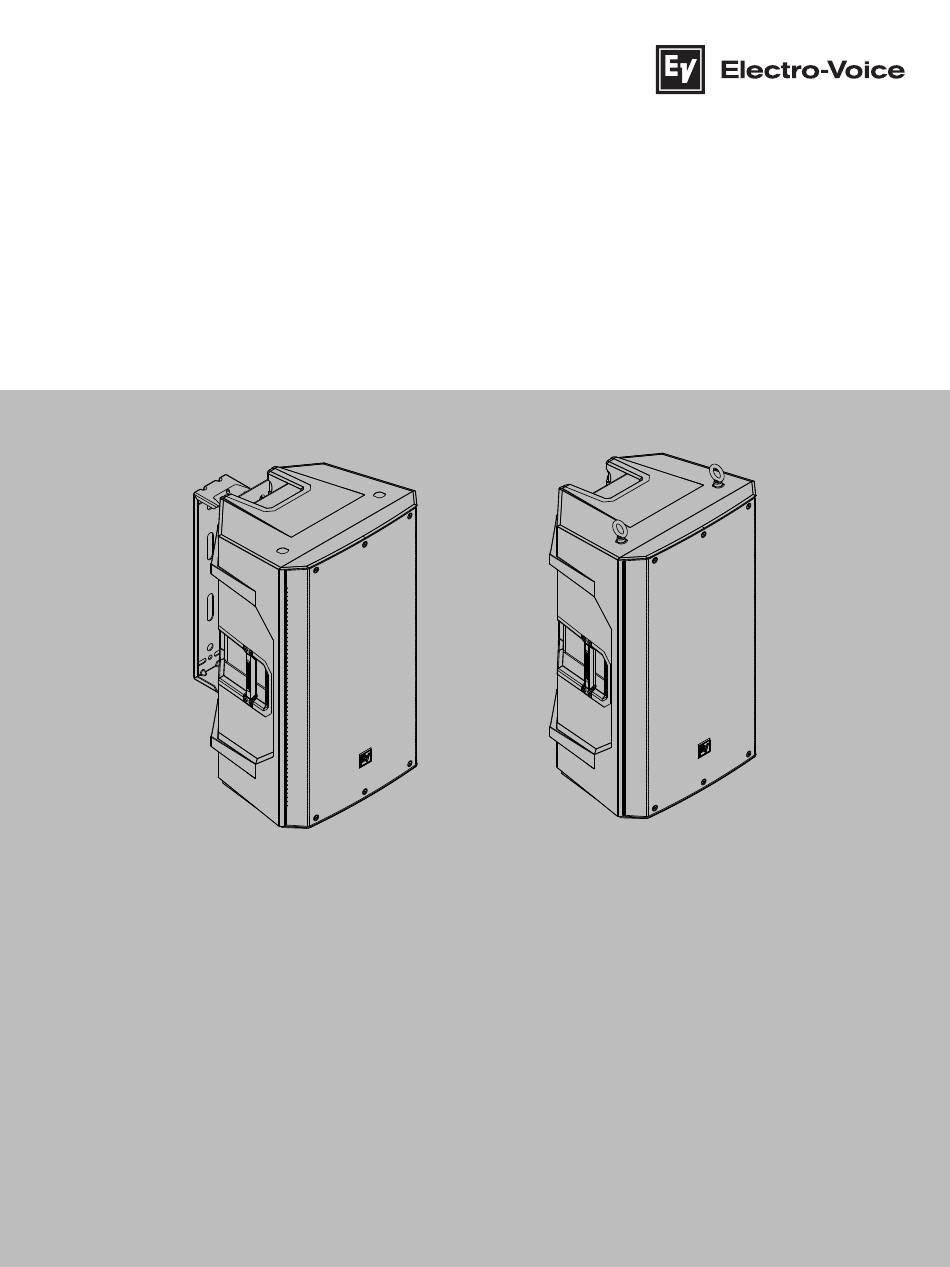

- Page 1 ELX200 Full‑Range Loudspeaker Accessories ELX200‑BRKT | ELX200‑BRKT‑W | EBK1‑M10‑3PACK Installation note...
-
Page 3: Table Of Contents
ELX200 Full-Range Loudspeaker Accessories Table of contents | en Table of contents Safety Safety point Installation Wall mount bracket Eyebolt kit Technical data Product labels Electro-Voice 2023-08 | 04 | F.01U.332.445 Installation note... -
Page 4: Safety
8:1 will be maintained. The use of rigging configurations other than recommended by Electro-Voice in this manual for either the ELX200 loudspeaker systems or ELX200 rigging accessories are at the risk of the user. - Page 5 Figure 1.2: Eyebolts shown oriented in the plane of pull (left Correct; right Incorrect) Warning! Never exceed the limitations or maximum recommended working load for Electro-Voice loudspeakers. Disregarding this warning could result in serious injury or death. 50 lb per suspension point 0°...
-
Page 6: Safety Point
Remove one of the screws from the top of the loudspeaker. Replace the screw with one eyebolt and one washer. Tether the safety point back to the building structural supports. An added safety point is established back to the structural supports. 2023-08 | 04 | F.01U.332.445 Electro-Voice Installation note... -
Page 7: Installation

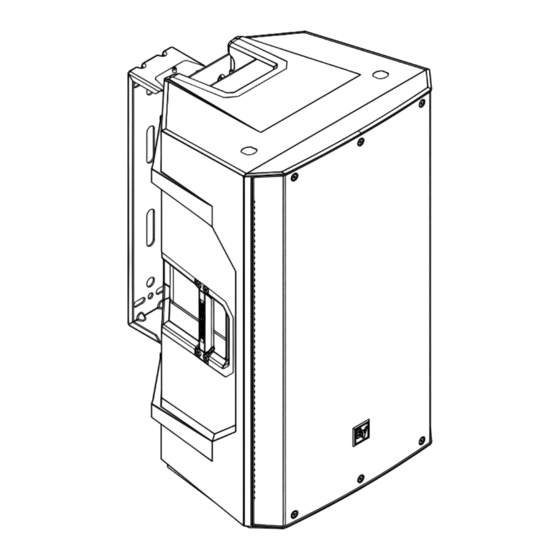

ELX200 Full-Range Loudspeaker Accessory Installation Note Loudspeaker Wall Mount Bracket M10 Eyebolt kit ELX200-10, ELX200-10P, ELX200-12, ELX200-BRKT EBK1-M10-3PACK ELX200-12P, ELX200-15, and ELX200-15P Wall mount bracket The wall mount bracket is used to mount an ELX200-10, ELX200-10P, ELX200-12, ELX200-12P, ELX200-15, or ELX200-15P full-range loudspeaker to the wall or ceiling. - Page 8 Using the four screws you removed from the top handle, attach the upper mount (A) to a 10 inch or 12 inch loudspeaker where the top handle was located in the up position. 2023-08 | 04 | F.01U.332.445 Electro-Voice Installation note...
- Page 9 B: For ceiling mounting with threaded rods (1/2" or M16 threaded rods) (2 PLS) C: For ceiling mounting with U-bolt (4" or M16 U-bolt) (2 PLS) D: For ceiling mounting with threaded rods (3/8" or M10 threaded rods) (2 PLS) Electro-Voice 2023-08 | 04 | F.01U.332.445 Installation note...
- Page 10 (B) into position. The loudspeaker is loosely hung and allows you to position the loudspeaker. Position the loudspeaker to the desired angle. 45° 30° 15° 0° 15° 30° 45° 2023-08 | 04 | F.01U.332.445 Electro-Voice Installation note...
-
Page 11: Eyebolt Kit
Electro-Voice loudspeakers that have integrated M10 suspension points. The eyebolt attachment points can be used to suspend Electro-Voice loudspeakers using hardware rated for overhead lifting. The loudspeaker is suspended using two main suspension points with one pull-up point in the back for aiming. - Page 12 Suspending any object is potentially dangerous and should only be attempted by individuals who have a thorough knowledge of the techniques and regulations of suspending objects overhead. Electro-Voice strongly recommends that loudspeakers be suspended taking into account all current national, federal, state, and local laws and regulations. It is the responsibility of the installer to ensure all loudspeakers are safely installed in accordance with all such requirements.
- Page 13 Repeat this step until all three eyebolts are tightened. Notice! Use certified hardware rated for overhead lifting to suspend the loudspeaker. Figure 2.3: Examples of useful suspension hardware A: Anchor shackle B: Threaded chain connector C: Carabiner-type snap hook Electro-Voice 2023-08 | 04 | F.01U.332.445 Installation note...
- Page 14 Over tightening the eyebolt with a wrench, screwdriver, etc. can result in system failure and injury. Consult the loudspeaker installation manual for the loudspeaker load ratings and specific requirements. 2023-08 | 04 | F.01U.332.445 Electro-Voice Installation note...
-
Page 15: Technical Data
(19.72 in x 4.02 in x 4.84 in) Shipping dimensions (H x W x D): 530 mm x 165 mm x 145 mm (20.87 in x 6.50 in x 5.71 in) Net weight: 2.09 kg (4.60 lb) Shipping weight: 2.65 kg (5.85 lb) Dimensions: Figure 3.1: ZLX200-BRKT dimensions Electro-Voice 2023-08 | 04 | F.01U.332.445 Installation note... - Page 16 Shipping dimensions (H x W x D): 127 mm x 127 mm x 76 mm (5.0 in x 5.0 in x 3.0 in) Net weight: 0.31 kg (0.68 lb) Shipping weight: 0.37 kg (0.82 lb) 2023-08 | 04 | F.01U.332.445 Electro-Voice Installation note...
-
Page 17: Product Labels
ELX200 Full-Range Loudspeaker Accessories Product labels | en Product labels Electro-Voice 2023-08 | 04 | F.01U.332.445 Installation note... - Page 18 | Product labels ELX200 Full-Range Loudspeaker Accessories 2023-08 | 04 | F.01U.332.445 Electro-Voice Installation note...
- Page 20 Bosch Security Systems, LLC 130 Perinton Parkway Fairport, NY 14450 www.electrovoice.com © Bosch Security Systems, LLC, 2023 EU importer: Bosch Sicherheitssysteme GmbH Robert-Bosch-Platz 1 70839 Gerlingen Germany © Bosch Sicherheitssysteme GmbH, 2023 202308281143...
