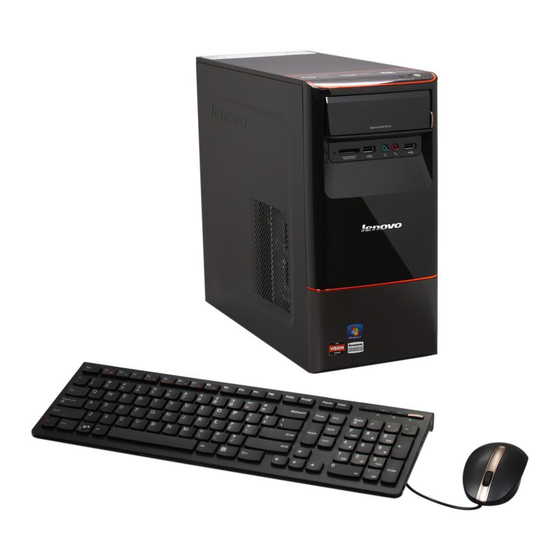

Lenovo H415 Hardware Replacement Manual

Lenovo h4 series hardware replacement guide v3.0
Hide thumbs Also See for H415:
Table of Contents

Advertisement

Quick Links

See also: Hardware Maintenance Manual , User Manual
Machine type: 10059/7723
10060/7724
10068/7752
10080/3099
Version 3.0
2011.06
31500379
H4 Series

Hardware Replacement Guide

Advertisement

Table of Contents
loading

Related Manuals for Lenovo H415

Summary of Contents for Lenovo H415

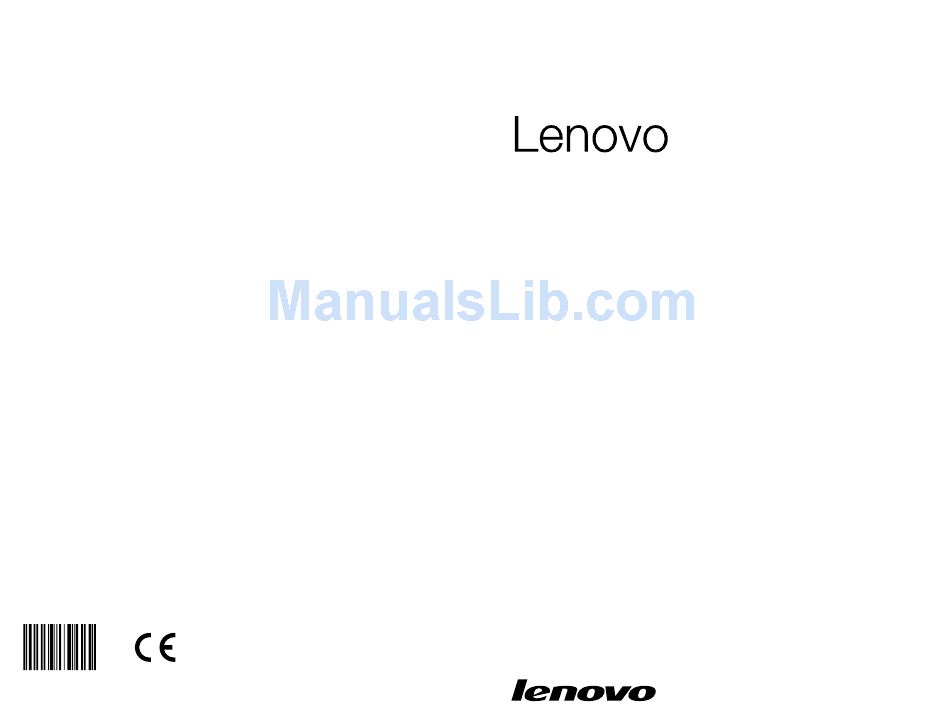

  • Page 1: Hardware Replacement Guide

    Machine type: 10059/7723 10060/7724 10068/7752 10080/3099 H4 Series Hardware Replacement Guide Version 3.0 2011.06 31500379...
  • Page 2 Hardware Replacement Guide ©. Copyright Lenovo 2011. All rights reserved. LIMITED AND RESTRICTED RIGHTS NOTICE: If data or software is delivered pursuant a General Services Administration “GSA” contract, use, reproduction, or disclosure is subject to restrictions set forth in Contract No. GS-35F-05925.

  • Page 4: Table Of Contents

    Contents Overview ..................1 Chapter 1 Locations ..............5 Locating components ..............5 Locating connectors on the front of the computer......6 Locating connectors on the rear of the computer ......7 Identifying parts on the system board ..........12 Chapter 2 Replacing hardware ..........17 Removing the computer cover .............17 Removing and replacing the front bezel ........19 Replacing a memory module ............20...

  • Page 6: Overview

    Note: Use only parts provided by Lenovo™. The description of the TV card in this manual applies only to machines which have a TV card.

  • Page 7: Additional Information Resources

    Troubleshooting information • Parts information • Links to other useful sources of information To access this information, go to http://consumersupport.lenovo.com. Tools required To disassemble the computer, you need the following tools: • Wrist grounding strap and conductive mat for preventing electrostatic discharge •...
  • Page 8 • Always handle parts and other computer components carefully. Handle adapters, memory modules, system boards, and microprocessors by the edges. Never touch any exposed circuitry. • Prevent others from touching the parts and other computer components. • Before you replace a new part, touch the antistatic package containing the part to a metal expansion slot cover or other unpainted metal surface on the computer for at least two seconds.
  • Page 9 Hardware Replacement Guide...

  • Page 10: Chapter 1 Locations

    Locations Chapter This chapter provides illustrations to help locate the various connectors, controls and components of the computer. To remove the computer cover, refer to “Removing the computer cover”. Locating components The following illustration will help you to locate the various components in your computer.

  • Page 11: Locating Connectors On The Front Of The Computer

    PCI express adapter card PCI express adapter connectors Power supply System fan Optical drive Hard disk drive Locating connectors on the front of the computer The following illustration shows the location of connectors on the front of the computer. Power button Optical Drive (Selected models only) Memory card reader (Selected models only) USB connectors (2)

  • Page 12: Locating Connectors On The Rear Of The Computer

    Please refer to the keys that follow the illustrations which identify the connectors. Lenovo H415 Voltage selection switch (Selected models only) Power connector On-board VGA connector (Selected models only)
  • Page 13 PCI Express X 16 graphics adapter connector (Some models are equipped with a graphic card) PCI Express X 1 adapter connector (Some models are equipped with a WIFI card or TV tuner card) Lenovo H405 Voltage selection switch (Selected models only) Power connector PS/2 keyboard connector...
  • Page 14 PCI Express X 16 graphics adapter connector (Some models are equipped with a graphic card) PCI Express X 1 adapter connector (Some models are equipped with a WIFI card or TV tuner card) Lenovo H420 Voltage selection switch (Selected models only) Power connector PS/2 keyboard connector...
  • Page 15 Ethernet connector Microphone connector Audio line-out connector Audio line-in connector Standalone graphic card (Selected models only) Expansion card slots (Access connectors for any installed PCI express cards) Lenovo H410 Voltage selection switch (Selected models only) Power connector Hardware Replacement Guide...
  • Page 16 PS/2 keyboard connector PS/2 mouse connector On-board VGA connector (Selected models only) HDMI connector (Selected models only) USB connectors (4) Ethernet connector Microphone connector Audio line-out connector Audio line-in connector PCI Express X 16 graphics adapter connector (Some models are equipped with a graphics card) PCI Express X 1 adapter connector (Some models are equipped with a WIFI card or TV tuner card.)

  • Page 17: Identifying Parts On The System Board

    It provides basic computer functions and supports a variety of devices that are factory-installed or that you can install later. The following illustrations show the locations of parts on the system board. Lenovo H415 Microprocessor and heatsink Microprocessor fan connector...
  • Page 18 Front USB connectors (2) Front audio connector PCI Express X 1 adapter connectors (3) PCI Express X 16 adapter connector System fan connector 12V power connector Lenovo H405 Microprocessor and heatsink Microprocessor fan connector Memory connectors (2) Thermal sensor header connector Power connector...
  • Page 19 Front USB connectors (2) Clear CMOS Front audio connector PCI adapter connector PCI Express X 1 adapter connectors (2) PCI Express X 16 adapter connector System fan connector 12V power connector Lenovo H420 Microprocessor and heat sink Microprocessor fan connector Hardware Replacement Guide...
  • Page 20 SATA connectors (4) Front panel connector Front USB connectors (3) Serial(com2) connector Front audio connector PCI express X 1 adapter connectors (3) PCI express X 16 adapter connector System fan connector 12V power connector Lenovo H410 Microprocessor and heatsink Hardware Replacement Guide...
  • Page 21 Microprocessor fan connector Memory connectors (2) Thermal sensor header connector Power connector SATA IDE connectors (4) Front panel connector Clear CMOS Front USB connectors (2) Front audio connector PCI adapter connector PCI Express X 1 adapter connectors (2) PCI Express X 16 adapter connector System fan connector 12V power connector Hardware Replacement Guide...

  • Page 22: Chapter 2 Replacing Hardware

    Hardware Maintenance Manual (HMM) for the computer. To obtain copies of the Safety and Warranty Guide or HMM, go to the Support Web site at http://consumersupport.lenovo.com Note: Use only parts provided by Lenovo.
  • Page 23 5. Slide the computer cover to the rear of the chassis to remove it. Note: For this procedure, it helps to lay the computer on its side. Hardware Replacement Guide...

  • Page 24: Removing And Replacing The Front Bezel

    Removing and replacing the front bezel To remove and replace the front bezel: 1. Remove the computer cover. Refer to “Removing the computer cover”. Note: For this procedure, it helps to lay the computer on its side. 2. Remove the front bezel by releasing the three plastic tabs inside the chassis and pushing the bezel outward as shown.

  • Page 25: Replacing A Memory Module

    Hardware Maintenance Manual (HMM) for the computer. To obtain copies of the Safety and Warranty Guide or HMM, go to the Support Web site at http://consumersupport.lenovo.com. To replace a memory module: 1. Remove the computer cover. Refer to “Removing the computer cover”.

  • Page 26: Replacing The Hard Disk Drive

    Hardware Maintenance Manual (HMM) for the computer. To obtain copies of the Safety and Warranty Guide or HMM, go to the Support Web site at http://consumersupport.lenovo.com. To replace the hard disk drive: 1. Remove the computer cover. Refer to “Removing the computer cover”.

  • Page 27: Replacing An Optical Drive

    Hardware Maintenance Manual (HMM) for the computer. To obtain copies of the Safety and Warranty Guide or HMM, go to the Support Web site at http://consumersupport.lenovo.com. To replace an optical drive 1. Remove the computer cover. Refer to “Removing the computer cover”.
  • Page 28 5. Push the optical drive straight out of the front of the chassis. 6. Slide the new optical drive into the bay from the back until it snaps into position. 7. Secure the optical drive to the bay with the two screws. 8.

  • Page 29: Replacing The Heatsink Assembly

    Hardware Maintenance Manual (HMM) for the computer. To obtain copies of the Safety and Warranty Guide or HMM, go to the Support Web site at: http://consumersupport.lenovo.com To replace the heatsink assembly: 1. Remove the computer cover. Refer to “Removing the computer cover”.
  • Page 30 7. Use the thermal grease syringe to place five drops of grease on the top of the microprocessor. Each drop of grease should be 0.03ml (3 tick marks on the grease syringe). 8. Install the heatsink and fan assembly onto the heatsink retention bracket. 9.

  • Page 31: Replacing A Pci Or Agp Adapter

    Hardware Maintenance Manual (HMM) for the computer. To obtain copies of the Safety and Warranty Guide or HMM, go to the Support Web site at: http://consumersupport.lenovo.com. To replace an adapter: 1. Remove the computer cover. Refer to “Removing the computer cover”.
  • Page 32 3. Install the new adapter into the same adapter connector. 4. Ensure the adapter is fully seated into the adapter connector. 5. Screw the latch into the chassis. 6. Refer to “Completing the installation”. Hardware Replacement Guide...

  • Page 33: Replacing The Keyboard And Mouse

    Hardware Maintenance Manual (HMM) for the computer. To obtain copies of the Safety and Warranty Guide or HMM, go to the Support Web site at http://consumersupport.lenovo.com. To replace the keyboard: 1. Remove any media (disks, CDs, or memory cards) from the drives, shut down the operating system, and turn off the computer and all attached devices.

  • Page 34: Completing The Installation

    Completing the installation After replacing a part or parts, you must close the computer cover and reconnect all the cables, including telephone lines and power cords. Some parts will require confirming updated information in the Setup Utility program. Refer to “Starting the Setup Utility”...
  • Page 35 “Locating connectors on the front of the computer” and “Locating connectors on the rear of the computer”. Note: In most areas of the world, Lenovo requires the return of the defective CRU. Information about this will come with the CRU or will come a few days after the CRU arrives.

  • Page 36: Chapter 3 Appendix

    Thank you for using Lenovo products. Carefully read all documents shipped with your computer before you install and use the product for the first time. Lenovo is not responsible for any loss except when caused by installation and operations performed by Lenovo professional service personnel.
  • Page 37 Phenom, AMD Sempron, Catalyst, Cool ‘n’ Quiet, CrossFire, PowerPlay, Radeon, and The Ultimate Visual Experience are trademarks of Advanced Micro Devices, Inc. Other company, product, or service names referred to herein or in other Lenovo publications may be trademarks or service marks of others. All rights reserved.
