Elation DLED 36 Brick Technical Specifications

Design LED 36 Brick
The Design LED 36 Brick (DLED 36 Brick) by Elation Professional is a high output, compact (fits in 12" box truss),
LED color changer featuring seamless RGB color mixing using 12 x 3W LEDs by Soul Semi Conductor, 36 Watts
total - 4 Red, 4 Blue and 4 Green. This unit is convection cooled and provides up to 100,000 hours estimated
LED life. The DLED 36 Brick is rated at IP 20, designed for indoor applications only and is fully operational in 3
mounting positions. The DLED 36 Brick includes a dual yoke mounting bracket for fixed installation or can be
used as a split bracket for floor standing and separated for mounting multiple units together in a line for linear
strip design. The unit can be operated from 100~240V (electronic switching power supply) and is AC linkable
with IEC in/out connectors. Control data input is via 3 pin or 5 pin DMX data first in and out connector cables.
The DLED 36 Brick also features low power consumption, minimal heat emission and flicker-free operation for
television and film. The unit also features an on board 4 button control menu with 4 digit LED display for setting
control address, modes, manual or auto programs. The unit comes fitted standard with a 25° lens kit producing
a 14° beam angle and a 26° field angle. Optional 45° lens kit producing a 15° beam angle and a 30° field
angle is available.
FEATURES
• LED color changer
• 12 x 3W LEDs, 36 Watts total - 4 Red, 4 Blue
and 4 Green
• Seamless RGB color changing
• Standard 25° lens kit: 14° beam angle, 26° field angle
• Optional 45° lens kit: 15° beam angle, 30° field angle
• 548 LUX @ 3 meters @ Full
• Rated IP 20
• Compact Design (fits in 12" box truss)
• Convection cooled
• Electronic ballast, multi-voltage
• IEC Power in/out
• Built-in Power Supply and DMX 512 Control
• Linkable power supply (in & out power connectors) up to 8 units
• LED display
• Standard and theatrical modes
• Flicker free operation
• Master/ Slave auto program and music trigger
• 8 built-in programs with Speed control
• Control each L.E.D. independently
©Elation Professional • Elation Professional 6122 S. Eastern Ave. Los Angeles, Ca 90040
www.ElationLighting.com • Toll Free ( 866 ) 245-6726
13.1" / 332.5mm
14.3" / 362.5mm
16.3" / 414.5mm

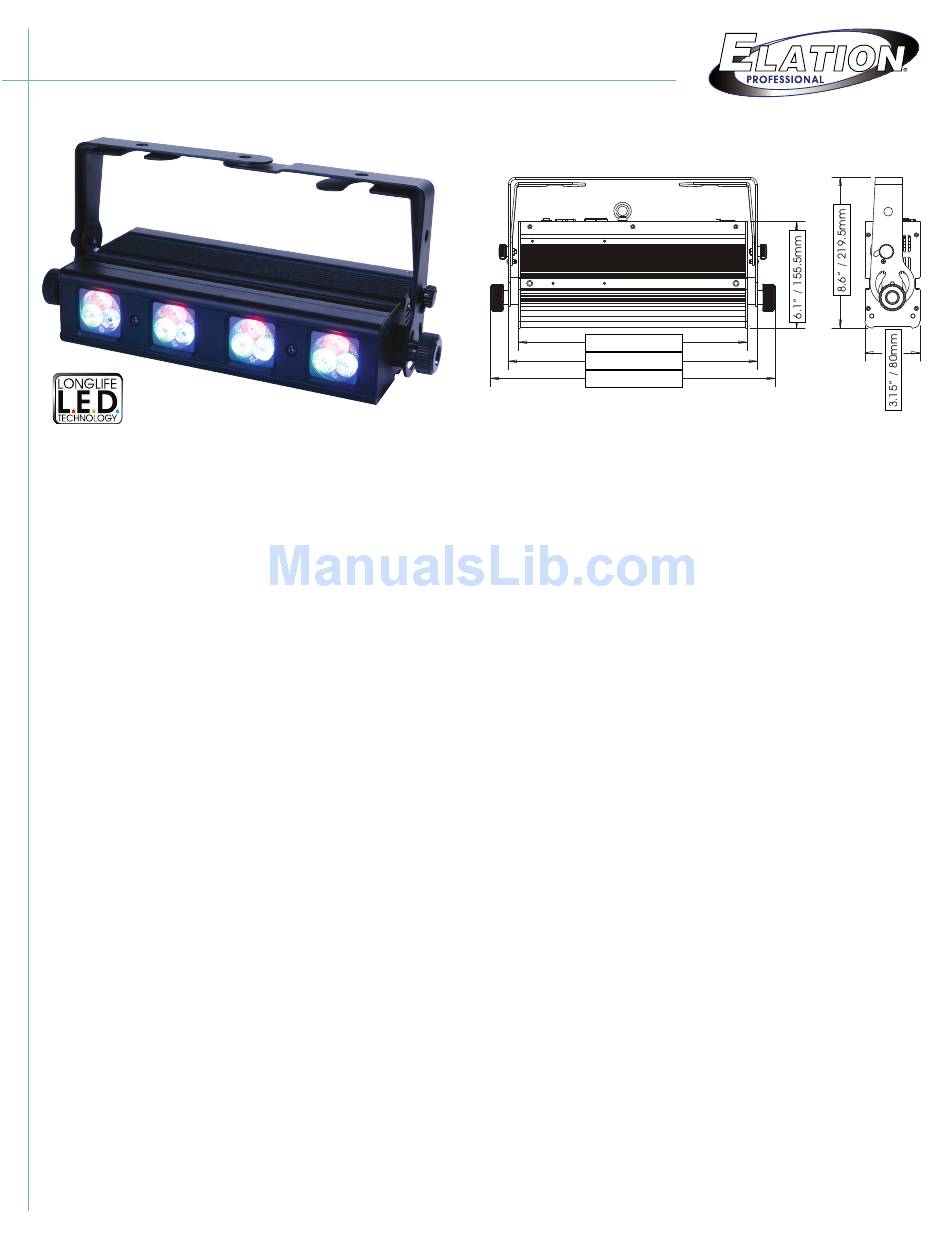

Design LED 36 Brick Dimensions
TECHNICAL SPECIFICATIONS
• DMX Channels: 3, 4, 6, 12 or 15 channel
operation modes
• Control: USITT DMX-512, 3-pin and 5-Pin XLR serial input/output
• Dimmer: Continuous dimming 0-100%
• Strobe: Electronic strobe effect (25 fps)
• IP Rating: IP20
• Power Supply: Electronic switching power supply:
100~240V AC, 50/60Hz
• Power Consumption: 58.6W
• Fuse: GMA 220v~2A
• Lamp: 12 x 3 Watt led's by Seoul Semi Conductor
36-Watt Total (4 x Red, 4 x Green 4 x Blue)
• Lamp life: Long Life L.E.D. (rated at 100,000 Hours)
• Dimensions: (LxWxH): 16.3" x 8.7" x 3.1" /
415 x 220.98 x 78.74mm
• Weight: 9 lbs. / 4.1 kgs.
• Rigging: Mounting bracket and safety eye-hook
installed. Safety cable & 3-pin data cable included
