Summary of Contents for Eizo FlexScan T766

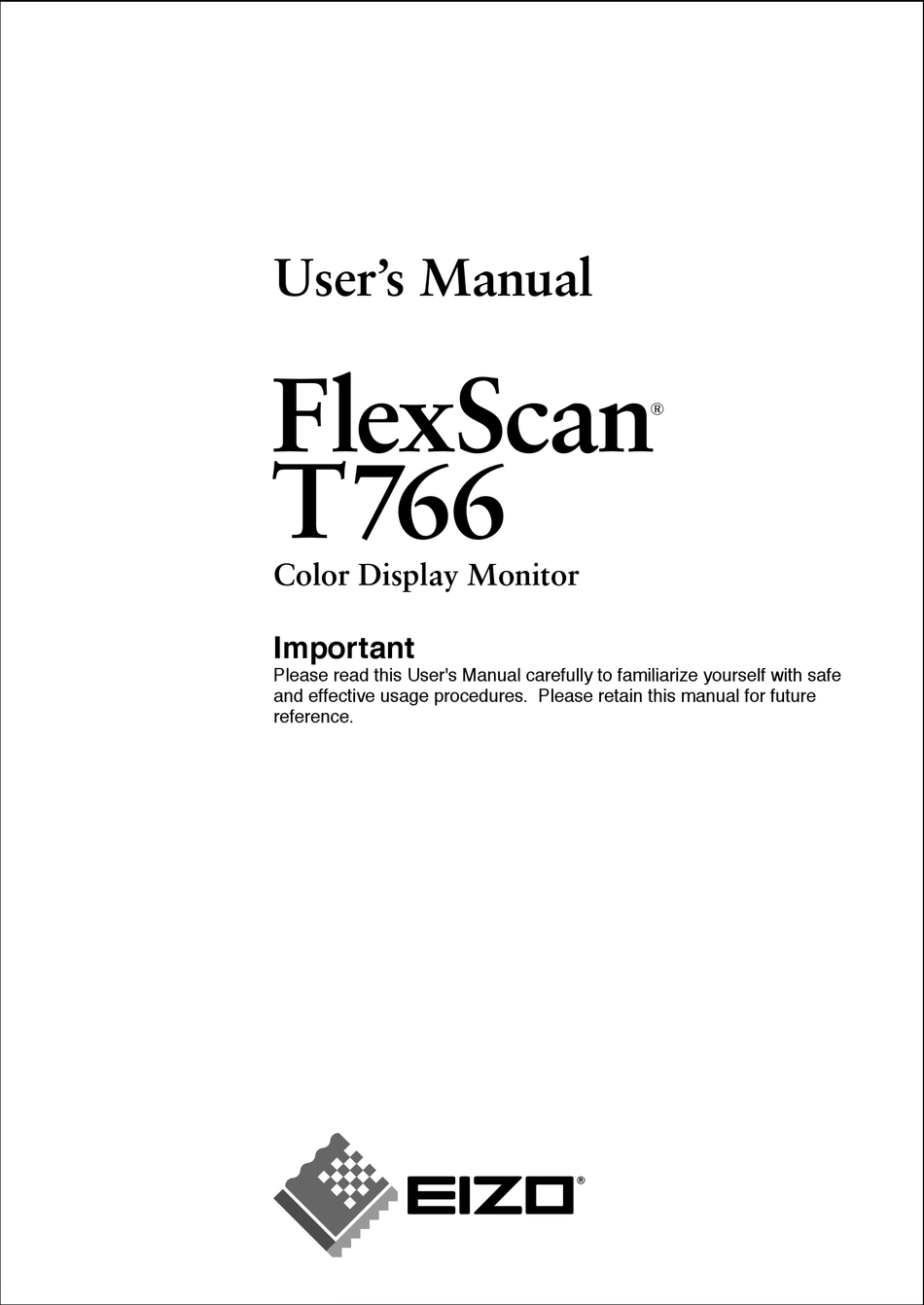

- Page 1 User’s Manual FlexScan T766 Color Display Monitor Important Please read this User's Manual carefully to familiarize yourself with safe and effective usage procedures. Please retain this manual for future reference. ‚...
-
Page 2: Safety Symbols
Eizo Nanao Corporation. Eizo Nanao Corporation is under no obligation to hold any submitted material or information confidential unless prior arrangements are made pursuant to Eizo Nanao Corporation's receipt of said information. -
Page 3: Table Of Contents
TABLE OF CONTENTS PRECAUTIONS ... 4 1. INTRODUCTION ... 8 1-1. Features ...8 1-2. Package Contents...8 1-3. Controls & Connectors ...9 2. INSTALLATION ... 10 2-1. Connecting the monitor to the PC ...10 2-2. Getting Ready for Operation ...12 3. SCREEN ADJUSTMENT ... 13 3-1. -
Page 4: Precautions
English PRECAUTIONS IMPORTANT! • This product has been adjusted specifically for use in the region to which it was originally shipped. If operated outside the region to which it was originally shipped, the product may not perform as stated in the specifications. •... - Page 5 WARNING Keep small objects or liquids away from the unit. Small objects accidentally falling through the ventilation slots into the cabinet or spillage into the cabinet may result in fire, electric shock, or equipment damage. If an object or liquid falls/spills into the cabinet, unplug the unit immediately. Have the unit checked by a qualified service engineer before using it again.
- Page 6 English WARNING The equipment must be connected to a grounded main outlet. Not doing so may cause in fire or electric shock. Use the correct voltage. Do not overload your power circuit, as this may result in fire or electric shock.
- Page 7 CAUTION Handle with care when carrying the unit. Disconnect the power cord and cables and remove the optional unit. Moving the unit with the cord or the option attached is dangerous. It may result in injury or equipment damage. Do not move it alone. Always work with another person. Moving it alone may cause lower back pain.
-
Page 8: Introduction
• Please retain the packing materials for future transference. • The EIZO USB cable is used when using the software in the EIZO CRT Utility Disk. For information on the software, refer to the readme.txt in the EIZO CRT Utility Disk. -
Page 9: Controls & Connectors
See page 21 for further details. Regarding the "Off Timer", see page 19. Power Terminal can be used with an optional i⋅Sound Sound Unit. USB Port upstream is used when using the software EIZO CRT Utility Disk. (See page 11.) Rear... -
Page 10: Installation
English 2. INSTALLATION 2-1. Connecting the monitor to the PC NOTE • Be sure that the power switches of both of the PC and the monitor are OFF. Plug the signal cable into the connector at the rear of the monitor and the other end of the cable into the video connector on the PC. - Page 11 Refer to the "5. TROUBLESHOOTING" (See page 23) for additional advice). When using the software in the EIZO CRT Utility Disk: Connect the upstream port of the monitor to the downstream port of the USB compliant PC or another hub with the USB cable.
-
Page 12: Getting Ready For Operation
English 2-2. Getting Ready for Operation Try each setting procedure if necessary in the following cases. The display image size and/or position is not appropriate. → Press the AUTO/FINE MODE button on the front panel for more than 2 seconds. The AUTO-SIZING function centers the displayed image, aligning the image's borders with respect to the monitor frame. -
Page 13: Screen Adjustment
3. SCREEN ADJUSTMENT NOTE • Allow the monitor to stabilize for at least 30 minutes before making image adjustments. 3-1. How to use the ScreenManager Use the control pad on the front panel. The control pad can be pressed in 5 directions, Enter, Up, Down, Left and Right. Entering the ScreenManager Display the ScreenManager Main menu by pressing the Enter of the control pad. -
Page 14: Adjustments And Settings
English NOTE • Leaving the ScreenManager idle for 45 seconds or more will turn the adjustment off automatically without saving. • The brightness and contrast can be adjusted by pressing the Up, Down, Left and Right keys of the control pad directly. Press the center of the control pad to save and exit the settings after the adjustment. -
Page 15: Fine Contrast
3-2. Fine Contrast The fine contrast modes differ in brightness and contrast settings. Select the mode that is the best suited to the application in use. The mode can be changed with the AUTO/FINE MODE button that is on the front of the monitor. To select the most suitable brightness mode →... -
Page 16: Color
English 3-3. Color By using the <Color Mode> in the <Color> menu, the adjustment mode can be selected from standard mode (to set the color temperature and the color restoration), custom mode (to adjust each color tone, (Red, Green and Blue) and sRGB mode. These modes allow you to adjust the color settings according to your preference. - Page 17 <Custom> mode: to adjust each color, (Red, Green and Blue) → Adjust the < Gain (p. 32)>, < Change the <Color Mode> to <Custom>. The values shown in percentages (%) for both the Cutoff and Gain are available only as a reference tool. [Adjustment Procedure] (1) First, set the monitor to maximum contrast and brightness.
-
Page 18: Power Save
English 3-4. Power Save There are two power save settings. Choose the setting which matches your environment. Set the power saving by using <Others> menu. NOTE • Do your part to conserve energy, turn off the monitor when you are finished using it. Complete energy use can only be accomplished by disconnecting the monitor's power supply cord from the plug receptacle. -
Page 19: Adjustment Lock
To use the Monitor's off timer system → Select "Enable" in the <Off Timer> menu. Without the PC's power saving system, the off timer allows the monitor to enter a power save mode after a predetermined amount of time has lapsed. [Procedure] Select "Enable"... -
Page 20: Connecting Two Pcs To The Monitor
English 3-6. Connecting two PCs to the Monitor Two PCs can be connected to the monitor through the BNC/D-Sub input connections on the rear of the monitor. (Example) Standard graphics board Selecting the Active input Every time the BNC/D-Sub selection button is pressed, the input changes in order. [Automatically selecting the priority input signal for screen] The monitor will automatically detect the input signal of either the BNC or D-Sub connection for display. -
Page 21: Making Use Of Usb (Universal Serial Bus)
• PC equipped with USB ports or another USB hub connected to the USB compliant PC • Windows 98/2000/XP // Mac OS 8.5.1 or later • EIZO USB Cable (MD-C93) NOTE • The USB hub function may not work properly depending on the PC, OS or peripherals. - Page 22 The software in the EIZO CRT Utility Disk For information on the software, refer to the readme.txt in the EIZO CRT Utility Disk. 4. MAKING USE OF USB (Universal Serial Bus) Monitor...
-
Page 23: Troubleshooting
5. TROUBLESHOOTING If a problem persists even after applying the suggested remedies, contact an EIZO dealer. Problems 1. No picture • Indicator status: Off • Indicator status: Green • Indicator status: Flashing Green • Indicator status: Flashing Yellow 2. Following messages appear. (Error messages shown below will remain on the screen for 30 seconds.) - Page 24 To eliminate the vibration, set the adjustment level to lower percentage or 0%. If the volume level of the EIZO optional i⋅Sound speaker is too high, it may, in some cases, cause a slight vibration. To eliminate, turn down the volume of the speaker.
- Page 25 Problems The entire screen appears too dark or bright. 8. Color is abnormal. • The entire screen appears bluish or reddish. • Color purity is not uniform. • Misconvergence of colors (red, green, blue) <Color Restoration> does not work properly. 10.
- Page 26 Damper wires are used to support the CRT's aperture grille, and are visible as thin dark lines across the screen. All EIZO aperture grille type CRTs include two such horizontal wires. The aperture grille itself Filaments is a grid of taut metal filaments that spans the entire screen from top to bottom.
- Page 27 English Problems Points to check with possible solutions Check that the USB cable is correctly connected. 14. USB Function cannot be setup Check that the PC and USB compliant. (Please consult the manufacturer of each device about USB support.) When using the Windows 98 or later, check the BIOS setting of the PC for the USB.
-
Page 28: Cleaning
English 6. CLEANING Periodic cleaning is recommended to keep the monitor looking new and to prolong its operational lifetime. Clean the cabinet and CRT areas as follows: NOTE • Never use thinner, benzene, alcohol (ethanol, methanol, or isopropyl alcohol), abrasive cleaners, or other strong solvents, as these may cause damage to the cabinet or CRT. -
Page 29: Specifications
Viewable image size: 452 mm (17.8”) 100-120/200-240 VAC ± 10%, 50/60 Hz, 1.8 A/0.9 A Normal/Max: 120 W/ 165 W** (**With EIZO optional speaker) PowerManager Mode 1: Less than 10 W PowerManager Mode 2: Less than 3 W D-Sub mini 15 pin connector and BNC x 5 (switchable) -
Page 30: Preset Timing
English Factory Defaults Contrast Moiré Reduction Signal Filter Video Level Color Mode/Temperature PowerManager Off Timer Input Priority Fine Contrast Movie Mode Preset Timing Resolution 640 x 480 (Text) 1280 x 1024 VESA Dimensions (17.8) (14.3) (10.7) (17.9) ( 12.0) 47.5 (1.9) FRONT 7. -
Page 31: Pin Assignment
Pin Assignment D-Sub mini 15 pin connector Green Video / Green composite BNC-Connector Input signal Separate sync Composite sync Sync on Green Signal Signal Red Video Red ground Green ground sync Blue video Blue ground Ground Ground Connector H.Sync V.Sync H.Sync V.Sync composite... -
Page 32: Glossary
5,000K: Often used in printing industry. 6,500K: Good for video-image display. 9,300K: Default setting for your EIZO monitor. Cutoff and Gain All colors displayed on the screen are produced by the combination of the light's three primary colors, red, green, and blue. - Page 33 Resolution Resolution is expressed as the number of dots (pixels) displayed on the screen. A larger number of dots produces a more sharply defined (a higher-resolution) image. Note that for a given screen size the dot size decreases as the number of dots increases: a 640 x 480 (dot x line) resolution uses larger pixels than a 1024 x 768 resolution.
- Page 34 [Applicable to gray (standard color version only).] Why do we have environmentally labelled computers? In many countries, environmental labelling has become an established method for encouraging the adaptation of goods and services to the environment. The main problem, as far as computers and other electronics equipment are concerned, is that environmentally harmful substances are used both in the products and during their manufacture.
- Page 35 Environmental Requirements Flame retardants Flame retardants are present in printed circuit boards, cables, wires, casings and housings. Their purpose is to prevent, or at least to delay the spread of fire. Up to 30% of the plastic in a computer casing can consist of flame retardant substances. Most flame retardants contain bromine or chloride, and those flame retardants are chemically related to another group of environmental toxins, PCBs.
-
Page 36: Fcc Declaration Of Conformity
Note Use the attached specified cable below or EIZO signal cable with this monitor so as to keep interference within the limits of a Class B digital device. - AC Cord - Shielded Signal Cable (enclosed) This Class B digital apparatus complies with Canadian ICES-003. - Page 37 Augenbelastung bei zu geringem Zeichenkontrast.) Recycle Auskunft Die Rücknahme dieses Produktes nach Nutzungsende übernimmt EIZO in Deutschland zusammen mit dem Partner von Roll MBB Recycling GmbH.Dort werden die Geräte in ihre Bestandteile zerlegt, die dann der Wiederverwertung zugeführt werden. Um einen Abholtermin zu vereinbaren und die aktuellen Kosten zu erfahren, benutzen Sie bitte folgende Rufnummer: 02153-73 35 00.
- Page 38 EIZO NANAO CORPORATION 153 Shimokashiwano, Matto, Ishikawa 924-8566 Japan Phone: + 81 76 277 6792 Fax: + 81 76 277 6793 EIZO NANAO TECHNOLOGIES INC. 5710 Warland Drive, Cypress, CA 90630 Phone: +1 562 431 5011 Fax: +1 562 431 4811 http://www.eizo.com/...
