RocketFish RF-HTS115 Quick Setup Manual

10-outlet Power Manager with
Surge Protection and Noise Filtering
RF-HTS115
QUICK SETUP GUIDE
Congratulations on your purchase of this Rocketfish Power Manager
with surge protection and noise filtering.
Your power manager:
• Reduces energy consumption to save environmental resources
and lower your electric bill
• Provides surge protection for sensitive electronic devices
• Incorporates noise filtering to provide "clean" power that will
maximize the performance of your equipment

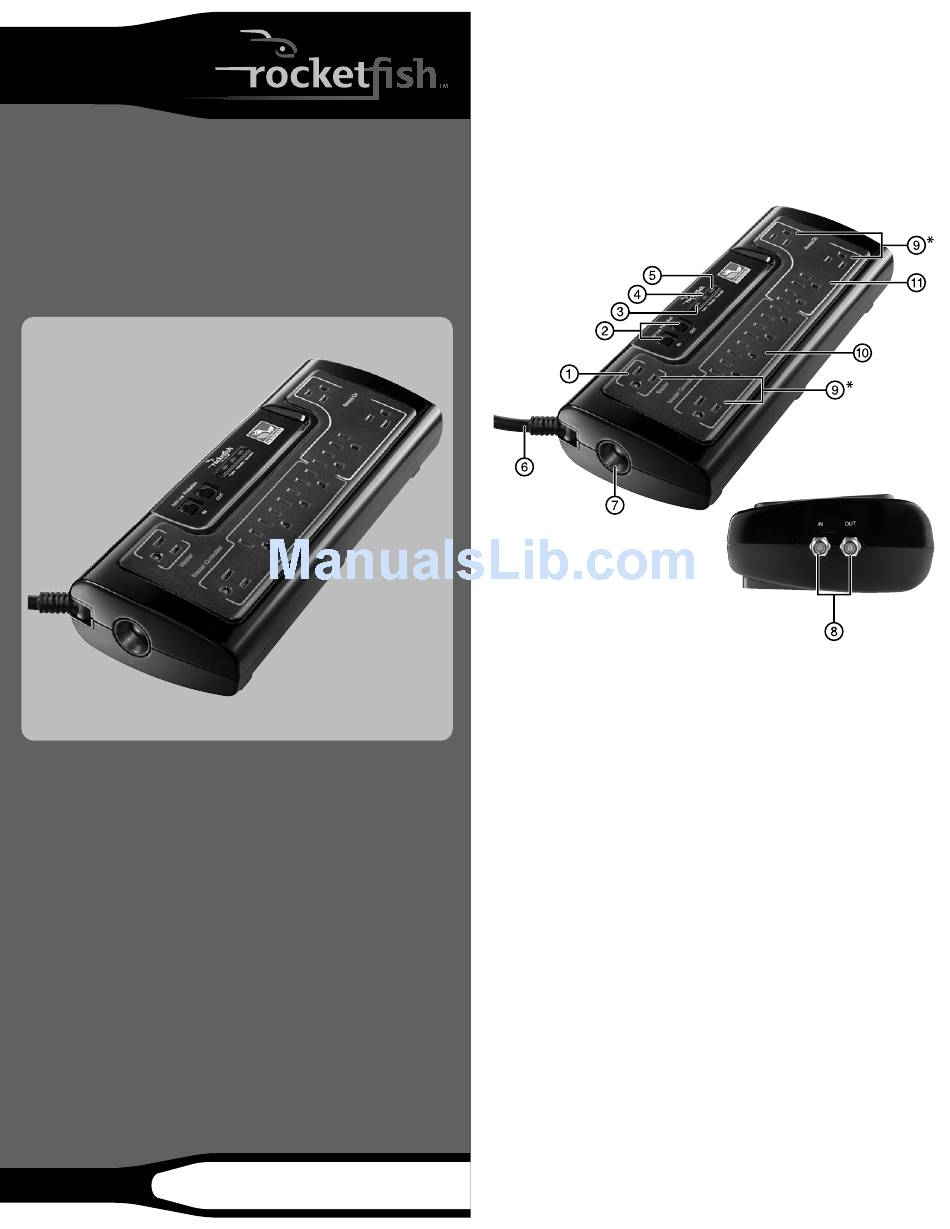

Features
*Two AC adapter spaced outlets on the far
left end and 2 outlets on the far right end
1 One master outlet - controls power to the five
master-controlled outlets.
2 Data line surge protection – protects your incoming RJ11
(phone) or RJ45 (Ethernet) line from surges and spikes.
3 Power LED indicator - Lights to indicate that the power
manager is receiving adequate power from the AC outlet.
4 Protected LED indicator - Lights when the surge protection
feature is working properly. If this LED does not light or goes
out, the surge protection feature has reached full capacity and
can no longer absorb additional surges and spikes. The power
manager should be replaced if this light goes out.
5 Grounded LED indicator – Lights when a properly grounded AC
outlet is detected. If this LED does not light, we recommend that
you contact a certified, licensed electrician to inspect your
wiring.
6 7 ft (2.1 m) Soft-Flex™ power cord with right-angle/off-set
plug – enables placement of the Power Manager in the desired
location, furniture to be placed as close as possible to the wall
and will not block the second AC outlet.
7 Main power switch/circuit breaker – controls power to all AC
outlets on the Power Manager, and allows the unit to be reset in
the event of a circuit overload (after the overload condition has
been resolved).
8 Coaxial cable surge protection – protects your incoming
coaxial cable line from surges and spikes.
9 Four AC adapter spaced outlets – accommodate bulky AC
adapter plugs.
