HP xw8200 Install Manual

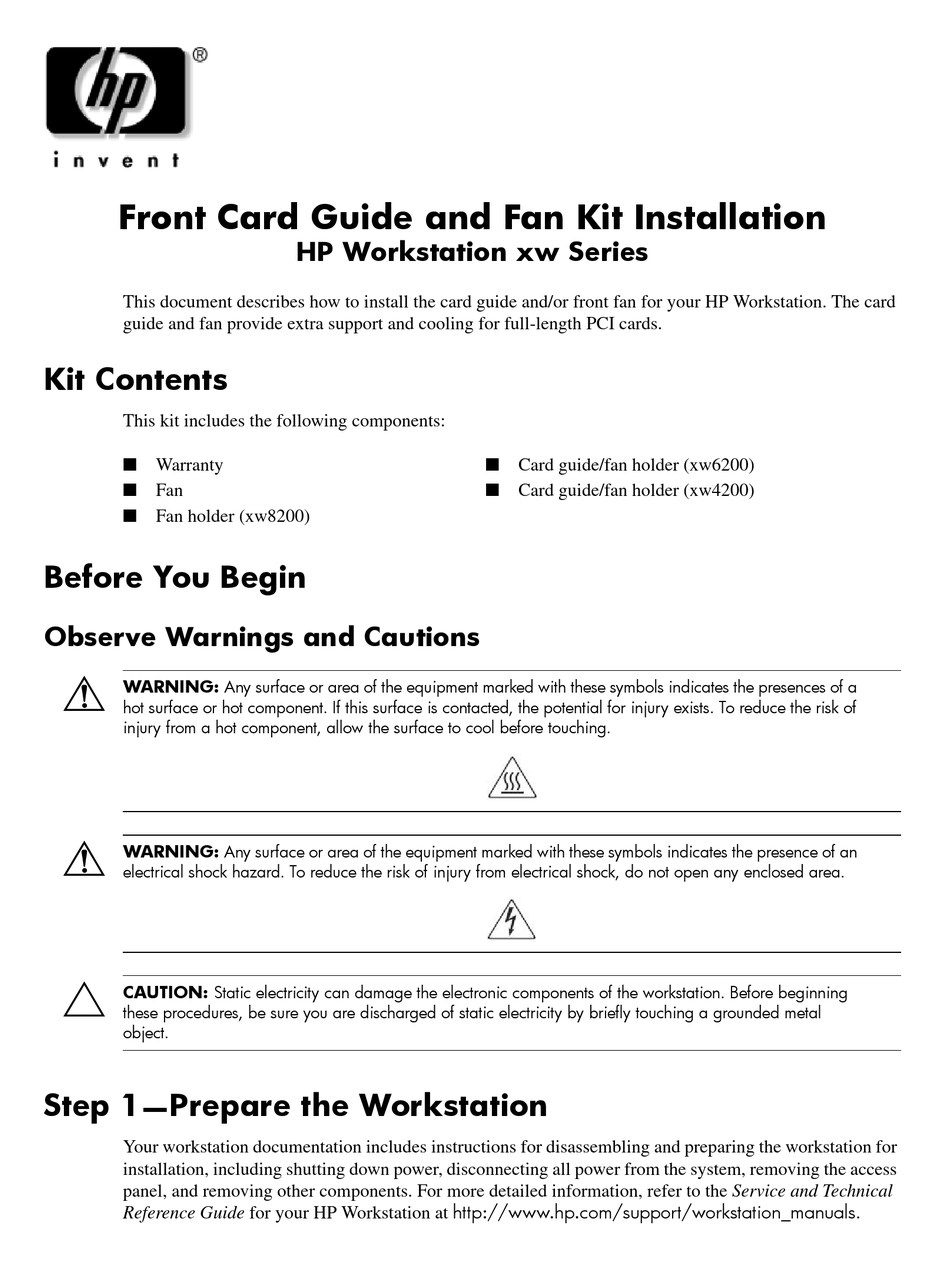

Front Card Guide and Fan Kit Installation
This document describes how to install the card guide and/or front fan for your HP Workstation. The card
guide and fan provide extra support and cooling for full-length PCI cards.

Kit Contents

This kit includes the following components:
■ Warranty
■ Fan
■ Fan holder (xw8200)

Before You Begin

Observe Warnings and Cautions

WARNING: Any surface or area of the equipment marked with these symbols indicates the presences of a
Å
hot surface or hot component. If this surface is contacted, the potential for injury exists. To reduce the risk of
injury from a hot component, allow the surface to cool before touching.
WARNING: Any surface or area of the equipment marked with these symbols indicates the presence of an
Å
electrical shock hazard. To reduce the risk of injury from electrical shock, do not open any enclosed area.
CAUTION: Static electricity can damage the electronic components of the workstation. Before beginning
Ä
these procedures, be sure you are discharged of static electricity by briefly touching a grounded metal
object.
Step 1—Prepare the Workstation
Your workstation documentation includes instructions for disassembling and preparing the workstation for
installation, including shutting down power, disconnecting all power from the system, removing the access
panel, and removing other components. For more detailed information, refer to the Service and Technical
Reference Guide for your HP Workstation at http://www.hp.com/support/workstation_manuals.
HP Workstation xw Series
■ Card guide/fan holder (xw6200)
■ Card guide/fan holder (xw4200)
