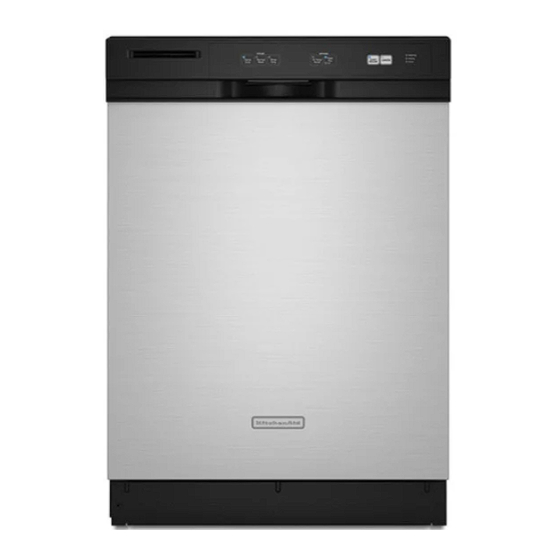

For Models: KUDS30IVBL0, KUDS30IVWH0, KUDS30IVBT0, KUDS30IVSS0, KUDS30IVBS0
5−08 Litho in U.S.A. (els)(bay)

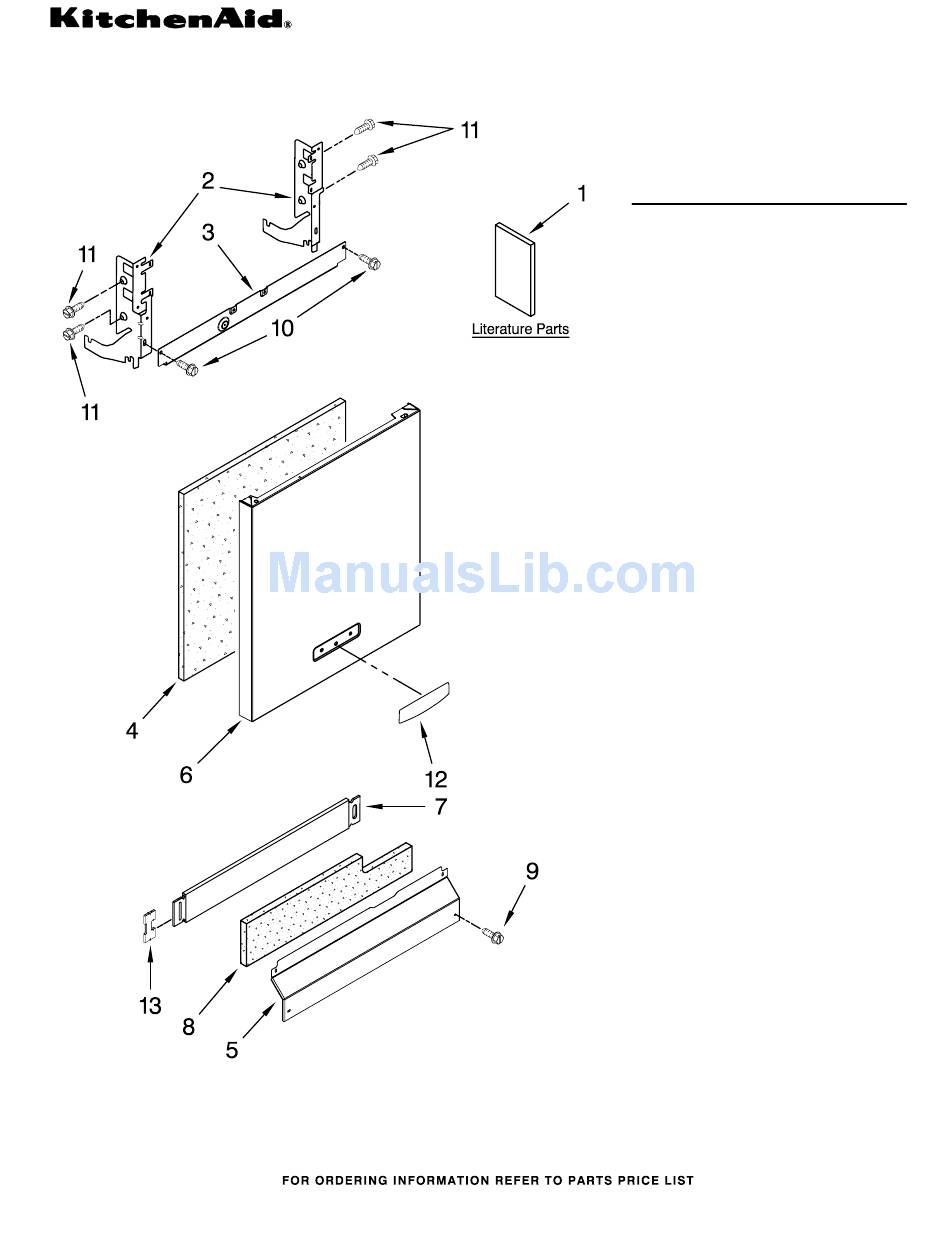

DOOR AND PANEL PARTS
(Black)
(White)
(Biscuit)
(Stainless) (Black/Stainless)
Illus.
No.
1
2
3
4 W10073520 Insulation, Door
5
6
7
8
9
10
11
12
13
1
UNDERCOUNTER
DISHWASHER
Part
No.
DESCRIPTION
Literature Parts
W10056407 Instructions,
Installation
W10247455 Energy Guide
W10205938 Guide, Use & Care
Spanish
W10205937 Guide, Use & Care
English/French
W10130990 Tech Sheet
Arm, Hinge
8534854 Left
8534853 Right
8268983 Stiffener, Door
Access Panel
8573255 Black
8573256 White
8573257 Biscuit
Panel, Full Front
(Includes Items
4, 12 & 13)
W10077995 Black
W10077996 White
W10077997 Biscuit
W10137620 Stainless
Toe Panel
(Includes
Items 8 & 14)
8558252 Black
8558253 White
8558254 Biscuit
8268581 Insulation,
Toe Panel
Screw
302868 Black
3400836 White
3400865 Biscuit
304392 Screw
3400071 Screw
Nameplate
W10243392 Black
W10243393 White
W10243394 Biscuit
W10243391 Stainless
8269016 Clip, Grounding
Part No. W10246516 Rev. B
