- Page 1 Wireless Signal Booster User’s Manual...
-
Page 2: Warning Statement
ENGLIS H Federal Communication Commission Interference Statement Federal Communications Commission (FCC) Requirements, Part 15 1. Reorient or relocate the receiving antenna. 2. Increase the separation between the equipment and receiver. 3. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -
Page 3: Hardware Description

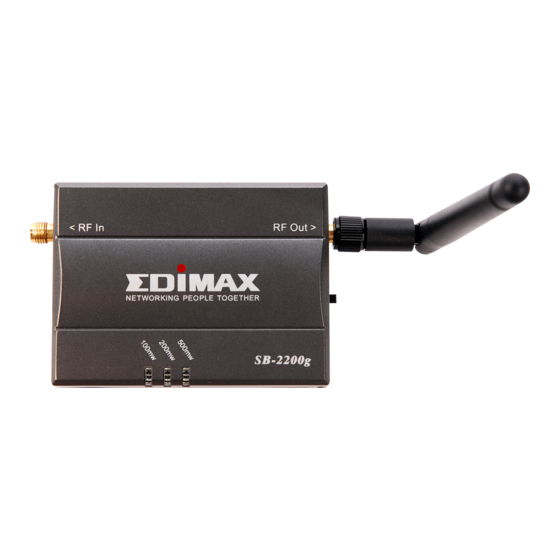

Hardware description: Front Side: Status LED: Display the selected output power status SB-2200g : 100mw / 200mw / 500mw SB-2100g : Low / Mid / High ( by ETSI regulations, the output power ar e “Low” = 100mW) Input Connector: Connect to Wirel ess LAN devic es Output Power Swit ch (for SB-2200g onl y) -
Page 4: Hardware Installation
Hardware installation: Product s pecification: Network / Operati ng Range: IEEE 802.11g / 802.11g WLAN Standard, 2400~2500 MHz Frequenc y Res ponse : +/- 1 dB Output Power : Max : 27dBm (for SB-2200g onl y) Input Power : 8~18 dBm Max. Receiver Gai n: 10-13 dBm, 12 dBm Typical, N oise Figure: 3.5 dB typical Connectors : Input / Antenna : Reverse SMA J ac k... -
Page 5: System Requirements
S ystem Requirements: - 802.11b or 802.11g Wireless Networ k - Certified 802.11b/g Wireless AP / Router / PCI N etwor k Adapter with a Removabl e Antenna. Ethernet A networ king standar d usi ng cables (Categor y 5) to create a networ k. - Page 6 • 802.11 - applies to wireless LANs (Networ ks) and provides 1 or 2 Mbps transmission in the 2.4 GHz band using either fr equenc y hopping spread spectrum (FHSS) or direct s equenc e spr ead spectrum (DSSS). • 802.11b (also referred to as 802.11 High R ate or Wi-Fi) - an extension to 802.11 that applies to wireless LANs and provides 11 Mbps transmission ( with a fallbac k to...
