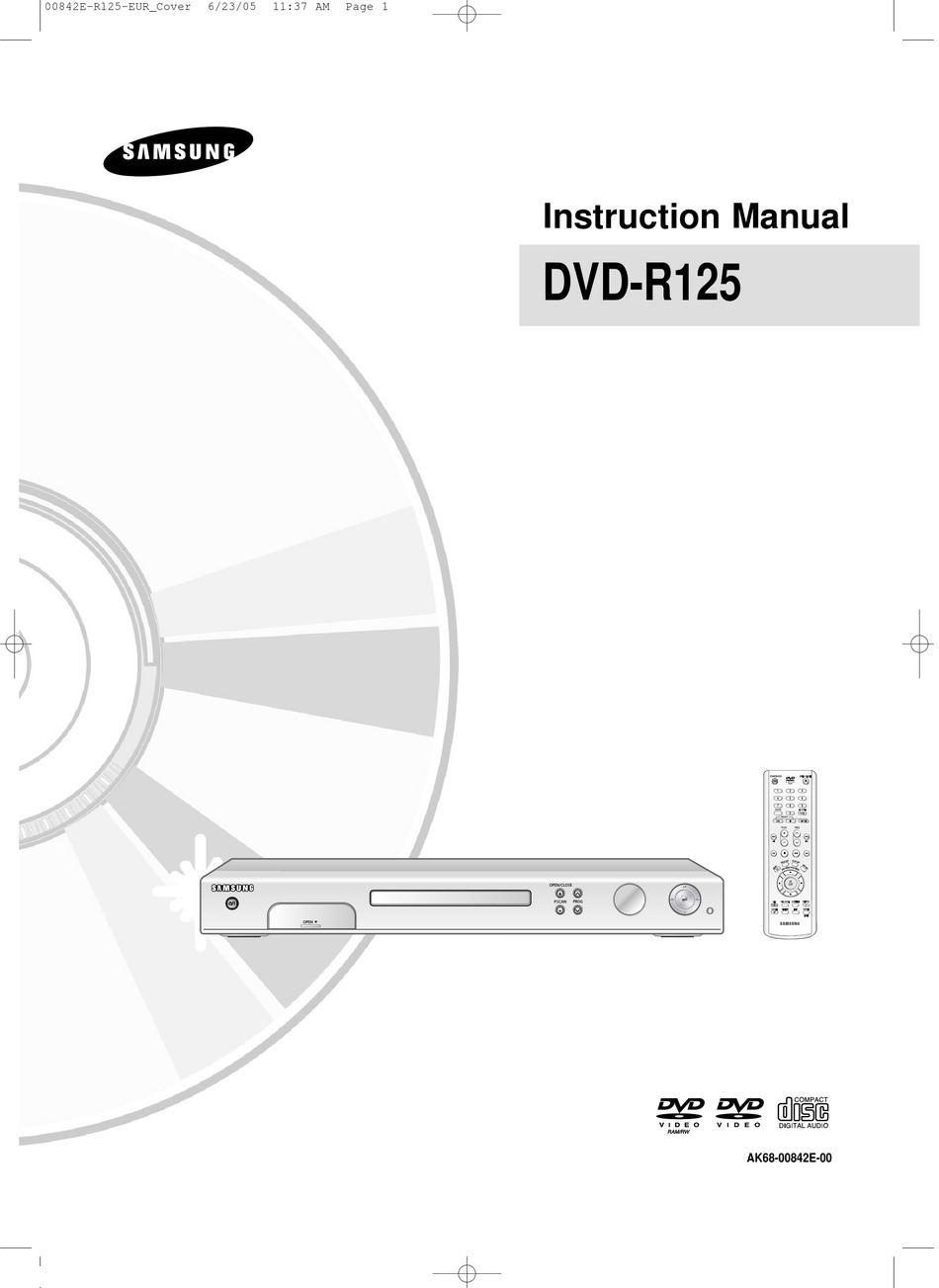

Instruction Manual
DVD-R120/R121
DVD-R125
AK68-00842E-00

Advertisement

Table of Contents
loading

Related Manuals for Samsung DVD-R125

Summary of Contents for Samsung DVD-R125

  • Page 1 00842E-R125-EUR_Cover 6/23/05 11:37 AM Page 1 Instruction Manual DVD-R120/R121 DVD-R125 AK68-00842E-00...

  • Page 2: Warning

    00842E-R125-EUR_02~17 6/23/05 11:37 AM Page 2 MPORTANT NOTE Warning WARNING CAUTION...

  • Page 3: Precaution

    00842E-R125-EUR_02~17 6/23/05 11:37 AM Page 3 Precaution STANDBY/ON Important Safety Instructions Maintenance of Cabinet Disc Handling Holding discs DVD-RAM, DVD-RW and DVD-R DVD-Video, Audio CD Cautions on handling discs Handling Cautions...

  • Page 4: Disc Storage

    This unit can play back DVD-R discs recorded and Only CD-R discs with MP3 files recorded with finalised with a Samsung DVD video recorder. It may ISO9660 or JOLIET format can be played back not be able to play some DVD-R discs depending on Only MP3 files with the ".mp3", ".MP3"...
  • Page 5 00842E-R125-EUR_02~17 2005.6.28 2:22 AM Page 5 A DVD-RW blank disc is initialized to VR Mode when For more information on DVD recording compatibility, first initialized. consult your DVD-RAM/DVD-RW/DVD-R manufacturer. DVD-RW (VR mode) Use of poor quality DVD-RAM/DVD-RW/DVD-R discs - This is a format that is used for recording data on a may cause following unexpected problems including, DVD-RAM or DVD-RW disc.

  • Page 6: Table Of Contents

    00842E-R125-EUR_02~17 6/23/05 11:37 AM Page 6 Other type of connecting the Audio output cable ..20 Contents Getting Started Getting Started Connecting HDMI/DVI to a TV........22 Warning................2 Precaution ..............3 Connecting to AV3 IN, DV input jack....23 System Setup System Setup General Features............8 On-Screen Menu Navigation........24 Before reading the user’s manual......9 Plug &...
  • Page 7 00842E-R125-EUR_02~17 6/23/05 11:37 AM Page 7 Recording Recording Before Recording.............40 Playing an Audio CD/MP3 ........62 Playing a Picture ............66 Playing an MPEG4 ...........67 Playing the Title List..........68 Editing Recording the current TV programme you are Editing watching ..............42 Basic Editing (Title List) ........... Recording from external equipment you are watching ..............44 Copying from a Camcorder ........45...

  • Page 8: General Features

    00842E-R125-EUR_02~17 6/23/05 11:37 AM Page 8 High quality progressive scan General Features A variety of functions with an easy-to-use user interface High quality digital audio and video recording and playback MPEG4 playback Selectable Recording Mode DivX Certification HDMI (High Definition Multimedia Interface) Automated Quality Adjustment for Timer Recording Creating a DVD video title using...

  • Page 9: Before Reading The User's Manual

    It should be noted that All rights reserved; No part or whole of this user’s the disc's data will be lost when manual may be reproduced or copied without the prior changing formats. written permission of Samsung Electronics Co. English -...
  • Page 10 00842E-R125-EUR_02~17 6/23/05 11:37 AM Page 10 Step 3 Step 6 Recording Finalising & Playing on other DVD components When using a DVD-RW disc in VR Mode When using a DVD-RW disc in Video Mode When using a DVD-R disc Step 4 Playing Step 5 Editing a recorded disc...

  • Page 11: Unpacking

    00842E-R125-EUR_02~17 6/23/05 11:37 AM Page 11 Unpacking Accessories Setting the Remote Control Preparing the Remote Control Install Batteries in the Remote Control If the remote does not operate properly: Dispose of batteries according to local environmental regulations. Do not put them in the household trash.
  • Page 12 00842E-R125-EUR_02~17 6/23/05 11:37 AM Page 12 To determine whether your television is compatible, follow the instructions below. STANDBY/ON Controllable TV Codes NOTE Then you can control the television using the following buttons after the TV button. NOTE...

  • Page 13: Description

    00842E-R125-EUR_02~17 6/23/05 11:37 AM Page 13 Description Front Panel 1. STANDBY/ON 7. DISPLAY 2. AV3 INPUT 8. SEARCH/SKIP 3. DV-INPUT 9. STOP 4. DISC TRAY 10. PLAY/PAUSE 5. OPEN/CLOSE 11. PROG ( PROG 6. P.SCAN 12. REC 13. Remote Control Reciever Front Panel Display...

  • Page 14: Rear Panel

    00842E-R125-EUR_02~17 6/23/05 11:37 AM Page 14 Rear Panel 1. DIGITAL AUDIO OUT(OPTICAL) 5. S-VIDEO OUT 2. DIGITAL AUDIO OUT(COAXIAL) 6. COMPONENT VIDEO OUT 7. AV1(TV) OUTPUT SCART Connector 3. AUDIO OUT 8. AV2(EXT) INPUT SCART Connector 9. HDMI OUT 4. VIDEO OUT In from aerial connector Out to TV connector NOTE...

  • Page 15: Tour Of The Remote Control

    00842E-R125-EUR_02~17 6/23/05 11:37 AM Page 15 Tour of the Remote Control 10. MENU Button 11. OK/DIRECTION Buttons (… … † † œ œ √ √ Buttons) 12. REC MODE Button 13. REC Button 14. CANCEL Button 15. REPEAT Button 16. OPEN/CLOSE Button 17.

  • Page 16: Connecting & Setting Up

    00842E-R125-EUR_02~17 6/23/05 11:37 AM Page 16 Quick Overview Connecting & Setting Up Connecting the DVD-Recorder † Additional connections † Antenna + DVD Recorder + external decoder box + TV † Other type of connecting the Video output cable † Other type of connecting the Audio output cable †...

  • Page 17: Connecting The Dvd-Recorder

    00842E-R125-EUR_02~17 6/23/05 11:37 AM Page 17 Connecting the DVD- Additional connections Recorder INPUT To RF IN - DVD mode To TV RF Cable To ANT INPUT - TV mode TV/DVD NOTE TV/DVD...

  • Page 18: Antenna + Dvd Recorder

    00842E-R125-EUR_18~41 6/23/05 11:38 AM Page 18 Antenna + DVD Recorder + Other type of connecting external decoder box + TV the Video output cable Case 1 : Case 2 : Case 3 : Wall S-Video, Component video and Progressive Output Modes DECODER...
  • Page 19 00842E-R125-EUR_18~41 6/23/05 11:38 AM Page 19 Case 1 : Connecting to a Video Case 2 : Connecting to an (Composite) output jack S-Video output jack yellow yellow...

  • Page 20: Other Type Of Connecting The Audio Output Cable

    00842E-R125-EUR_18~41 6/23/05 11:38 AM Page 20 Case 3 : Component Video Other type of connecting output jacks the Audio output cable Case 1 : Case 2 : Case 3 : Case 1 : Connecting to your TV COMPONENT green blue yellow white P.SCAN...
  • Page 21 00842E-R125-EUR_18~41 6/23/05 11:38 AM Page 21 Case 2 : Connecting to a stereo Case 3: Connecting to an AV amplifier with AV output jacks amplifier with a digital output jack white white...

  • Page 22: Connecting Hdmi/Dvi To A Tv

    HDMI (High Definition Multimedia Interface) HDMI connection description Case 2 : Connecting to a TV with DVI Jack HDMI OUT DVI IN Why does Samsung use HDMI? AUDIO (red and white) OUT AUDIO (red and white) IN CAUTION What is the HDCP?

  • Page 23: Connecting To Av3 In, Dv Input Jack

    00842E-R125-EUR_18~41 6/23/05 11:38 AM Page 23 Case 2 : Connecting a Connecting to AV3 IN, DV Camcorder to the DV IN jack input jack Case 1 : Case2 : Camcorder Case 1 : Connecting a VCR, Set-Top Box(STB), DVD recorder or Camcorder to the AV3 IN jacks INPUT NOTE...

  • Page 24: System Setup

    00842E-R125-EUR_18~41 6/23/05 11:38 AM Page 24 On-Screen Menu Navigation System Setup No Disc DVD-RAM(VR) Timer Record Disc Navigation Programme ShowView Disc Navigation Title List √ √ √ √ Timer Record DivX √ √ √ √ Setup Playlist Photo ShowView Extended : Off √...

  • Page 25: Plug & Auto Setup

    00842E-R125-EUR_18~41 6/23/05 11:38 AM Page 25 Plug & Auto Setup Channel scan Now, Scanning. CANCEL MENU Press 1 for English Touche 2 pour Français Drücken Sie 3 Für Deutsch Pulse 4 para Español Premere 5 per Italiano Druk op 6 voor Nederlands Auto channel scan completed successfully.

  • Page 26: Setting The Clock

    00842E-R125-EUR_18~41 6/23/05 11:38 AM Page 26 Check the date and time. …† Setup √ No Disc Setup Programme No Disc Setup Setup Time Date Auto Clock Programme System √ √ 12 : 00 01 / JAN / 2005 Clock Set √...

  • Page 27: Presetting Channels With The Auto Setup Function

    00842E-R125-EUR_18~41 6/23/05 11:38 AM Page 27 …† Auto Presetting Channels with √ Setup the Auto Setup function No Disc Install Programme Auto Setup √ √ Manual Setup Setup √ √ Your data will be lost. Press [OK] to continue, [MENU] to exit. MOVE RETURN EXIT...

  • Page 28: Presetting Channels With The Manual Setup

    00842E-R125-EUR_18~41 6/23/05 11:38 AM Page 28 …† Manual Presetting Channels with √ Setup the Manual Setup function No Disc Manual Setup Name Decoder Edit - - - - - - - √ √ - - - - - - - √...

  • Page 29: Setting Up The Language Options

    00842E-R125-EUR_18~41 6/23/05 11:38 AM Page 29 …† Setting up the Language √ Options Audio Language: Subtitle Language: Disc Menu Language: On-Screen Menu Language: DivX Subtitle: MENU No Disc Timer Record Programme ShowView √ √ Timer Record √ √ Setup ShowView Extended : Off √...

  • Page 30: Ep Mode Time Setting

    00842E-R125-EUR_18~41 6/23/05 11:38 AM Page 30 EP Mode Time Setting Automatic Chapter Creation REC MODE MENU MENU No Disc Timer Record Programme ShowView √ √ Timer Record √ √ Setup DVD-RW(V) Disc Navigation ShowView Extended : Off √ √ Disc Navigation Title List √...

  • Page 31: Setting Up The Front Display Options

    00842E-R125-EUR_18~41 6/23/05 11:38 AM Page 31 …† Setting up the Front √ Display Options MENU No Disc Timer Record Programme ShowView √ √ Timer Record √ √ Setup ShowView Extended : Off √ √ Do you want to create the chapter menu after this recording? MOVE RETURN...

  • Page 32: Setting Up Nicam Options

    00842E-R125-EUR_18~41 6/23/05 11:38 AM Page 32 …† Front Setting up NICAM Options √ Display No Disc System Programme EP Mode Time : 6Hours √ √ Chapter Creator : Off √ √ Setup Front Display : Bright Bright √ √ NICAM : On √...

  • Page 33: Divx(R) Registration

    00842E-R125-EUR_18~41 6/23/05 11:38 AM Page 33 …† NICAM Setting up the Audio √ Options No Disc System Programme EP Mode Time : 6Hours √ √ Chapter Creator : Off √ √ Setup Front Display : Bright √ √ NICAM : On √...

  • Page 34: Setting Up Video Output Options

    00842E-R125-EUR_18~41 6/23/05 11:38 AM Page 34 Setting up Video Output …† √ Options œ RETURN NOTE MENU Audio Options MENU No Disc Timer Record Programme ShowView √ √ Digital Output Timer Record √ √ Setup ShowView Extended : Off √ √ MOVE RETURN EXIT...

  • Page 35: Setting Up The Progressive Scan

    00842E-R125-EUR_18~41 2005.6.28 2:50 AM Page 35 Press the …† buttons to select Video Setting up the Progressive Output, then press the OK or √ button. scan No Disc Video Programme TV Aspect : 4:3 Letter Box √ √ 3D Noise Reduction : Off Setup √...

  • Page 36: Canceling The Progressive Scan

    00842E-R125-EUR_18~41 6/23/05 11:38 AM Page 36 Canceling the Progressive Setting up the scan Display(Video) Options P.SCAN MENU No Disc Timer Record œ √ Programme ShowView √ √ Timer Record √ √ Setup ShowView Extended : Off √ √ Press [Yes] to confirm Interlace scan mode. Otherwise press [No] MOVE RETURN...

  • Page 37: Output Selection

    00842E-R125-EUR_18~41 2005.6.28 2:34 AM Page 37 HDMI/DVI Resolution Display(Video) Options This function depends on disc type. It may not work for This setting is used when the DVD recorder is connected some disc types. by HDMI or DVI with Display devices (TV, projector, etc). No Disc Video Programme...

  • Page 38: Setting Up The Parental Control

    00842E-R125-EUR_18~41 6/23/05 11:38 AM Page 38 √ Setting up the Parental Password Control No Disc Parental Control Programme Password :Off √ √ Setup MOVE RETURN EXIT …† √ MENU No Disc Timer Record Programme ShowView √ √ Timer Record √ √ Setup œ...
  • Page 39 00842E-R125-EUR_18~41 6/23/05 11:38 AM Page 39 About the Rating Level About the Change Password …† Rating …† Change Level Password No Disc Parental Control No Disc Parental Control Programme Password : On √ √ Programme Password : On √ √ Rating Level : Level 1 Kids Setup...

  • Page 40: Before Recording

    00842E-R125-EUR_18~41 6/23/05 11:38 AM Page 40 Before Recording Recording Recordable discs Compatibility between Samsung and Other Company’s Recorder NOTE...

  • Page 41: Recording Formats

    00842E-R125-EUR_18~41 6/23/05 11:38 AM Page 41 Recording Formats Unformatted Disc Do you want to format this disc? Unrecordable video Uninitialized Disc Do you want to initialize this disc? You cannot record copy protected movie. DVD-RW(VR) Disc Manager Disc Navigation Disc Name √...

  • Page 42: Recording The Current Tv Programme You Are

    00842E-R125-EUR_42~51 6/23/05 11:39 AM Page 42 About INFO Key Recording the current TV programme you are watching Before you start Checking the available disc space (Disc Information) INFO OPEN/CLOSE OPEN/CLOSE œ √ Unformatted Disc Do you want to format this disc? Uninitialized Disc Do you want to initialize this disc?
  • Page 43 00842E-R125-EUR_42~51 6/23/05 11:39 AM Page 43 To stop recording PROG ( / ) number STOP ( REC MODE REC MODE …† NOTE Record Mode SP (02:12) Recording : PR 1 [SP] INFO INFO English -...

  • Page 44: Recording From External Equipment You Are

    00842E-R125-EUR_42~51 6/23/05 11:39 AM Page 44 Recording from external equipment you are watching To pause recording PROG ( / ) Before you start To stop recording STOP ( OPEN/CLOSE OPEN/CLOSE NOTE INPUT PR Number INPUT REC MODE REC MODE …† Record Mode SP (02:12)

  • Page 45: Copying From A Camcorder

    00842E-R125-EUR_42~51 6/23/05 11:39 AM Page 45 Copying from a Camcorder PLAY œ √ Before you start To stop recording STOP ( OPEN/CLOSE OPEN/CLOSE NOTE REC MODE REC MODE …† Record Mode SP (02:12) INPUT MOVE RETURN...

  • Page 46: Making A One Touch Recording (Otr)

    00842E-R125-EUR_42~51 6/23/05 11:39 AM Page 46 Making a One Touch INFO Recording (OTR) INFO PROG ( / ) INPUT AV1 AV2 AV3 OTR Mode 0:30 OTR is going to be ended soon and power will be turned off automatically. Press [OK] button to continue to use DVD-Recorder. To stop recording 0:30 1:00...

  • Page 47: Making A Timer Recording

    00842E-R125-EUR_42~51 6/23/05 11:39 AM Page 47 Source Making a Timer Recording Date Before you start Start/End Time Mode (Recording Mode) TIMER DVD-RAM(VR) Timer Record ShowView Disc Navigation √ √ Timer Record √ √ Playlist ShowView Extended : Off √ √ Disc manager Programme Setup...

  • Page 48: Flexible Recording (For Timer Recording Only)

    00842E-R125-EUR_42~51 6/23/05 11:39 AM Page 48 Editing the Scheduled Record List If the timer settings overlap To exit without saving the current setting MENU To return to the previous menu TIMER RETURN DVD-RAM(VR) Timer Record Disc Navigation ShowView √ √ Timer Record √...

  • Page 49: Deleting The Scheduled Record List

    00842E-R125-EUR_42~51 6/23/05 11:39 AM Page 49 …† Edit RETURN √ DVD-RAM(VR) Scheduled Record List Recordable Time 02:12 SP No. Source Date Start Mode V/P Edit No. 01 01 -- -- -- - -- --:-- --:-- √ √ Source Date Start End Mode PR 01 01/JAN(SAT) 12 : 00 14 : 00 SP Recordable Time 02:12 SP...

  • Page 50: Using The Showview Feature

    00842E-R125-EUR_42~51 2005.6.28 2:40 AM Page 50 Press the OK button. Using the ShowView The information concerning the programme is displayed. Feature When using the ShowView function for the first time with stored stations, the programme number flashes. This one time, you must enter the PR number manually by pressing the …†...

  • Page 51: Showview Extended

    00842E-R125-EUR_42~51 6/23/05 11:39 AM Page 51 ShowView Extended Recording the Standard Timer List MENU TV/DVD DVD-RAM(VR) Disc Navigation Disc Navigation Title List √ √ TV/DVD DivX √ √ Playlist Photo √ √ Disc manager Music √ √ Programme Setup To stop Recording STOP( MOVE RETURN...

  • Page 52: Playback

    00842E-R125-EUR_52~70 2005.6.28 2:44 AM Page 52 Before Playing Playback Read the following information before playing a disc. Region code (DVD-Video only) Both the DVD recorder and the discs are coded by region. These regional codes must This section introduces basic functions of playback match in order for the disc to play.

  • Page 53: Playing A Disc

    00842E-R125-EUR_52~70 6/23/05 11:40 AM Page 53 NOTE OPEN/CLOSE PLAY PLAY STOP NOTE PLAY Playing a Disc STOP CAUTION OPEN/CLOSE OPEN/CLOSE...

  • Page 54: Using The Search Functions

    00842E-R125-EUR_52~70 6/23/05 11:40 AM Page 54 Using the Disc Menu & Title Menu Using the Search Functions For DVD-VIDEO discs DISC MENU Searching through a Chapter or Track TITLE MENU SEARCH ( For DVD-RAM/RW/R discs TITLE LIST Title List SEARCH NOTE SEARCH Play List...

  • Page 55: About Anykey

    00842E-R125-EUR_52~70 6/23/05 11:40 AM Page 55 About ANYKEY Skipping Chapters or Tracks During play, you can search quickly through a chapter or track. SKIP ( If you press the œœ button, If you press the √√ button, Moving to a scene directly using the ANYKEY Slow Motion Play If you want to move to a title, a chapter or a track to find a desired scene.

  • Page 56: Using The Repeat Function

    00842E-R125-EUR_52~70 6/23/05 11:40 AM Page 56 If you want to move to a desired time to Using the Repeat Function help you find a scene. ANYKEY DVD-VIDEO Title 1/10 Chapter 1/40 Time 00:01:45 Subtitle Audio D 5.1CH Repeat Angle Zoom Playing Repeatedly(Repeat Playback) MOVE CHANGE...
  • Page 57 00842E-R125-EUR_52~70 6/23/05 11:40 AM Page 57 REPEAT Track Disc Using the ANYKEY button Using the ANYKEY button Music ANYKEY Repeat : Track Play Option : Normal 01. TRACK 1 00 : 52 01. TRACK 1 4:39 02. TRACK 2 4:31 DVD-VIDEO 03.

  • Page 58: Selecting The Subtitle

    00842E-R125-EUR_52~70 6/23/05 11:40 AM Page 58 Selecting the Subtitle Playing a Certain section Repeatedly(A-B Repeat Playback) Using the SUBTITLE button Using the SUBTITLE button Using the Using the ANYKEY ANYKEY button button SUBTITLE ANYKEY Subtitle DVD-VIDEO Title 1/10 Chapter 1/40 Time 00:01:45 Subtitle...
  • Page 59 00842E-R125-EUR_52~70 6/23/05 11:40 AM Page 59 Selecting the Audio language Changing the Camera Angle Using the AUDIO button Using the AUDIO button ANYKEY AUDIO Audio ENG Dolby Digital 5.1CH DVD-VIDEO Title 1/10 Chapter 1/40 Time 00:01:45 Subtitle Audio D 5.1CH Repeat Angle Zoom...
  • Page 60 00842E-R125-EUR_52~70 6/23/05 11:40 AM Page 60 Zooming-In Using Bookmarks ANYKEY DVD-VIDEO MARKER Title 1/10 1/40 Chapter 00:01:45 Time Subtitle D 5.1CH Audio Bookmark Repeat Angle Zoom MOVE CHANGE MOVE RETURN …† Zoom Bookmark …† œ √ MOVE PLAY CANCEL RETURN œ...
  • Page 61 00842E-R125-EUR_52~70 6/23/05 11:40 AM Page 61 Using Markers Playing back a bookmark MARKER MARKER œ √ Marker Bookmark RETURN MOVE PLAY CANCEL RETURN Clearing a bookmark Marker MARKER MOVE PLAY CANCEL RETURN œ √ œ √ Bookmark MOVE PLAY CANCEL RETURN Marker CANCEL...

  • Page 62: Playing An Audio Cd/Mp3

    00842E-R125-EUR_52~70 6/23/05 11:40 AM Page 62 Playing back a Marker Playing an Audio CD/MP3 MARKER Playing an Audio CD (CD-DA)/MP3 œ √ Marker Playing an Audio CD(CD-DA) MOVE PLAY CANCEL RETURN Music Repeat : Off Play Option : Normal 01. TRACK 1 00 : 52 01.
  • Page 63 00842E-R125-EUR_52~70 6/23/05 11:40 AM Page 63 Buttons on the Remote Control used for Audio CD(CD-DA) playback Playing an MP3 Disc Disc Navigation Disc Navigation DivX √ √ Photo √ √ Programme Music √ √ Setup MOVE RETURN EXIT …† Disc √...
  • Page 64 00842E-R125-EUR_52~70 6/23/05 11:40 AM Page 64 Buttons on the Remote Control used for MP3 playback MP3 Screen Elements Music Repeat : Off Play Option : Normal Straight from the heart 00 :22 ROOT Bryan Adams Bryan Adams_2 Straight from the heart ROOT Run to you 03/06...
  • Page 65 00842E-R125-EUR_52~70 6/23/05 11:41 AM Page 65 Play Option Mode To Programme Tracks ANYKEY ANYKEY Music Repeat : Off Play Option : Normal Music 01. TRACK 1 00 : 52 Repeat : Off Play Option : Normal 01. TRACK 1 4:39 02.

  • Page 66: Playing A Picture

    00842E-R125-EUR_52~70 6/23/05 11:41 AM Page 66 PLAY Playing a Picture œ √ Slide Show Speed DSC01189 MOVE RETURN Disc Navigation Disc Navigation DivX √ √ Photo √ √ Programme Music √ √ œ √ Setup MOVE RETURN EXIT …† Disc √...

  • Page 67: Playing An Mpeg4

    00842E-R125-EUR_52~70 6/23/05 11:41 AM Page 67 MPEG4 Function Description Playing an MPEG4 SEARCH SEARCH Disc Navigation Disc Navigation NOTE DivX √ √ Photo √ √ Programme Music √ √ Setup MOVE RETURN EXIT …† Disc √ Navigation Disc Navigation Disc Navigation DivX √...

  • Page 68: Playing The Title List

    00842E-R125-EUR_52~70 6/23/05 11:41 AM Page 68 …† Disc Playing the Title List √ Navigation DVD-RAM(VR) Title List No. Title Length Edit 01 19/APR/2005 1 00:00:21 √ √ 02 19/APR/2005 1 00:00:03 √ √ 03 20/APR/2005 2 00:00:15 √ √ 04 20/APR/2005 2 00:00:16 √...
  • Page 69 00842E-R125-EUR_52~70 6/23/05 11:41 AM Page 69 INFO Title List Screen Elements DVD-RAM(VR) DVD-RAM(VR) Title List Title List No. Title Length Edit No. Title Length Edit 01 19/APR/2005 1 00:00:21 00:00:21 √ √ √ √ 02 19/APR/2005 1 00:00:03 00:00:03 √ √ √...

  • Page 70: Editing

    00842E-R125-EUR_52~70 6/23/05 11:41 AM Page 70 Editing Title List Play List Recording or editing might not be completed if an error, such as a sudden power failure occurs. Please be aware that a material that has been damaged is unable to be retrieved to its original content.

  • Page 71: Basic Editing (Title List)

    00842E-R125-EUR_71~87 6/23/05 11:42 AM Page 71 …† œ √ Basic Editing (Title List) DVD-RAM(VR) Rename Sports(A1) Renaming(Labeling) a Title MOVE RETURN EXIT Back Space: CANCEL Using the TITLE LIST button Using the TITLE LIST button Space: Delete: TITLE LIST Clear: Save: Using the MENU button MENU...

  • Page 72: Deleting A Title

    00842E-R125-EUR_71~87 6/23/05 11:42 AM Page 72 Locking(Protecting) a Title œ √ DVD-RAM(VR) Title List No. Title Length Edit Using the TITLE LIST button Using the TITLE LIST button 01 Drama 00:00:21 √ √ 02 Music 00:00:03 √ √ 03 Sports 00:00:15 √...

  • Page 73: Deleting A Section Of A Title

    00842E-R125-EUR_71~87 6/23/05 11:42 AM Page 73 …† Deleting a Section of a Title Delete √ DVD-RAM(VR) Title List No. Title Length Edit 01 Drama 00:00:21 √ √ 02 Music 00:00:03 √ √ Using the TITLE LIST button Using the TITLE LIST button 03 Sports 00:00:15 Play...
  • Page 74 00842E-R125-EUR_71~87 6/23/05 11:42 AM Page 74 Delete DVD-RAM(VR) Edit Title List DVD-RAM(VR) Edit Title List Title List No. 05 Title List No. 05 Start Start Start 00:00:06 Start 00:00:06 00:10:15 Delete 00:00:06 Delete Sports(A1) Sports(A1) Return 21/APR/2005 11:50 Return 00:10:15 21/APR/2005 11:50 00:00:00 MOVE...

  • Page 75: Advanced Editing (Playlist)

    00842E-R125-EUR_71~87 6/23/05 11:42 AM Page 75 Advanced Editing DVD-RAM(VR) Make Scene (Playlist) Scene No. 001 Start Start 00:00:10 Title List: 1/6 00:10:00 Make Creating a Playlist New Playlist Return 19/APR/2005 12:00 00:10:00 MOVE RETURN EXIT MENU …† - To make a new playlist - Playlist √...

  • Page 76: Playing Entries In The Playlist

    00842E-R125-EUR_71~87 6/23/05 11:42 AM Page 76 Playing Entries in the Playlist …† Play DVD-RAM(VR) Edit Playlist No. Title Length Edit 01 23/APR/2005/0 00:00:21 √ √ 02 23/APR/2005/0 00:00:03 √ √ 03 24/APR/2005/1 00:00:15 Play √ √ 04 24/APR/2005/1 00:00:16 Rename √...

  • Page 77: Renaming A Playlist Entry

    00842E-R125-EUR_71~87 6/23/05 11:42 AM Page 77 Renaming a Playlist Entry …† œ √ DVD-RAM(VR) Rename Dolphin PLAY LIST MOVE RETURN EXIT DVD-RAM(VR) Edit Playlist No. Title Length Edit 01 23/APR/2005/0 00:00:21 √ √ 02 23/APR/2005/0 00:00:03 √ √ 03 24/APR/2005/1 00:00:15 √...

  • Page 78: Editing A Scene For The Playlist

    00842E-R125-EUR_71~87 6/23/05 11:42 AM Page 78 Editing a Scene for the Playlist Playing a Selected Scene …† œ √ PLAY LIST DVD-RAM(VR) Edit Scene Scene No. Playlist No. 3 DVD-RAM(VR) Edit Playlist Play No. Title Length Edit Modify 01 Science 00:00:17 √...
  • Page 79 00842E-R125-EUR_71~87 6/23/05 11:42 AM Page 79 Modifying a Scene (Replacing a Scene) DVD-RAM(VR) Modify Scene Scene No. 002 Start …† œ √ Start 00:00:25 Title List: 1/6 00:00:30 Change Natural Cancel 23/APR/2005 03:34 00:00:30 MOVE RETURN EXIT DVD-RAM(VR) Edit Scene Scene No.
  • Page 80 00842E-R125-EUR_71~87 6/23/05 11:42 AM Page 80 Moving a Scene (Changing the Position of a Scene) NOTE …† œ √ Adding a Scene DVD-RAM(VR) Edit Scene Scene No. Playlist No. 3 Play Modify 00:00:26 00:00:07 00:00:04 Move …† œ √ 00:00:03 00:00:11 00:00:04 Delete...

  • Page 81: Copying A Playlist Entry To The Playlist

    00842E-R125-EUR_71~87 6/23/05 11:42 AM Page 81 Copying a Playlist Entry to the Playlist DVD-RAM(VR) Add Scene Scene No. 004 Start Using the PLA LIST button Using the PLA LIST button Start 00:00:15 Title List: 1/6 00:00:35 Sclence Cancel 23/APR/2005 06:43 00:00:35 PLAY LIST MOVE...

  • Page 82: Deleting A Playlist Entry From The Playlist

    00842E-R125-EUR_71~87 6/23/05 11:42 AM Page 82 …† Delete NOTE MENU DVD-RAM(VR) Edit Playlist No. Title Length Edit 01 Science 00:00:17 √ √ 02 Sky 00:00:06 √ √ 03 Dolphin 00:00:06 Play √ √ 04 Natural 00:00:37 Rename √ √ Dolphin 05 Dolphin 00:00:06 Edit Scene...

  • Page 83: Disc Manager

    00842E-R125-EUR_71~87 6/23/05 11:42 AM Page 83 …† Disc Manager œ √ DVD-RAM(VR) Rename Disc Editing the Disc Name MOVE RETURN EXIT MENU INFO DVD-RAM(VR) Disc Navigation Title List Disc Navigation √ √ DivX √ √ …† œ √ Save Playlist Photo √...

  • Page 84: Disc Protection

    00842E-R125-EUR_71~87 6/23/05 11:42 AM Page 84 Disc Protection Formatting a Disc MENU MENU DVD-RAM(VR) Disc Navigation DVD-RAM(VR) Disc Navigation Disc Navigation Title List √ √ DivX √ √ Playlist Disc Navigation Title List √ √ Photo √ √ DivX √ √ Playlist Disc manager Music...

  • Page 85: Delete All Title Lists

    00842E-R125-EUR_71~87 6/23/05 11:42 AM Page 85 …† DVD-RW Disc √ Manager DVD-RAM(VR) Disc Manager Disc Name Disc Navigation √ √ DVD-RW(VR) Disc Manager Disc Protection : Not Protected √ √ Playlist Disc Name Disc Format Disc Navigation √ √ √ √ Disc manager Delete All Title Lists Disc Protection...

  • Page 86: Finalising A Disc

    00842E-R125-EUR_71~87 6/23/05 11:42 AM Page 86 Finalising a disc DVD-RW(VR) Disc Manager Disc Navigation Disc Name √ √ Disc Protection : Not Protected √ √ Playlist Disc Format : DVD-VR √ √ Do you want to finalise disc? Disc manager Disc Finalise √...
  • Page 87 00842E-R125-EUR_71~87 6/23/05 11:43 AM Page 87 Unfinalising a disc (V/VR mode) œ √ MENU NOTE DVD-RW(VR:F) Disc Navigation Disc Navigation Title List √ √ DivX √ √ Playlist Photo √ √ Disc manager Music √ √ Programme Setup MOVE RETURN EXIT …†...

  • Page 88: Additional Information

    00842E-R125-EUR_88~93 6/23/05 11:44 AM Page 88 Troubleshooting Additional Information Power Checkpoint 1 Recording Checkpoint 1 Checkpoint 2 Checkpoint 3 Checkpoint 1...
  • Page 89 00842E-R125-EUR_88~93 6/23/05 11:44 AM Page 89 Playback Checkpoint 1 Checkpoint 1 Checkpoint 2 Checkpoint 3 Checkpoint 1 Checkpoint 1 Video Checkpoint 1 Checkpoint 2 Checkpoint 3 Checkpoint 1 Checkpoint 4 Checkpoint 1...

  • Page 90: Timer Recording

    00842E-R125-EUR_88~93 6/23/05 11:44 AM Page 90 Sound Checkpoint 1 Checkpoint 2 Checkpoint 1 HDMI Checkpoint 2 Checkpoint 3 Checkpoint 4 Checkpoint 1 Checkpoint 2 Checkpoint 3 Checkpoint 1 Timer Recording Checkpoint 1 Checkpoint 1 Checkpoint 2...

  • Page 91: Remote Control Unit

    00842E-R125-EUR_88~93 6/23/05 11:44 AM Page 91 Other Checkpoint 1 Checkpoint 2 Checkpoint 1 Checkpoint 3 Remote Control Unit Checkpoint 1 Checkpoint 1 Checkpoint 2 TV/DVD Checkpoint 3 Checkpoint 1 Checkpoint 2 Checkpoint 3...

  • Page 92: Specifications

    00842E-R125-EUR_88~93 2005.6.28 2:52 AM Page 92 Specifications Power requirements AC 220-240V, 50Hz Power consumption 35 Watts Weight 2,9Kg General Dimensions 430mm(W) x 245mm(D) x 59mm(H) Operating temp. +5°C to +35°C Other conditions Keep level when operating. Less than 75% operating humidity Composite Video : 1,0 V p-p at 75Ω...
  • Page 93 00842E-R125-EUR_88~93 6/23/05 11:44 AM Page 93 (GREECE) FOURLIS TRADE A.E.B.E.
  • Page 94 00842E-R125-EUR_Cover 6/23/05 11:37 AM Page 2 Correct Disposal of This Product (Waste Electrical & Electronic Equipment) (Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life.
