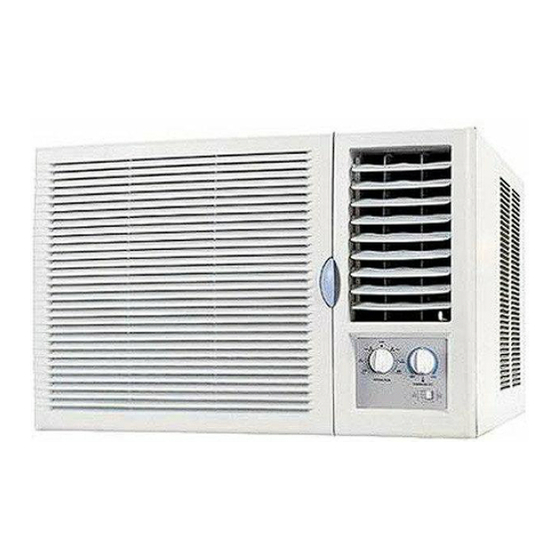

- Page 1 OWNER’S INSTRUCTIONS MANUAL DE INSTRUCCIONES MANUEL D’UTILISATIO MANUAL DE INSTRUÇÕES ISTRUZIONI PER L’USO AZ09F1SEA AZ09A1SEA AZ09F1JEA AZ09A1JEA AZ12F1JEA AZ12A1JEA AZ18F1MEA AZ18A1MEA AZ18F1MEB AZ18A1MEB AZ22F1MEA AZ22A1MEA AZ22F1MEB AZ22A1MEB AZ24F1MEA AZ24A1MEA AZ24F1MEB AZ24A1MEB AZT18F1MEA AZT18A1MEA AZT24F1MEA AZT24A1MEA Window-type Room Air Conditioner ( Cool and Heat ) Acondicionador de aire doméstico sistema de tipo ventana ( Refrigeración y Calefacción ) Climatiseur de type Fenêtre...
-
Page 2: Safety Precautions
Safety Precautions The following safety precautions must be taken when installing and using your air conditioner. The air conditioner must be plugged into its own specific power source, which must be installed in compliance with national wiring, earthing and safety regulations. Depending on national regulations and your specific installation, you may need to install: A circuit breaker For further information on electrical requirements, contact a professional electrician. -
Page 3: Table Of Contents
Contents REPARING ONDITIONER Safety Precautions ..................Air Conditioning Unit - Main Parts and Control Panel ........PERATING ONDITIONER Cooling Your Room ..................Heating Your Room ..................Airing Your Room ................... Switching the Air Conditioner Off ..............Adjusting the Air Flow Direction Horizontally ..........Adjusting the Air Flow Direction Vertically ............ -
Page 4: Air Conditioning Unit - Main Parts And Control Panel
Air Conditioning Unit - Main Parts and Control Panel The design and shape are subject to change according to the model. Inner air flow blades (right/left orientation) Air outlet Outer air flow blades (up/down orientation) Air inlet (Inside) Air inlet (Outside) Air filter (The air filter is located Ventilation lever... -
Page 5: Cooling Your Room
Cooling Your Room You must select the Cool mode if you wish to lower the temperature in your room. You can also set the fan speed. Select the operating mode and fan speed. To cool your room with a... Set the operating mode selection dial to... -
Page 6: Airing Your Room
Airing Your Room If the atmosphere in your room is stale, you can air it using the Fan feature and if necessary, evacuate the stale air outside. If you wish to evacuate stale air outside, push the ventilation lever on the front of the unit to the right and the open position ( Result: The air inside the room circulates and stale air is evacuated outside. -
Page 7: Adjusting The Air Flow Direction Horizontally
Adjusting the Air Flow Direction Horizontally Depending on the position of the unit in your room, you can adjust the orientation of the inner air flow blades on the right-hand side of the unit, thus increasing the efficiency of the air conditioner. Set the air flow blade swing switch to the position. -
Page 8: Operating Recommendation
Operating Recommendation Here are a few recommendations that you should follow when using your air conditioner. Topic Recommendation Heating performances The heat pump inside the air conditioner absorbs heat from outside air and brings it indoors. If the temperature of the outside air drops, the air conditioner will heat less. -
Page 9: Cleaning Your Air Conditioner
Cleaning Your Air Conditioner models) To get the best possible use out of your air conditioner, you must clean it regularly by two weeks to remove the dust on the air filter. Before cleaning your air conditioner, ensure that it is switched off and unplugged from the wall socket. - Page 10 Cleaning Your Air Conditioner models) To get the best possible use out of your air conditioner, you must clean it regularly by two weeks to remove the dust on the air filter. Before cleaning your air conditioner, ensure that it is switched off and unplugged from the wall socket.
-
Page 11: Solving Common Problems
Solving Common Problems Before contacting the after-sales service, perform the following simple checks. They may save you the time and expense of an unnecessary call. Problem Explanation / Solution Check that the circuit breaker used for the air conditioner The air conditioner does has not been triggered. -
Page 12: Installation
Installation Before installation, be sure to check the installation area for the air conditioner, and drain hose. Checkpoints prior to installation Check the cabinet and front grille of the unit for any harmful defects such as scratches. Be sure to check the power supply. - Refer to the specifications on the label attached to the unit. - Page 13 Installation of the Drain Tube Fix the drain tube as shown in the figure. Rear Rubber cap Gasket Drain Tube Screws(2EA) Installation of the Drain Pan The procedure for installing the drain pan should be determined by the condition of the installing area. In the case of an area where the drain pan can not be directly installed on the rear side of the unit after installing the air conditioner.
