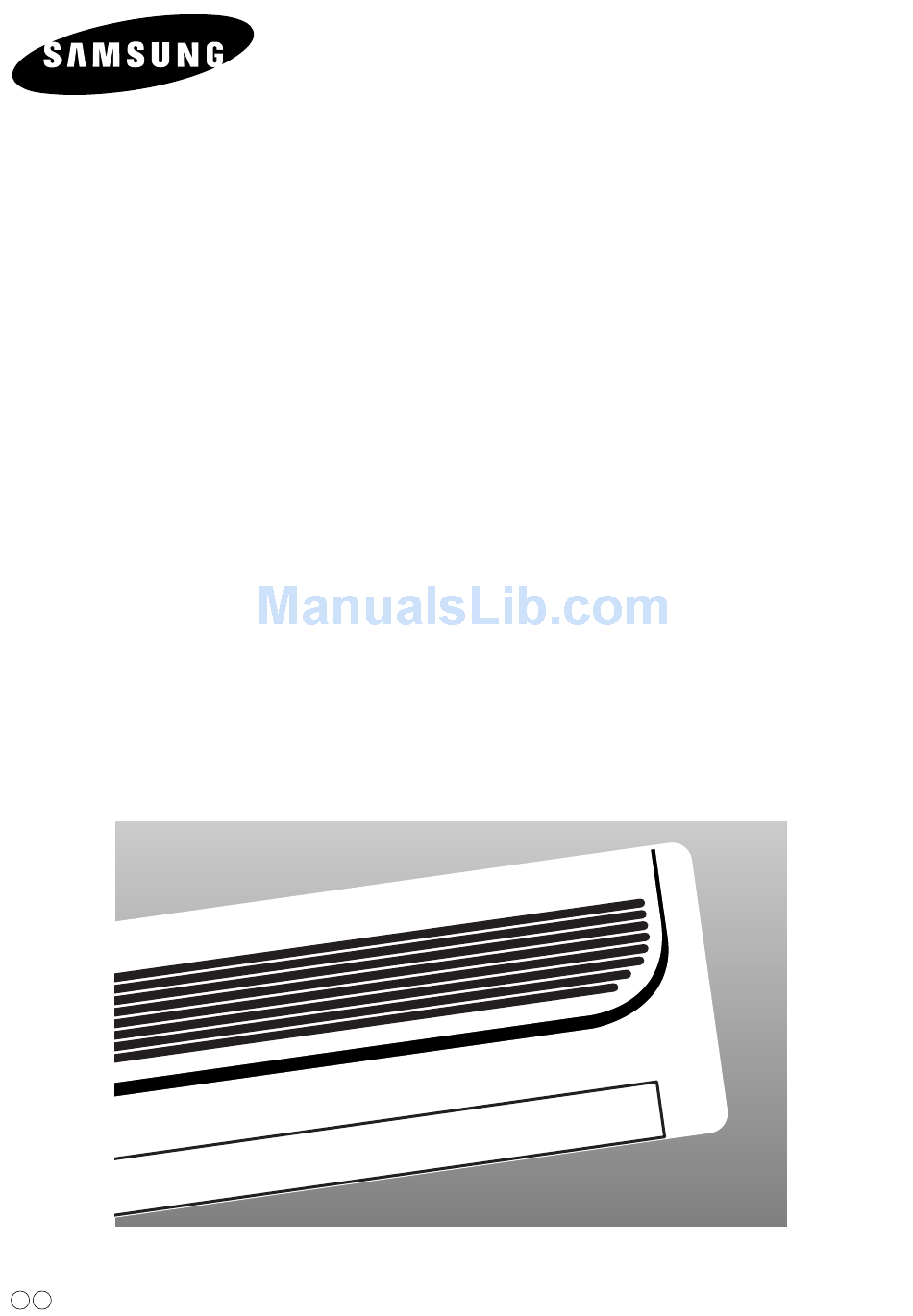

- Page 1 OWNER’S INSTRUCTIONS Indoor unit Outdoor unit SH05ZZ8 SH05ZZ8X SH07ZZ8 SH07ZZ8X SPLIT TYPE ROOM AIR CONDITIONER ( Cool and Heat ) E R DB98-15865A(1)
-
Page 2: Safety Precautions
Safety Precautions The following safety precautions must be taken when using your air conditioner. • Can cause injury or death. • Disconnect all Risk of electric shock. WARNING remote electric power supplies before servicing, installing or cleaning. • This must be done by the manufacturer or its service agent or a similar qualified person in order to avoid a hazard. -
Page 3: Table Of Contents
Contents ◆ REPARING YOUR AIR CONDITIONER Safety Precautions ........■... -
Page 4: View Of The Unit
View of the Unit The design and shape are subject to change according to the model. Indoor Unit Air filter Air Inlet (under the grille) Air flow blades (outlet) Operation indicator Remote Control Sensor On/Off button (Green) Turbo indicator (Green) Timer indicator (Orange) -
Page 5: Outdoor Unit
Outdoor Unit SH30ZC1(C2)X Air Inlet(Rear) Air Outlet Connection Valve (inside) -
Page 6: Remote Control-Buttons And Display
Remote Control - Buttons and Display Remote control transmission indicator Mode selection button Operating mode (AUTO, COOL, DRY, FAN, HEAT) AUTO, COOL, DRY, FAN, HEAT) Temperature adjustment Temperature setting buttons Turbo mode Turbo/Sleep mode Sleep mode selection button Energy saving Fan speed adjustment button Fan speed Swing button... -
Page 7: Getting Started
etting Started You have just purchased a split type air conditioner and it has been installed by your installation specialist. Your Owner’s Instructions contains valuable information on using your air conditioner. Please take the time to read it as it will help you take full advantage of the unit’s features. -
Page 8: Inserting The Remote Control Batteries
Inserting the Remote Control Batteries You must insert or replace the remote control batteries when : ◆ You purchase the air conditioner ◆ The remote control does not work correctly ◆ Use two AAA, LR03 1.5V batteries. ◆ Do not use old batteries or different kinds of batteries together. ◆... -
Page 9: Selecting The Automatic Operating Mode
Selecting the Automatic Operating Mode You can start the air conditioner in Automatic mode from your remote control. In the Automatic mode, the standard temperature and the optimum fan speed is selected automatically. You can adjust the standard temperature but not the fan speed. If necessary, press the (On/Off) button. -
Page 10: Cooling Your Room
Cooling Your Room You must select the Cool mode if you wish to adjust the: ◆ Cooling temperature ◆ Fan speed when cooling If necessary, press the (On/Off) button. ◆ The operation indicator on the indoor unit lights up. Result: ◆... -
Page 11: Heating Your Room
Heating Your Room You must select the Heat mode if you wish to adjust the: ◆ Heating temperature ◆ Fan speed when heating If necessary, press the (On/Off) button. ◆ The operation indicator on the indoor unit lights up. Result: ◆... -
Page 12: Changing The Room Temperature Quickly
Changing the Room Temperature Quickly The Turbo cooling/heating function is used to cool or heat your room as quickly as possible. You have just come home and find that the room is very hot. You wish to cool it down as quickly as possible. The Turbo function operates for 30 minutes with the maximum settings before returning automatically to the mode and temperature previously selected. -
Page 13: Removing Excess Humidity
Removing Excess Humidity If the atmosphere in your room is very humid or damp, you can remove excess humidity without lowering the room temperature too much. If necessary, press the (On/Off) button. ◆ The operation indicator on the indoor unit lights up. Result: ◆... -
Page 14: Airing Your Room
Airing Your Room If the atmosphere in your room is stale, you can air the room using the Fan feature. If necessary, press the (On/Off) button. ◆ The operation indicator on the indoor unit lights up. Result: ◆ The air conditioner starts up in the mode selected when the unit was last used. -
Page 15: Selecting Energy Saving Mode
Selecting Energy Saving Mode If you wish to save energy when using your air conditioner, select the Energy saving mode with the Energy saving button. If necessary, press the (On/Off) button. ◆ The operation indicator on the indoor unit lights up. Result: ◆... -
Page 16: Adjusting The Air Flow Direction Vertically
Adjusting the Air Flow Direction Vertically Depending on the position of the indoor unit on the wall of your room, you can adjust the position of the outer air flow blade on the bottom of the unit, thus increasing the efficiency of the air conditioner. Press the button one or more times as required. -
Page 17: Adjusting The Air Flow Direction Horizontally
Adjusting the Air Flow Direction Horizontally There are two sets of inner air flow blades. Just as the outer air flow blade can be adjusted vertically, the inner blades can be adjusted horizontally. Adjust each set of inner blades to the required position, by pushing or pulling them sideways. -
Page 18: Setting The On Timer
Setting the On Timer The On Timer enables you to switch on the air conditioner automatically after a given period of time. You can set the period of time from 30 minutes to 24 hours. To set the operating time, press the button one or more times until the required time is displayed. -
Page 19: Setting The Off Timer
Setting the Off Timer The Off Timer enables you to switch off the air conditioner automatically after a given period of time. You can set the period of time from 30 minutes to 24 hours. To set the operating time, press the button one or more times until the required time is displayed. -
Page 20: Setting The Sleep Timer
Setting the Sleep Timer The Sleep Timer can be used when you are cooling or heating your room to switch the air conditioner off automatically after a period of 6 hours. If you wish to switch the unit off at a specific time, refer to page 19. -
Page 21: Operating Recommendations
Operating Recommendations Here are a few recommendations that you should follow when using your air conditioner. Topic Recommendation Heating performances The heat pump inside the air conditioner absorbs heat from outside air and brings it indoors. If the temperature of the outside air drops, the air conditioner will heat less. -
Page 22: Temperature And Humidity Ranges
Temperature and Humidity Ranges The following table indicates the temperature and humidity ranges within which the air conditioner can be used. If the air conditioner is used at... Then... High temperatures The automatic protection feature may be triggered and the air conditioner stopped. Low temperatures A water leak or some other malfunction may occur if the heat exchanger freezes. -
Page 23: Operating Your Air Conditioner Without The Remote Control
Operating Your Air Conditioner Without the Remote Control Your air conditioner can be operated directly from the indoor unit if the remote control is lost or broken. To turn the air conditioner on, press the On/Off button on the right side of the indoor unit. -
Page 24: Solving Common Problems
Solving Common Problems Before contacting the after-sales service, perform the following simple checks. They may save you the time and expense of an unnecessary call. Problem Explanation/Solution ◆ Check that the breaker used for the air conditioner is switched on. The air conditioner does not ◆... -
Page 25: Cleaning Your Air Conditioner
