Kenwood DDX8032BT Instruction Manual

Monitor with dvd receiver
Hide thumbs Also See for DDX8032BT:
Table of Contents

Advertisement

Quick Links

See also: Service Manual , Installation Manual

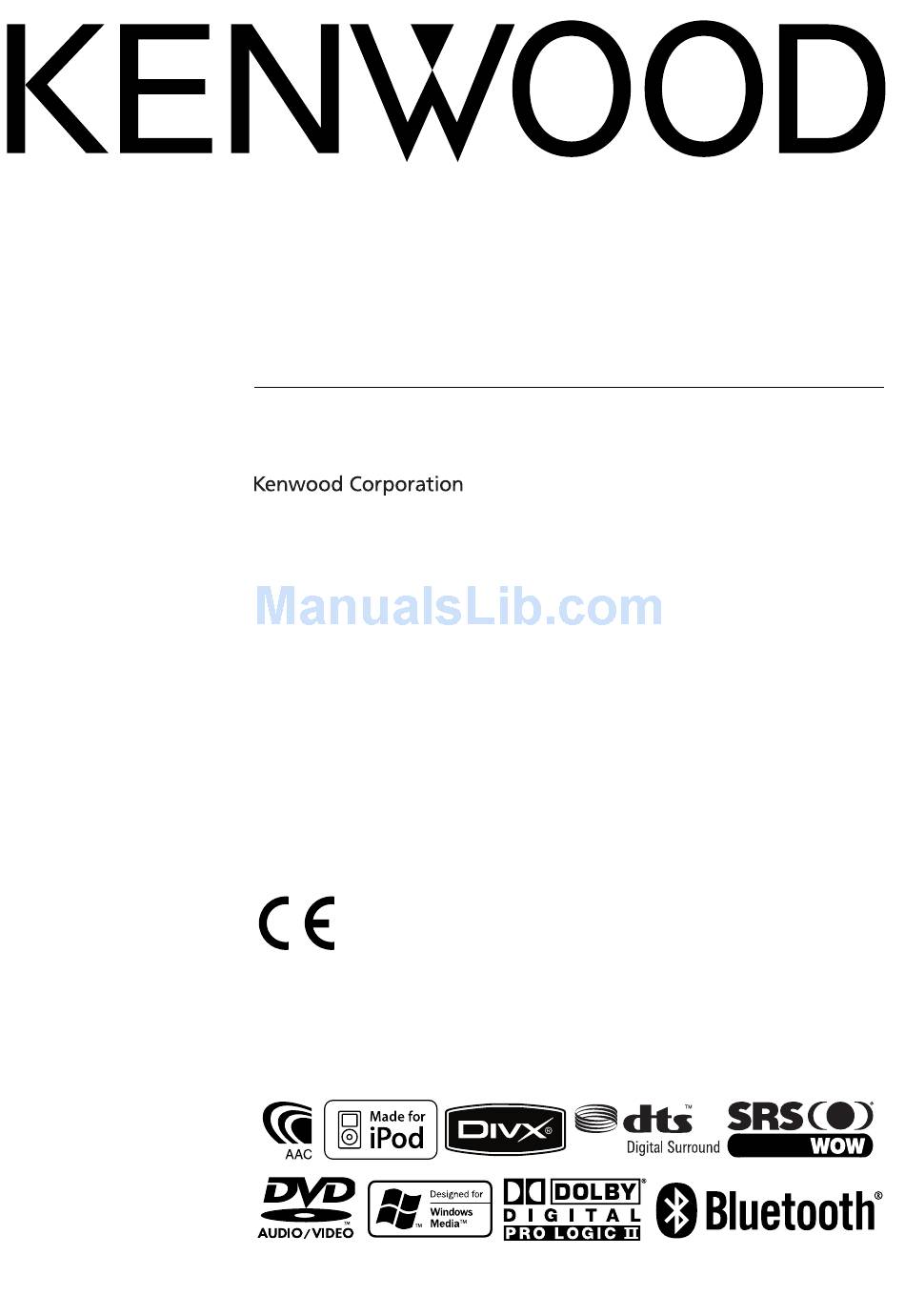

MONITOR WITH DVD RECEIVER
DDX8032BT
DDX8032BTM

INSTRUCTION MANUAL

This instruction manual is used to describe 3 models listed below.
Model availability and features (functions) may differ depending on the country and
sales area.
• Type X (Oceanian: DVD Region Code 4 area)
• Type M (Other country: DVD Region Code 3 area)
• Type M2 (DDX8032BTM: DVD Region Code 2 area)
DDX8032BTM :
Declaration of Conformity with regard to the R&TTE
Directive 1999/5/EC
Manufacturer:
Kenwood Corporation
2967-3 Ishikawa-machi, Hachioji-shi, Tokyo, 192-8525 Japan
EU Representative's:
Kenwood Electronics Europe BV
Amsterdamseweg 37, 1422 AC UITHOORN, The Netherlands
© B64-4100-00/00 (MW/M2W/XW)
