zūmo 665 Installation Instructions
WarnIng
Incorrectly wiring the power cable with bare wire leads can result in damage to the vehicle or
the battery and can cause bodily injury. Garmin strongly recommends having an experienced
installer with the proper knowledge of electrical systems install the unit.
See the Important Safety and Product Information guide in the product box for product
warnings and other important information.
Do not use the suction cup mount on a motorcycle.

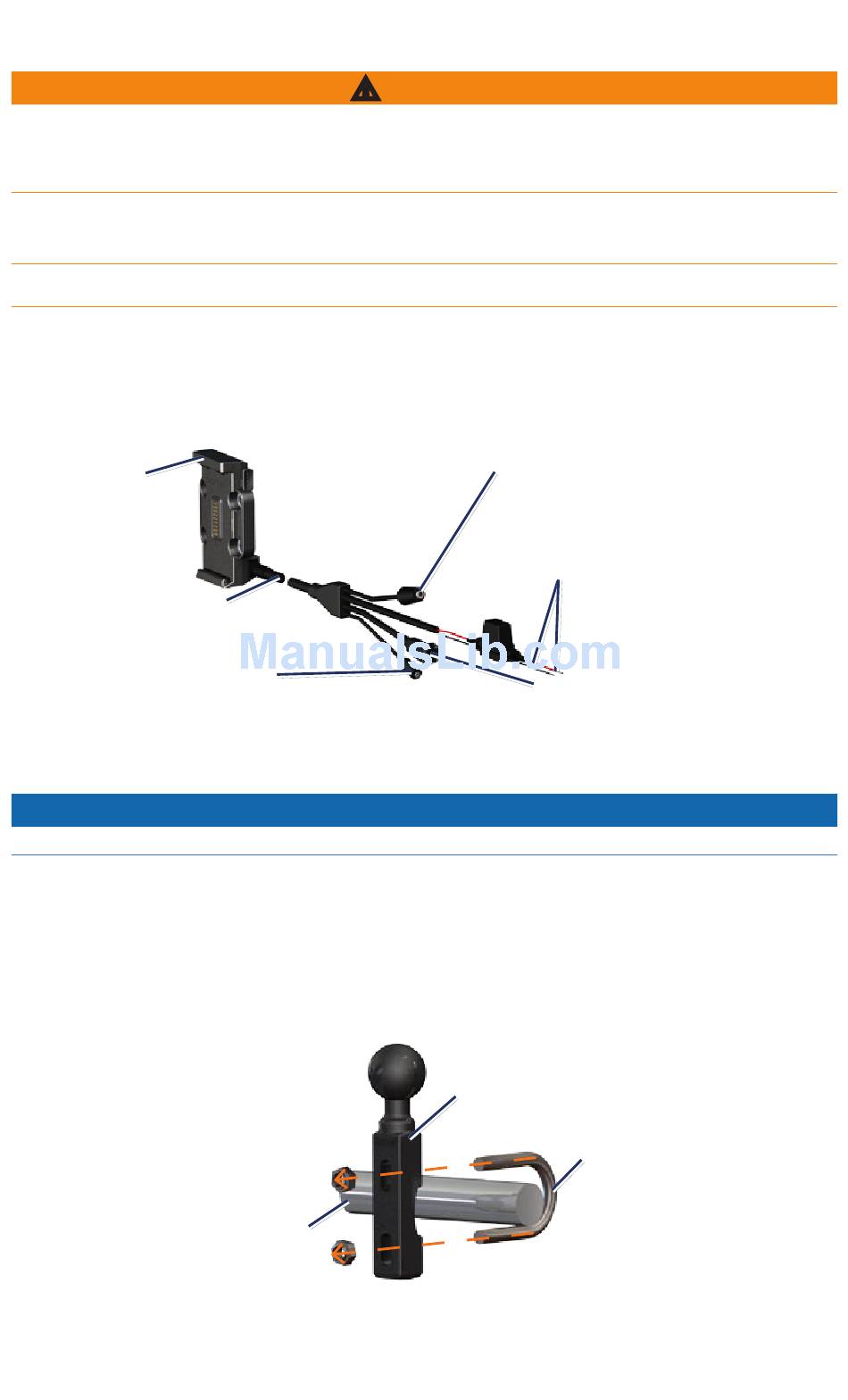

Step 1: Connecting Power to the Mount
Select a suitable and secure location to mount the zūmo on your motorcycle, based on
available power sources and safe cable routing.
Headphone/audio out jack (3.5 mm)
Cradle
Bare wires with
inline fuse for
power connection
Power cable
Microphone jack (2.5 mm)
Mini-USB connector
(for GXM 40 Antenna)
Step 2: Installing the Handlebar Base
notice
The recommended torque is 50 lbf-in. Do not exceed torque of 80 lbf-in.
The zūmo includes parts for two handlebar installation solutions. Custom mounts can require
additional hardware (www.ram-mount.com).
Option a: Installing the U-bolt and Handlebar Base:
1. Place the U-bolt around the handlebar, and thread the ends through the handlebar base.
2. Tighten the nuts to secure the base. Do not overtighten.
Handlebar
base
U-bolt
Handlebar
