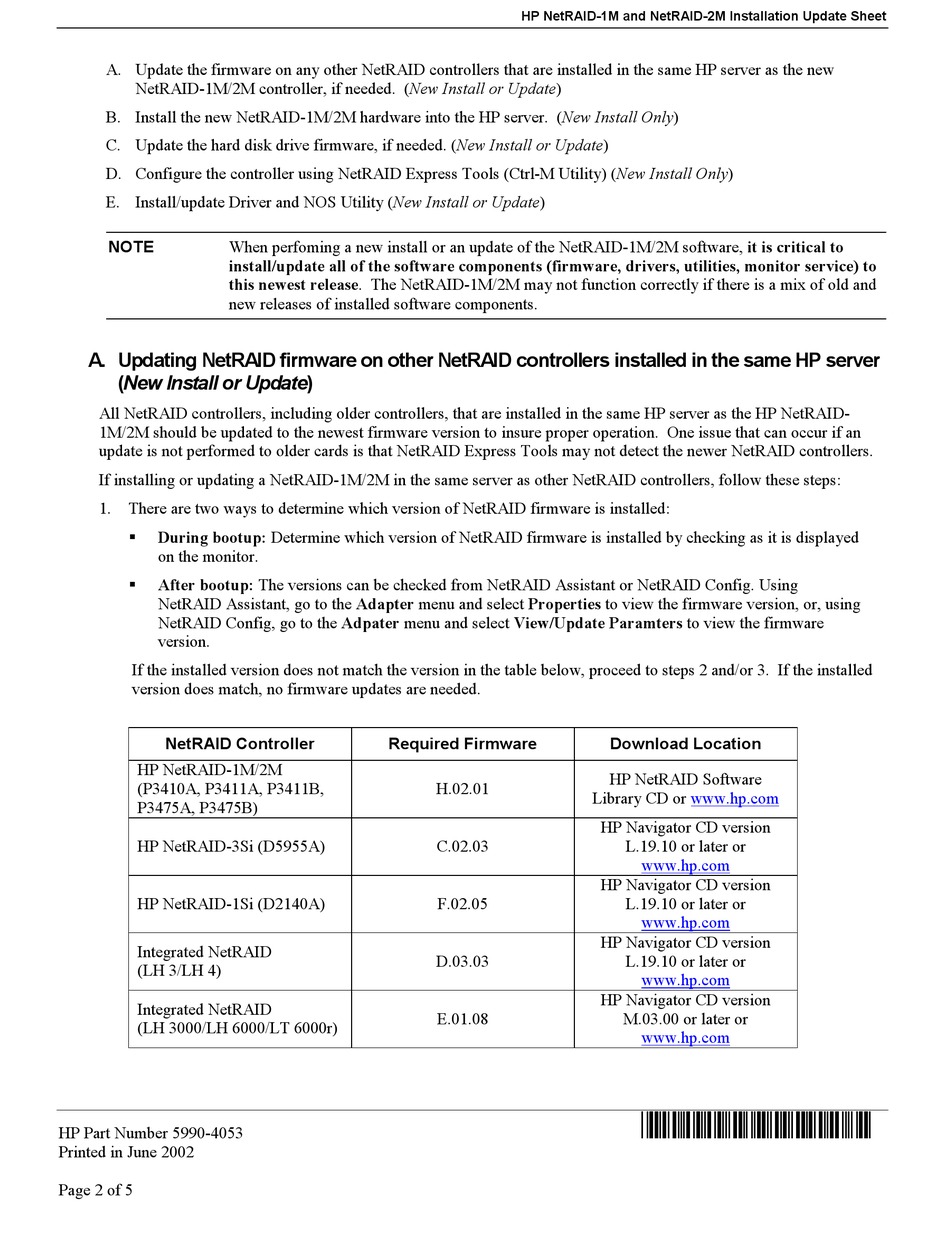

HP P3410A - NetRAID 1M RAID Controller Read This First page 2

A. Update the firmware on any other NetRAID controllers that are installed in the same HP server as the new
NetRAID-1M/2M controller, if needed. (New Install or Update)
B. Install the new NetRAID-1M/2M hardware into the HP server. (New Install Only)
C. Update the hard disk drive firmware, if needed. (New Install or Update)
D. Configure the controller using NetRAID Express Tools (Ctrl-M Utility) (New Install Only)
E. Install/update Driver and NOS Utility (New Install or Update)
NOTE When perfoming a new install or an update of the NetRAID-1M/2M software, it is critical to
install/update all of the software components (firmware, drivers, utilities, monitor service) to
this newest release. The NetRAID-1M/2M may not function correctly if there is a mix of old and
new releases of installed software components.
A. Updating NetRAID firmware on other NetRAID controllers installed in the same HP server
(New Install or Update)
All NetRAID controllers, including older controllers, that are installed in the same HP server as the HP NetRAID-
1M/2M should be updated to the newest firmware version to insure proper operation. One issue that can occur if an
update is not performed to older cards is that NetRAID Express Tools may not detect the newer NetRAID controllers.
If installing or updating a NetRAID-1M/2M in the same server as other NetRAID controllers, follow these steps:
1. There are two ways to determine which version of NetRAID firmware is installed:
During bootup: Determine which version of NetRAID firmware is installed by checking as it is displayed
on the monitor.
After bootup: The versions can be checked from NetRAID Assistant or NetRAID Config. Using
NetRAID Assistant, go to the Adapter menu and select Properties to view the firmware version, or, using
NetRAID Config, go to the Adpater menu and select View/Update Paramters to view the firmware
version.
If the installed version does not match the version in the table below, proceed to steps 2 and/or 3. If the installed
version does match, no firmware updates are needed.
NetRAID Controller
HP NetRAID-1M/2M
(P3410A, P3411A, P3411B,
P3475A, P3475B)
HP NetRAID-3Si (D5955A)
HP NetRAID-1Si (D2140A)
Integrated NetRAID
(LH 3/LH 4)
Integrated NetRAID
(LH 3000/LH 6000/LT 6000r)
HP Part Number 5990-4053
Printed in June 2002
Page 2 of 5
HP NetRAID-1M and NetRAID-2M Installation Update Sheet
Required Firmware
H.02.01
C.02.03
F.02.05
D.03.03
E.01.08
Download Location
HP NetRAID Software
Library CD or www.hp.com
HP Navigator CD version
L.19.10 or later or
www.hp.com
HP Navigator CD version
L.19.10 or later or
www.hp.com
HP Navigator CD version
L.19.10 or later or
www.hp.com
HP Navigator CD version
M.03.00 or later or
www.hp.com
