Summary of Contents for Echo SHR-210
- Page 1 OPERATOR’S MANUAL POWER SPRAYER SHR-210 WARNING DANGER READ INSTRUCTIONS CAREFULLY AND FOLLOW RULES FOR SAFE OPERATION. FAILURE TO DO SO COULD RESULT IN SERIOUS INJURY. X750-004 14 4 X750604-530 4 -1564 Printed in Japan 1002Ash 1135 ES 847-540-8400...
- Page 2 WARNING The engine exhaust from this product contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. Copyright © 2002 All Rights Reserved.

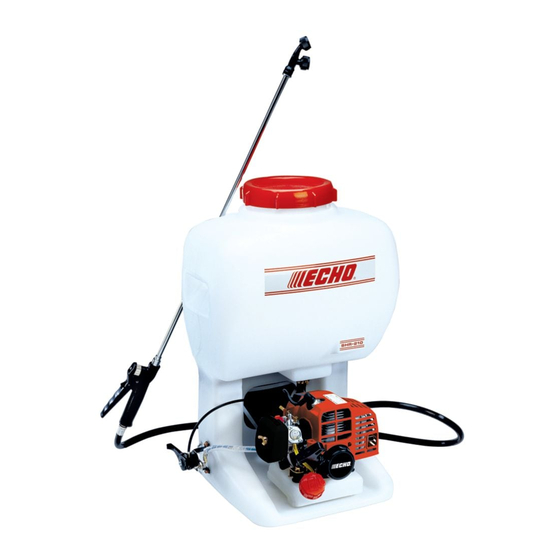

- Page 3 VARIETY OF NOZZLE FOR ECHO POWER SPRAYER SHR-210 Convenient to use and reliable, the go anywhere SHR- 210 power sprayer is highly versatile with a large vari- ety of optional nozzles which adapts it to a wide range of applications. The use of this power sprayer at home, on the farm or in a commercial environment are limit- less.
-
Page 4: Table Of Contents
RULES FOR SAFE OPERATION 1.Handle gasoline with care. It is highly inflammable. - Refuel before starting work. - Do not smoke while handling fuel. - Do not refuel a hot engine. - Avoid spilling fuel or oil. Always wipe unit dry before using. -
Page 5: Nomenclature
Locate this safety decal on your unit. The complete unit illustration found in the “NOMENCLATURE” sec- tion, will help you locate them. Make sure the decal is legible and that you understand and follow the instructions on them. If a decal cannot be read, a new one can be ordered from your ECHO dealer. NOMENCLATURE... -
Page 6: Assembling
• ECHO premium Power Blend X Stroke Oil may be mixed at 50 : 1 ratio for application in all ECHO engines sold in the past regardless of ratio specified in those manuals. • Use of unmixed, improperly mixed, or fuel older... - Page 7 DANGER Fuel is VERY flammable. Use extreme care when mixing, storing or handling or serious personal injury may result. • • • • • Use an approved fuel container. • • • • • DO NOT smoke near fuel. • • • • • DO NOT allow flames or sparks near fuel. •...
-
Page 8: Starting Engine
Shoulder level Choke lever START (Close) RUN (Open) Fuel return line Purge bulb High speed START Idling HOLD THE MACHINE FIRMLY Starter handle STARTING ENGINE Never start and operate engine before filling chemical tank to avoid damage to pump. Fuel tank •... - Page 9 SPRAYING • Ensure that chemical liquid valve is closed before starting engine. • After engine is warmed up, turn throttle lever to the high speed position (Upper position) and open liquid valve. (NOTE) Since this unit is equipped with a centrifugal clutch, sprinkling is not possible when the engine is running at low speeds (idling).
-
Page 10: Maintenance And Care
MAINTENANCE AND CARE - ALWAYS KEEP THE MACHINE CLEAN - Carburetor Case Filter Air cleaner cover 0.6 - 0.7 mm (0.024 - 0.028 in.) AIR FILTER • Check before every use. • Remove filter cover. - Remove wing nut. • Brush off dust lightly or wash in a non- inflammable solvent if necessary. - Page 11 Breather valve Breather hole Chemical strainer Return pipe Bypass nozzle plate Nipple Drain plug Remove the drain plug CHEMICAL TANK BREATHER • Clean breather valve and breather hole periodically. • Bad sealing of the breather valve may cause a leakage of the chemical. Clogging of the breather hole may cause a “dent”...
-
Page 12: Emisson Data
(96.0 kPa). To maintain proper engine operation and emission compliance above 1100 feet ASL the carburetor may need to be adjusted by an authorized ECHO service dealer. IMPORTANT If the engine is adjusted for operation above 1100 feet ASL, the carburetor must be readjusted when operating the engine below 1100 feet ASL, otherwise severe engine damage may result. -
Page 13: Trouble Shooting
Poor performance of the engine and/or spraying mechanism can normally be prevented by carefully following the above instructions. Poor performances can easily be corrected even by a beginner. When the engine does not function properly check the following three (3) points first. •... - Page 14 Table 2 Engine overheated Firing function defective Carburetor defective Other troubles Spray is not a fine mist No spray FUEL VAPORS ARE EXTREMELY FLAMMABLE AND MAY CAUSE FIRE AND/OR EXPLOSION. NEVER TEST FOR IGNITION SPARK BY GROUNDING SPARK PLUG NEAR CYLINDER PLUG HOLE, OTHERWISE SERIOUS PERSONAL INJURY MAY RESULT.
-
Page 15: Storage After Use
ZAMA diaphragm type Flywheel magneto : CDI (Capacitor discharge ignition) system NGK BPM8Y Recoil starter Mixture of gasoline (unleaded, 89 octane minimum) and specially blended 50 : 1 ECHO two cycle engine oil. L (fl.oz.US) 0.5 (16.9) Regenerative pump L/min 0.8 - 7.0 (27 - 236.7) -
Page 16: Warranty Statements
ECHO servicing dealer for warranty repairs (within the applicable warranty period), and arrange for pick- up or return of your unit after the repairs have been made. For your nearest authorized ECHO servicing dealer, call ECHO’s Dealer Referral Center, at 1-800-432-ECHO or you can locate an ECHO servicing dealer at WWW.ECHO-USA.COM. - Page 17 • Additional damage to parts or components due to continued use after operational problem or failure occurs. Should operational problem or failure occur, the product should not be used, but delivered as is to an authorized ECHO servicing dealer.
- Page 18 HOW WILL A COVERED PART BE CORRECTED? If there is a defect in a part covered by this warranty, any ECHO Inc. Authorized Service Dealer will correct the defect. You will not have to pay anything to have the part adjusted, repaired or replaced. This includes any labor and diagnosis for warranted repairs performed by the dealer.
