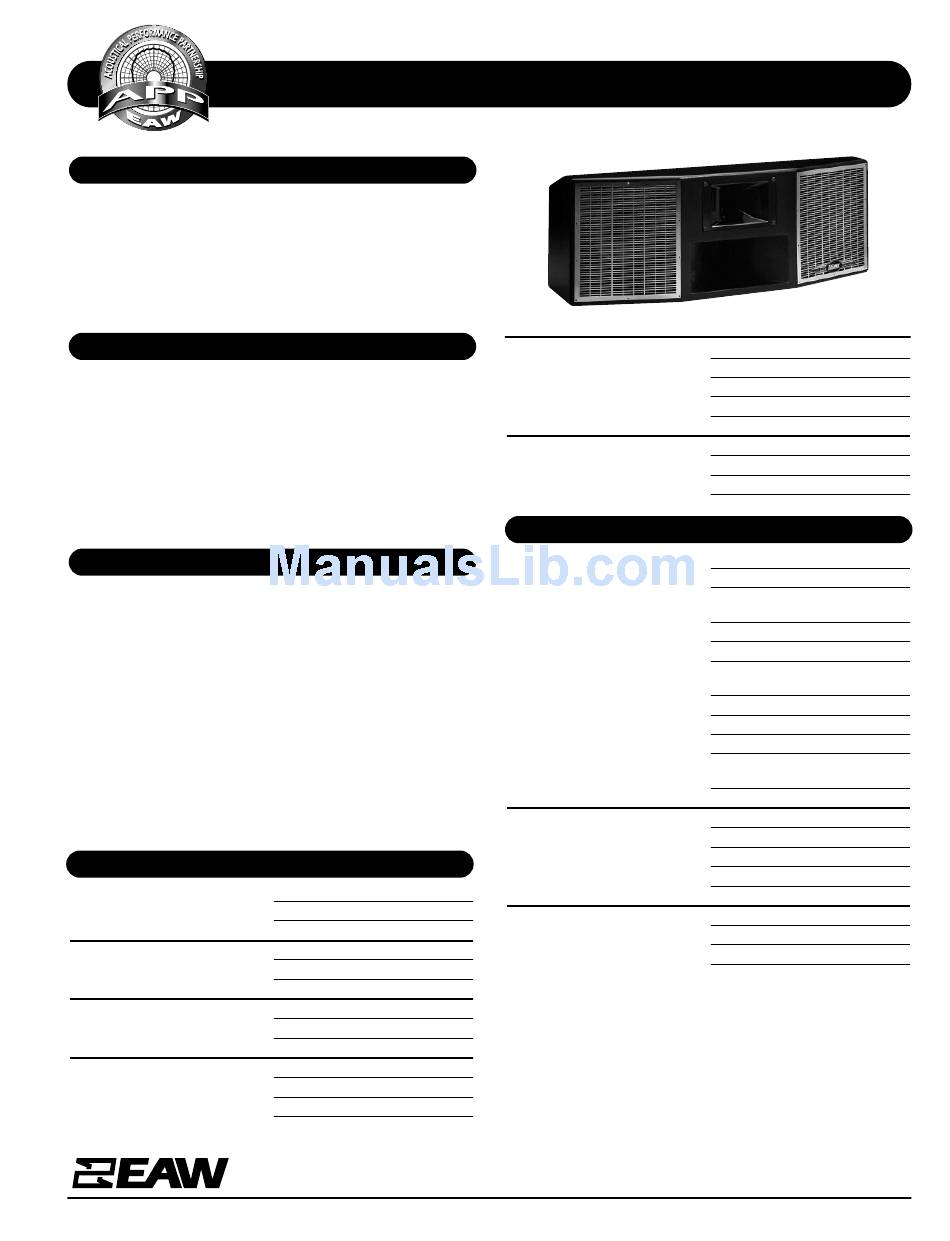

EAW Subwoofer DC3 Specifications

FEATURES
• Dual 12-in woofers maximize LF output
• Horn-loaded 8-in cone mid frequency section
• Horn-loaded 1-in exit/1.75-in voice coil HF compression
driver
• Cutaway rear corner directs coverage down from a position
close to the ceiling
• High-output system designed to deliver the extreme level
requirements of high energy dance clubs
DESCRIPTION
The DC3 is engineered for use in permanent installations. The
system includes two 12-in woofers in an optimally vented
enclosure, a horn-loaded 8-in cone, and a 1-in exit/1.75-in
voice coil compression driver on a 90° (h) x 40° (v) disper-
sion constant directivity horn.
A complex asymmetrical internal passive crossover/filter net-
work provides MF/HF subsystem integration. An MX Series
Close Coupled Processor™ should integrate the LF and MF/HF
subsystems.
APPLICATION
The DC3 bi-amplified three-way dance club system provides
high output, high definition reinforcement for medium sized
clubs. Overall design is robust to ensure reliability in the face
of continuous peak output operation.
The DC3 is designed for overhead mounting in a horizontal
configuration to cover medium-sized dance floors or other
spaces within clubs. Its cutaway upper-rear corner allows it
to tuck up next to the ceiling while angling its coverage down
20°. The enclosure includes balance-optimized threaded
mounting points.
Like all EAW products, it can be special ordered in virtually
any color to match a specific décor. Six year warranty.
PERFORMANCE
Frequency Response
±3 dB 63 Hz to 18 kHz
-10 dB 50 Hz
Axial Sensitivity (dB SPL, 1 watt @ 1 m)
Passive MF/HF 104
LF 99
Impedance (ohms)
Passive MF/HF 8
LF 4
Power Handling (watts, continuous)
Passive MF/HF 250
LF 800
One Main Street, Whitinsville, MA 01588
EAW products are continually improved. All specifications are therefore subject to change without notice.
Calculated Output Limit (dB SPL @ 1 m)
Nominal Beamwidth (degrees @ -6 dB SPL)
Dimensions
Weights
508 234 6158 Toll Free 800 992 5013
SPECIFICATIONS DC3
Passive MF/HF Peak 134.0
LF Peak 134.0
Passive MF/HF Long term 128.0
LF Long Term 128.0
Horizontal 90
Vertical 40
PHYSICAL
Product Group Avalon
Configuration 3-way full-range
Powering Bi-amplified (passive MF/HF
LF Subsystem 2x 12-in woofers, vented
MF Subsystem 1x 8-in cone, horn-loaded
HF Subsystem 1-in exit/1.75-in voice coil
Enclosure Material Exterior-grade Baltic birch plywood
Finish Wear-resistant textured black paint
Connectors 2x Neutrik NL4 Speakon
Suspension Hardware 8x 3/8"-16 threaded mounting
Grille Zinc coated perforated steel
Height (front) 18.8
Height (rear) 16.0
Width 52.0
Depth 16.0
Net Weight 120
Shipping Weight 135
FAX 508 234 8251
DC3/2 pp
crossover)
compression driver on CD horn
points (4 top, 2 per side)
inches millimeters
476
407
1321
406
pounds kilograms
54.5
61.4
info@eaw.com www.eaw.com
October 2001 Printed in USA
