Summary of Contents for Asus ET1612I Series
-
Page 1: User Manual
User Manual ET1612I Series... - Page 2 ASUSTeK COMPUTER, INC. (“ASUS”). Products and corporate names mentioned in this manual may or may not be registered trademarks or copyrights of their respective companies, and are used for identification purposes only.
-
Page 3: Table Of Contents
Notices ..............................5 Notes for this manual ........................11 Safety information ..........................12 Welcome ....................14 Package contents ..........................14 Getting to know your ASUS All-in-one PC ..........15 Front view .............................15 Rear view ..............................17 Side view ...............................19 Using the touch screen ........................20 Showing the touch pointer ....................20... - Page 4 Using the recovery partition ......................34 Recovering the OS to the Factory Default Partition (F9 Recovery) ......34 Backing up the Factory Default Environment Data to a USB Drive (F9 Backup) 34 Using the USB storage device (USB Restore) ................35...
-
Page 5: Notices
20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users and installers must be provide with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. ASUS All-in-one PC ET1612I Series... -
Page 6: Canadian Department Of Communications Statement
• Protection requirements for electromagnetic compatibility in [Article 3.1b] • Testing for electromagnetic compatibility in [EN 301 489-1] & [EN 301 489-17] • Effective use of the radio spectrum as in [Article 3.2] • Radio test suites according to [EN 300 328-2] ASUS All-in-one PC ET1612I Series... -
Page 7: Wireless Operation Channel For Different Domains
Parliament and Commission from 9 March, 1999 governing Radio and Telecommunications Equipment and mutual recognition of conformity. Wireless Operation Channel for Different Domains N. America 2.412-2.462 GHz Ch01 through CH11 Japan 2.412-2.484 GHz Ch01 through Ch14 Europe ETSI 2.412-2.472 GHz Ch01 through Ch13 ASUS All-in-one PC ET1612I Series... -
Page 8: France Restricted Wireless Frequency Bands
This requirement is likely to change over time, allowing you to use your wireless LAN card in more areas within France. Please check with ART for the latest information (www.arcep.fr) Your WLAN Card transmits less than 100mW, but more than 10mW. ASUS All-in-one PC ET1612I Series... - Page 9 REACH Complying with the REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) regulatory framework, we publish the chemical substances in our products at ASUS REACH website at http://csr.asus.com/english/REACH.htm. ASUS All-in-one PC ET1612I Series...
-
Page 10: Global Environmental Regulation Compliance And Declaration
ASUS follows the green design concept to design and manufacture our products, and makes sure that each stage of the product life cycle of ASUS product is in line with global environmental regulations. In addition, ASUS disclose the relevant information based on regulation requirements. -
Page 11: Notes For This Manual
U.S. Department of Energy helping us all save money and protect the environment through energy efficient products and practices. All ASUS products with the ENERGY STAR logo comply with the ENERGY STAR standard, and the power management feature is enabled by default. The monitor and computer are automatically set to sleep after 15 and 30 minutes of user inactivity. -
Page 12: Safety Information
Safety information Your ASUS All-in-one PC ET1612I Series is designed and tested to meet the latest standards of safety for information technology equipment. However, to ensure your safety, it is important that you read the following safety instructions. Setting up your system •... -
Page 13: Sound Pressure Warning
Coating Notice IMPORTANT! To provide electrical insulation and maintain electrical safety, a coating is applied to insulate the device except on the areas where the I/O ports are located. ASUS All-in-one PC ET1612I Series... -
Page 14: Welcome
Welcome Congratulations on your purchase of ASUS All-in-one PC ET1612I Series. The following illustration displays the package contents of your new product. If any of the following items is damaged or missing, contact your retailer. Package contents ASUS All-in-one PC ET1612I Series... -
Page 15: Getting To Know Your Asus All-In-One Pc

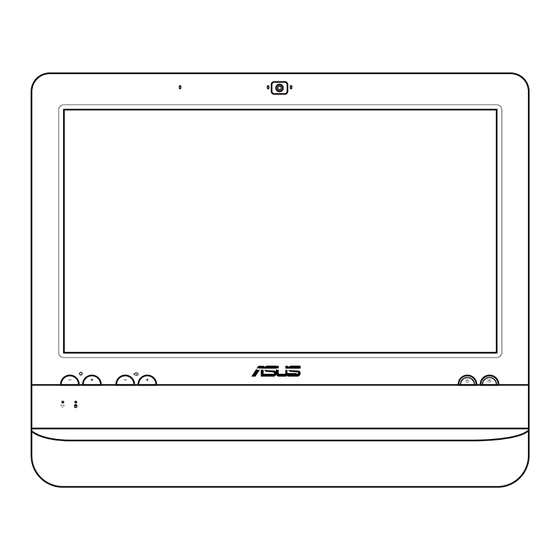

Getting to know your ASUS All-in-one PC Front view Refer to the following diagram to identify the components on this side of the system. Webcam The built-in webcam with the microphone allows you to start video chats online. Webcam LED Indicates that the built-in webcam is enabled. - Page 16 LAN.) Brightness controls The brightness controls adjust the screen brightness level. Volume controls The volume controls adjust the sound level. Microphone The built-in microphone with the webcam allows you to start video chats online. ASUS All-in-one PC ET1612I Series...
-
Page 17: Rear View
Headphone/Audio Out jack The stereo headphone jack (3.5mm) is used to connect the system’s audio out signal to amplified speakers or headphones. Using this jack automatically disables the built- in speakers. ASUS All-in-one PC ET1612I Series... - Page 18 The power adapter may become warm or hot when in use. Do not cover the adapter and keep it away from your body. HDMI out port The HDMI (High Definition Multimedia Interface) port supports a Full-HD device such as an LCD TV or monitor to allow viewing on a larger external display. ASUS All-in-one PC ET1612I Series...
-
Page 19: Side View
These Universal Serial Bus 3.0 (USB 3.0) ports connect to USB 3.0 devices such as a mouse, printer, scanner, camera, and others. Memory card reader The built-in memory card reader reads MMC/SD cards used in devices like digital cameras, MP3 players, mobile phones, and PDAs. ASUS All-in-one PC ET1612I Series... -
Page 20: Using The Touch Screen
Using the touch screen ASUS All-in-one PC brings digital life to your fingertips. With a few touches, you can make ASUS All-in-one PC work at your command. Your touch functions like a mouse device: • Touch = left-click on the mouse •... -
Page 21: Cleaning The Touch Screen
• Spray a small amount of a household glass cleaner onto the supplied cleaning cloth and gently wipe the screen surface and the screen frame. • Do not spray the cleaner directly on the screen. • Do not use an abrasive cleaner or a coarse cloth when cleaning the screen. ASUS All-in-one PC ET1612I Series... -
Page 22: Positioning Your Asus All-In-One Pc
Positioning your ASUS All-in-one PC Placing on the desktop Place your ASUS All-in-one PC on a flat surface such as a table or desk, and pull the stand open pull the stand open until it snaps in place. Then, tilt the display panel to an angle of between 10 and 35 degrees from an upright position. - Page 23 The wall mount kit should comply with VESA 75 standards, which can be purchased separately. • To ensure safety, please read the wall mount kit installation manual carefully before mounting your All-in-one PC to the wall. ASUS All-in-one PC ET1612I Series...
-
Page 24: Setting Up Your Asus All-In-One Pc
Setting up your ASUS All-in-one PC Connecting the wired keyboard and mouse Connect the keyboard to the USB port on the rear panel ( ). Then, connect the mouse to Then, connect the mouse to hen, connect the mouse to... -
Page 25: Powering On The System
OS, press the Power switch again, click the mouse, touch the display, or press any key on the keyboard. • To shut down the system completely, follow the normal Windows shutdown process. ASUS All-in-one PC ET1612I Series... -
Page 26: Calibrating The Screen
Right-click anywhere on the screen to return to the last calibration point. Press the Esc key on the keyboard to close the tool. Do not change your screen orientation until you have completed the calibration process. ASUS All-in-one PC ET1612I Series... -
Page 27: Configuring A Wireless Connection
Enter the network security key when connecting to a security-enabled network. After a connection has been established, the connection is shown on the list. You can see the wireless network icon in the Notification area. ASUS All-in-one PC ET1612I Series... -
Page 28: Configuring A Wired Connection
Windows® Notification area and select Open Network and Sharing Center. Ensure that you have connected the LAN cable to the All-in-one PC. Click Change adapter settings in the left pane. Right-click Local Area Connection and select Properties. ASUS All-in-one PC ET1612I Series... - Page 29 Select Use the following IP address. Enter your IP address, Subnet mask, and Default gateway. If needed, enter the Preferred DNS server address. After entering all the related values, click OK to finish the configuration. ASUS All-in-one PC ET1612I Series...
-
Page 30: Using A Dynamic Ip (Pppoe)
OK. (Continue the following steps if using PPPoE) Return to the Network and Sharing Center and then click Set up a new connection or network. Select Connect to the Internet and click Next. ASUS All-in-one PC ET1612I Series... - Page 31 Select Broadband (PPPoE) and click Next. Enter your User name and, Password, and Connection name. Click Connect. Click Close to finish the configuration. ASUS All-in-one PC ET1612I Series...
- Page 32 Click the network icon in the notification area and click the connection you just created. Enter your user name and password. Click Connect to connect to the Internet. ASUS All-in-one PC ET1612I Series...
-
Page 33: Configuring The Audio Output
(surround) channel. Connecting to speakers Refer to the table below for the audio jacks on the left panel and their functions. For stereo speakers or headphones Audio jack Description Connects to stereo speakers or headphones. ASUS All-in-one PC ET1612I Series... -
Page 34: Recovering Your System
If there is already a partition with proper size in the selected USB storage device (for example, a partition that has been used as the backup partition), the system will show this partition automatically and reuse it for backup. ASUS All-in-one PC ET1612I Series... -
Page 35: Using The Usb Storage Device (Usb Restore)
Data on the factory default partition or on the whole hard disk will be cleared depending on the option you selected in the previous step. Click Restore to start the task. When the restore is completed successfully, click Reboot to restart the system. ASUS All-in-one PC ET1612I Series... - Page 36 Manufacturer ASUSTek COMPUTER INC. Address, City No. 150, LI-TE RD., PEITOU, TAIPEI 112, TAIWAN R.O.C Country TAIWAN Authorized Representative in Europe ASUS COMPUTER GmbH Address, City HARKORT STR. 21-23, 40880 RATINGEN Country GERMANY ASUS All-in-one PC ET1612I Series...
