Dynex DX-26LD150A11 Quick Setup Manual

26"/32" LCD TV / DVD combo

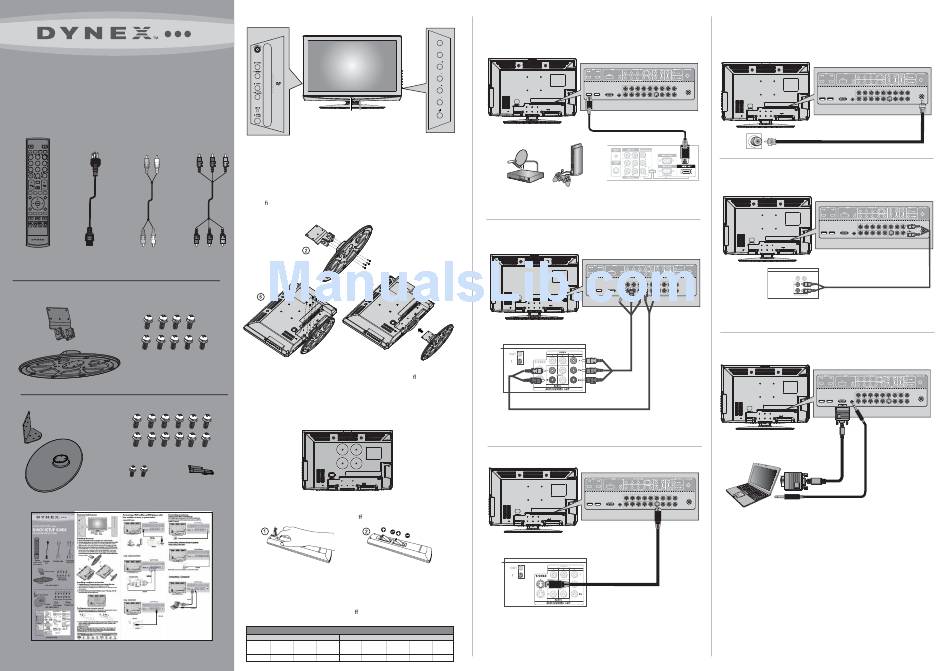

QUICK SETUP GUIDE
DX-26LD150A11/DX-32LD150A11
TV DVD INPUT GUIDE
1 2 3
4 5 6
7 8 9
0
RECALL
MTS/SAP
CCD PICTURE AUDIO ZOOM
TV MENU FAVORITE
OK
ENTER
EXIT INFO
TITLE MENU SETUP A-B
REPEAT AUDIO SUBTITLE RETURN
Remote
Component
AC power L/R Audio cable
control and 2
video cable
cord
AAA batteries
DX-26LD150A11
TV stand column
9 M4 screws
with washers
TV stand
DX-32LD150A11
TV stand column
12 M4 screws with washers
TV stand
TV stand cover
2 M3 screws
Quick Setup Guide
Front and side features
Remote control Power
sensor indicator
Installing the stand
1 Remove the stand from the box and place it on a table or bench.
2 Secure the stand column to the stand with the four screws with washers provided.
3 Lay your TV/DVD combo face down on a soft, dry, and lint free surface.
Align the bottom side of the TV/DVD combo with one edge of the table.
4 Slide the stand column into the slot in the bottom of the TV/DVD combo.
5 For DX-26LD150A11, secure the stand column to the TV/DVD combo with
the ve screws and washers provided. For DX-32LD150A11, secure the
stand column to the TV/DVD combo with the eight screws and washers
provided, then secure the stand cover to the TV/DVD combo with the two
screws provided.
Installing a wall-mount bracket
1 Carefully place your TV screen face-down on a cushioned at, clean
surface to protect the screen from damages and scratches.
2 Remove the screws holding the TV to its stand column, then remove the
stand column.
3 Secure the wall-mount bracket to the back of your TV by using the screws
provided with the wall mount.
Setting up your remote control
1 While pressing the release button on the battery compartment cover on
the back of the remote, lift the cover o the remote.
2 Insert two AAA batteries into the battery compartment. Make sure that the
+ and – symbols on the batteries align with the + and – symbols in the
battery compartment.
3 Replace the cover.
To program your existing universal remote control to work with your new
Dynex TV, see the table below for common codes. If you have problems
programming your remote or need a di erent remote control code, visit
www.dynexproducts.com for the latest remote .
Universal remote control TV codes
(for all Dynex TVs manufactured after Jan. 1, 2007)
Universal remote control makers and models Set-top box makers and models
Philips
RCA One for All Sony Comcast Dish Network Motorola TIVO
PHDVD5, PH5DSS,
RCU807 URC-6690 RM-VL600 M1057 VIP508, VIP622 DRC800 Series 3, HD
PMDVR8, PDVR8
115 135 0464 8043 0463 720 0463 0091
Connecting a DVD or Blu-ray DVD player, cable
box, satellite receiver, or game station
MENU
Using HDMI (best)
INPUT
VOL
VOL
CH
CH
Using component (better)
Component
video cable
Component video device
Audio Cable
Using S-video (fair)
Video device
DirectTV
RC23
10463
Connecting an antenna
Connect a 75 ohm cable (not included) to the
ANT/CABLE IN jack on the back of the TV/DVD combo, then
connect the other end of the cable to the antenna, cable TV or
satellite TV box jack.
Back of TV / DVD combo
HDMI cable
(not included)
Connecting a home theater system
Using analog audio cable:
HDMI device
Back of TV / DVD combo
AUDIO IN
Note: Cable connectors and jacks are often color-coded.
Connecting a Computer
Back of TV / DVD combo
S-video cable
Back of TV / DVD combo
Back of TV / DVD combo
Audio Cable
Back of TV / DVD combo
VGA Cable
Audio Cable
