Projection Distance per Screen Size

1
Place the projector on a sturdy, level surface, together with the PC or audio/video
source.
2
Place the projector at an appropriate distance from the screen. The distance be-
tween the projector and the screen determines the actual size of the image.
3
Position the projector so that the lens is set at a right angle to the screen. If the
projector is not set at a right angle, the image on the screen will be tilted and the
image quality will be poor. If the screen image is crooked, use the Keystone function.
(see page21)
4
Connect the power cords of the projector and the connected devices to the wall
outlet.

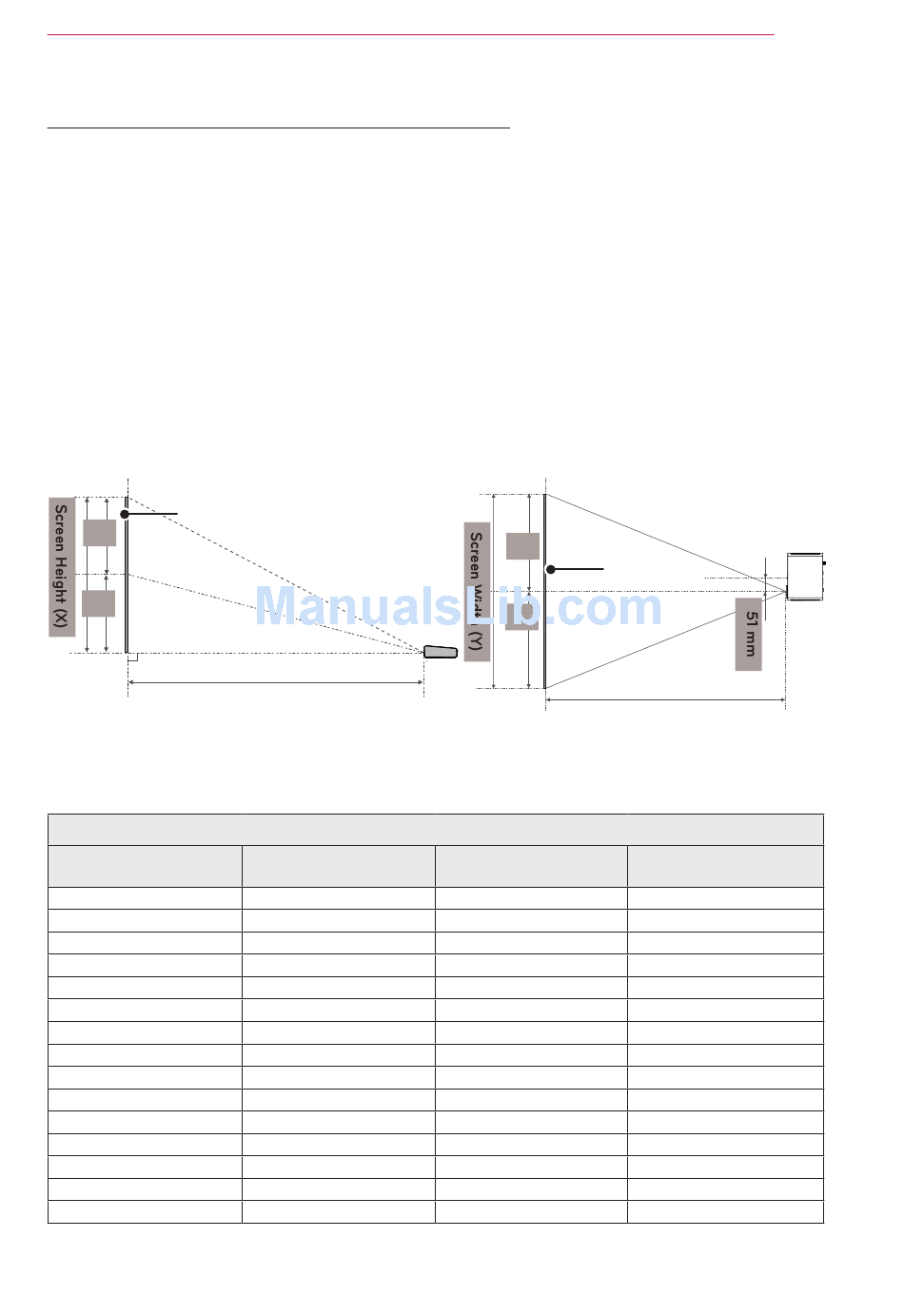

Ratio of upward projection: 100%
DISPLAY
X/2
X/2
Projection distance (D)
Screen Size (mm)
762
889
1016
1143
1270
1397
1524
1651
1778
1905
2032
2159
2286
2413
2540
16:10 Screen
Screen Width (Y) (mm)
646
754
861
969
1077
1185
1292
1400
1508
1615
1723
1831
1938
2046
2154
Y/2
DISPLAY
Y/2
Projection distance (D)
Screen Height (X) (mm)
404
471
539
606
673
741
808
875
943
1010
1077
1145
1212
1279
1347
15
PREPARATION
Projection Distance (D)
(mm)
902
1056
1210
1365
1520
1674
1828
1983
2137
2291
2445
2600
2755
2909
3063
