GE GFDS150EDWW Installation Instructions Manual
Ge 7.5 cu. ft. capacity frontload dryer with steam and stainless steel drum
Hide thumbs
Also See for GFDS150EDWW:
- Owner's manual (60 pages) ,
- Installation instructions manual (17 pages)
Table of Contents
Advertisement
Available languages
Available languages
Quick Links
Download this manual
See also:
Owner's Manual
Installation
Instructions

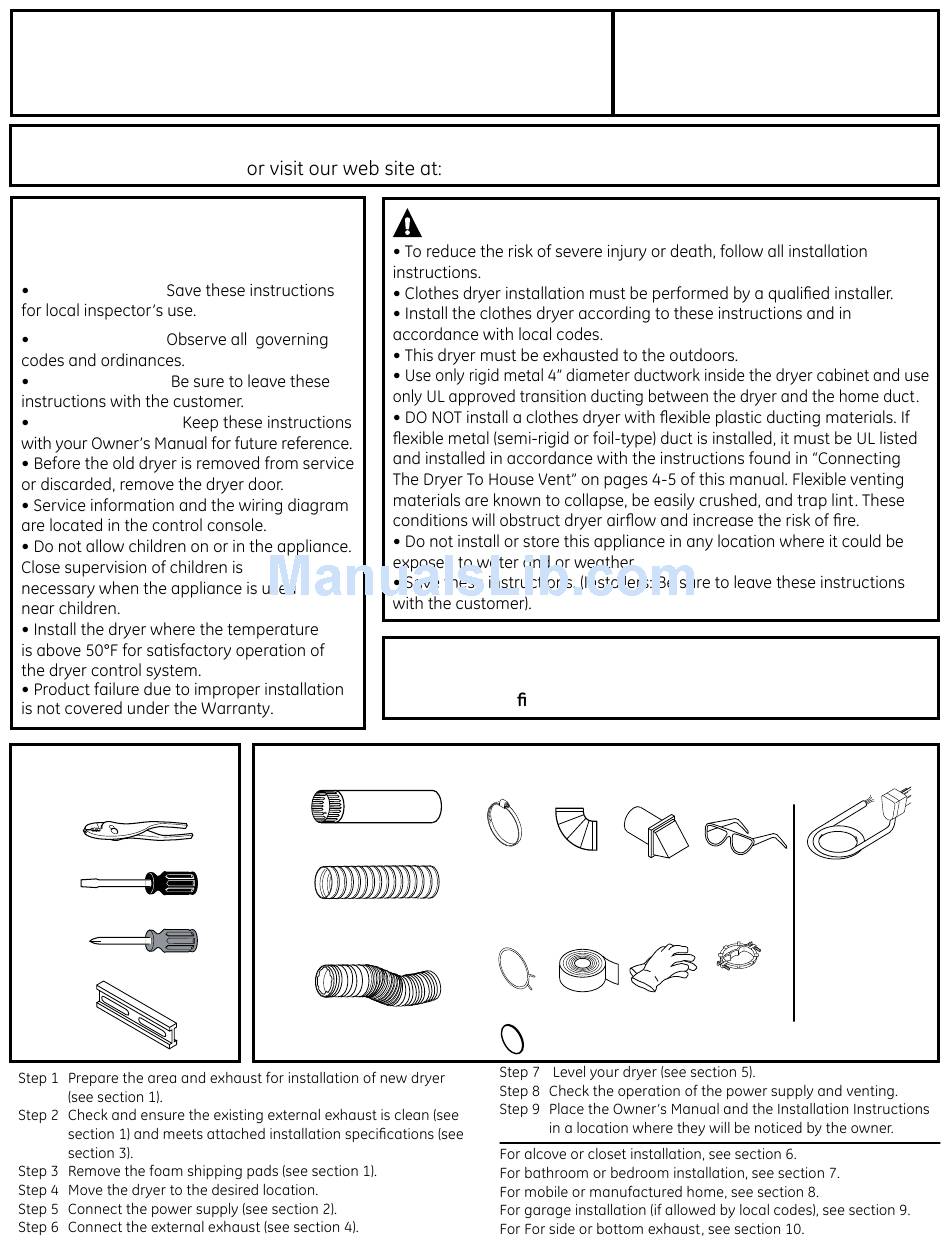

BEFORE YOU BEGIN
