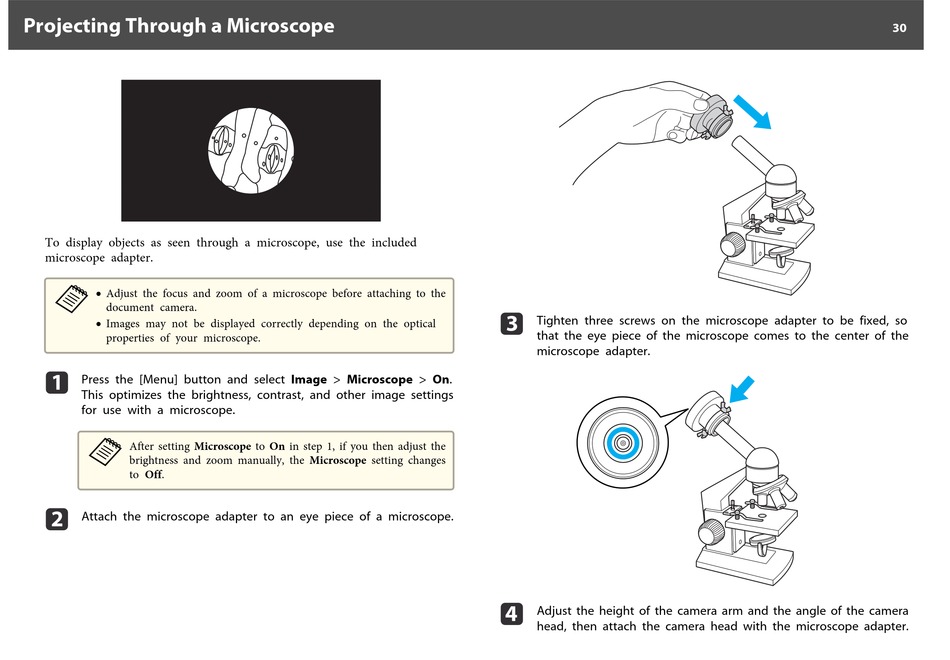

Projecting Through a Microscope

To display objects as seen through a microscope, use the included
microscope adapter.
a
• Adjust the focus and zoom of a microscope before attaching to the
document camera.
• Images may not be displayed correctly depending on the optical
properties of your microscope.
a
Press the [Menu] button and select Image > Microscope > On.
This optimizes the brightness, contrast, and other image settings
for use with a microscope.
a
After setting Microscope to On in step 1, if you then adjust the
brightness and zoom manually, the Microscope setting changes
to Off.
b
Attach the microscope adapter to an eye piece of a microscope.
c
Tighten three screws on the microscope adapter to be fixed, so
that the eye piece of the microscope comes to the center of the
microscope adapter.
d
Adjust the height of the camera arm and the angle of the camera
head, then attach the camera head with the microscope adapter.
30
