Dynasty Spas SSPA-1 Quick Reference Card

To start the pump:
Press the Pump key to turn the pump on at low speed.
A second press will turn the pump to high speed. A third
press will turn the pump off. A built-in timer will shut the
pump off after 20 minutes unless it has been manually
deactivated.
The "Pump" indicator light will be on when the
Pump is running.
To turn the light on:
Press the Light key to turn the light on. A second press
will turn the light off. A built-in timer will shut the light off
after 2 hours unless it has been manually deactivated.
The "Light" indicator will be on when the light
is on.
To change the water temperature:
Press the Up or Down arrow key to increase or decrease
the desired water temperature. The selected temperature
setting will be displayed for 5 seconds as a confirmation.
The "Set Point" indicator light indicates that the
temperature shown is the desired, and not the
current, temperature of the water!
The temperature can be adjusted in 1-degree increments
from 59 to 104˚F (15 to 40˚C).
Water heater automatic start:
When the water temperature is 1˚F (0.5˚C) lower
than the set point, the heater will be turned on automati-
cally until the water temperature reaches the set point
plus 1˚F (0.5˚C).
The "Heater" indicator light will be on when the
heater is on.
Note: If your system is configured in Low Current Mode,
the heater will not start if the pump is running at high speed.

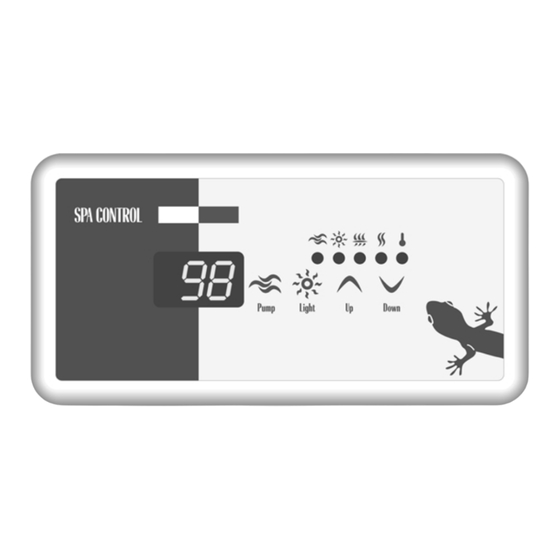

SSPA-1 SPA PACK
Single-Pump System
•
This Quick Reference Card is a summary of your spa's main functions and
provides a quick overview of operations accessible from your spa side keypad.
Quick Reference Card
•
"Pump" indicator light
"Light" indicator
"Heater" & "Set Point" indicator lights
