Dynasty Spas MC-MP-CE Quick Reference Card

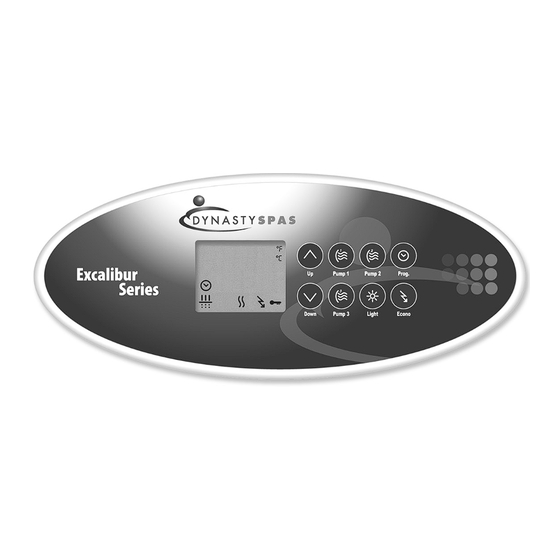

The Quick Reference Card provides a quick overview of your spa's main functions and the operations
accessible with your digital control pad. Note that some functions require the use of the K-4 keypad (10 keys). *
Starting Pump 1:
Press Pump 1 to turn Pump 1 on at low speed.
Press a second time to turn Pump 1 to high
speed. A third time turns Pump 1 off. A built-in
timer automatically turns pump off after 20 min-
utes, unless it has been manually deactivated.
The "Pump 1" indicator lights up when
Pump 1 is on at high speed. It flashes
when Pump 1 is on at low speed.
Starting Pump 2:
Dual-speed pump system:
Press Pump 2 to turn Pump 2 on at low speed.
Press a second time to turn pump to high speed.
A third time turns pump off.
Single-speed pump system:
Press Pump 2 to turn Pump 2 on.
Press a second time to turn Pump 2 off.
In both cases, a built-in timer turns Pump 2 off
after 20 minutes, unless it has been manually
deactivated.
The "Pump 2" indicator lights up when
Pump 2 is on. With a dual-speed pump,
it will flash when Pump 2 is on at low speed.
Starting the blower:
Press Blower to turn blower on at high speed.
Press a second time to turn blower to low
speed. A third time turns blower off. A built-in
timer automatically turns blower off after
20 minutes, unless manually deactivated first.
The "Blower" indicator lights up
when blower is on at high speed.
It flashes when blower is on at low
speed.
Automatic water heater start:
When water temperature is 0.5˚C (1˚F) lower
than the Set Point, the heater will automatically
turn on until water temperature reaches Set
Point plus 0.5˚C (1˚F).
The "Heater" indicator lights up when
the heater is on. It flashes when there
is a request for more heat but the heater
has not yet started.
Note: The heater will not start if two pumps or
more are running at high speed.

Setting water temperature:

Use Up or Down arrow key to regulate water
temperature. The temperature setting will be
displayed for 5 seconds to confirm your new
selection.
The "Set Point" symbol indicates the
desired temperature, NOT the current
water temperature!
Water temperature can be adjusted by 0.5˚C or
1˚F increments from 15 to 40˚C (59 to 104˚F).
MC-MP-CESpaPack
•
Turning the light on:
Two-intensity spa light:
Press Light key to turn light on at high intensity.
Press a second time to turn light to low inten-
sity. A third time turns light off.
One-intensity spa light:
Press Light key to turn light on.
Press a second time to turn light off.
In both cases, a built-in timer turns light off after
2 hours, unless manually deactivated first.
The "Light" indicator is displayed when
light is on at high intensity. It flashes
when light is on at low intensity.
Fiber Box Option: If your spa has an optional
fiber box, press Light key to turn fiber box
(motor & light) on. Press a second time to turn
fiber box motor off and leave light on. A third
time turns both motor and light off. A built-in
timer turns fiber box off after 2 hours, unless it
has been manually deactivated. The "Light"
indicator is displayed when fiber box light is on.
It flashes when fiber box motor and light are on
at the same time.
LED Light Option: If spa has an optional LED
light, Press Light key to turn LED lights on.
Starting Pump 3: *
Press Pump 3/Off to turn Pump 3 on. Press
a second time to turn Pump 3 off. A built-in
timer automatically turns pump off after
20 minutes, unless manually deactivated first.
Troubleshooting
Pumps have started up for
one minute on several
occasions and "Filter Cycle"
icon is flashing.
Not a bug but a feature!
Our Smart Winter Mode
protects your system from
the cold by automatically
turning pumps on for one
minute several times a day
to prevent water from
freezing in pipes.
The display is flashing.
A power failure has
occurred. Press any key
to reset the system.
Quick Reference Card
•
To advance to the next color/display setting, press
Light key twice. The LEDs will go off with the first
press, then back on in the next setting with the
second press. If the LEDs remain off for more
than 5 sec., the color/ display sequence will reset
and start back at the beginning the next time the
Light key is pressed. Color/ display sequences are:
1• LEDs light up and slowly cycle through all
six colors. The slow cycle restarts at the
beginning and repeats.
2• LEDs light up and remain on in Aqua.
3• LEDs light up and remain on in Purple.
4• LEDs light up and remain on in Blue.
5• LEDs light up and remain on in Gold.
6• LEDs light up and remain on in Green.
7• LEDs light up and remain on in Red.
8• LEDs light up for 2 sec., flash off, then
flash on in the next color until all six colors
have been displayed. The flashing cycle
then repeats itself.
9• LEDs flash on/off quickly for a strobe light
effect. A built-in timer turns lights off after
2 hours unless manually deactivated first.
The "Light" icon is displayed
when LED light is on.

Standby mode:

Press and hold Filter key for 5 seconds to turn
the system down (i.e. to set it to Standby
mode) for 60 minutes. The display toggles
between "SBY" message and the time re-
maining. All keys are then disabled, unless
you press Filter key to reactivate the system
before the expiration of the 60-minute delay.
Water temperature is
displayed.
Water temperature in
the spa has reached 44˚C
(112˚F).
Do not enter the water!
Allow water to cool down.
The system will reset au-
tomatically when water
reaches 43˚C (109˚F).
Call your dealer or service
supplier if problem persists.
3 flashing dots are
displayed.
A problem has been detected.
Do not enter the water!
Check and open water
valves. Clean filters if nec-
essary. Check water level.
Add water if needed.
Shut power off and power
your spa up again to reset
the system.
Call your dealer or service
supplier if problem persists.
