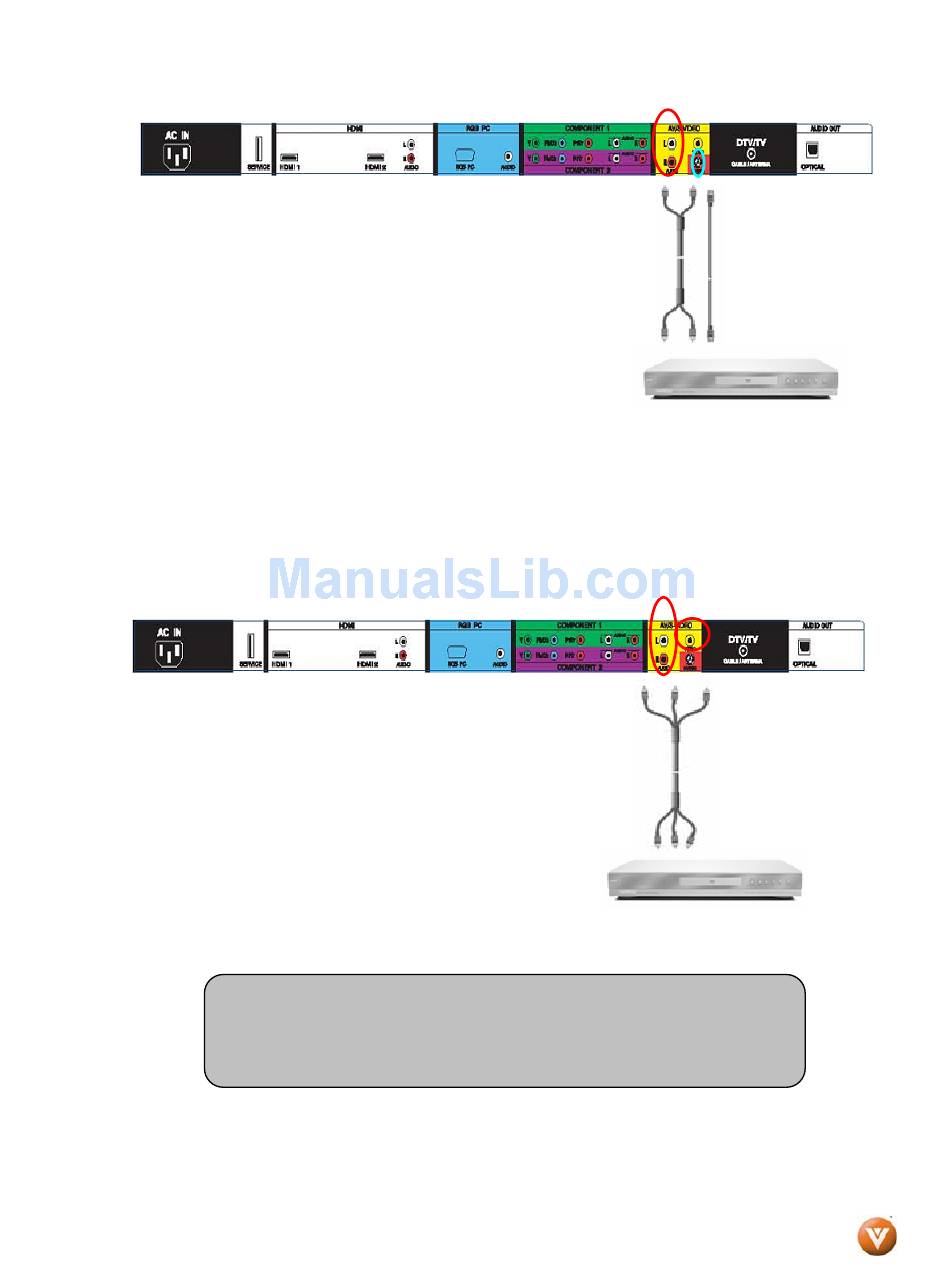

2.5.4 Using S-Video (AV)
Connecting your DVD Player (Good):
1.
Turn off the power to the HDTV and DVD player.
2.
Connect the S-Video jack on the rear of your DVD player
to the S-Video jack in the AV/S-VIDEO group (yellow/red
color area) on the back High Definition TV.
3.
Connect an audio (white and red connector cables) cable
to the audio output connectors associated with the S-Video
output on your DVD player and connect the other end to
the audio connectors associated with the AV/S-VIDEO
input on the back side High Definition TV.
4.
Turn on the power to the TV and DVD player.
5.
Select AV using the INPUT button on the remote or side High Definition TV, or directly by
pressing the AV button on the Remote Control.
2.5.5 Using Composite (AV) Video
Connecting your DVD Player (Good)
1.
Turn off the power to the HDTV and DVD player.
2.
Connect the Video (yellow color) connector on your
DVD player to the Video (yellow color) connector in the
AV group (yellow/red color area) at rear of the High
Definition TV.
3.
Connect the R (red color) and L (white color) audio
connectors on your DVD player to the corresponding R
(red color) and L (white color) audio input connectors
in the AV group (yellow/red color area).
4.
Turn on the power to the TV and DVD Player.
5.
Select AV using the INPUT button on the remote or side of the High Definition TV, or directly
by pressing the AV button on the Remote Control.
.
Note:
Version 10/17/2008
Refer to your DVD player user manual for more information about
the video output requirements of the product.
