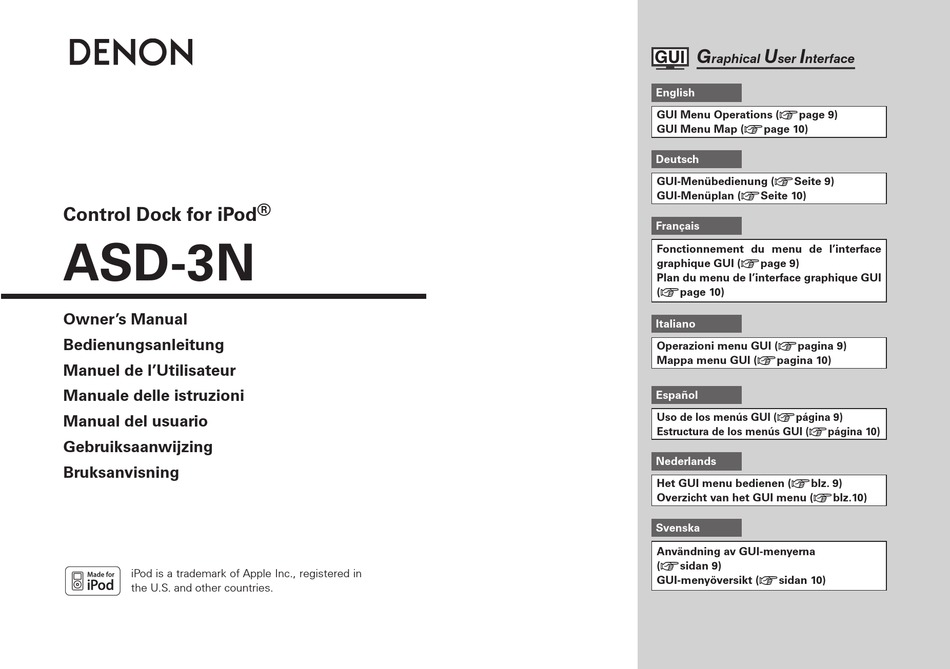

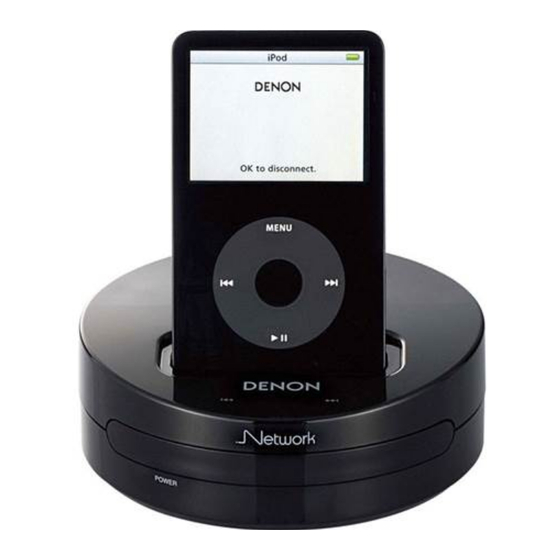

Control Dock for iPod
ASD-3N
Owner's Manual
Bedienungsanleitung
Manuel de l'Utilisateur
Manuale delle istruzioni
Manual del usuario
Gebruiksaanwijzing
Bruksanvisning
iPod is a trademark of Apple Inc., registered in
the U.S. and other countries.
®
G
U
I
raphical
ser
nterface
English
GUI Menu Operations (vpage 9)
GUI Menu Map (vpage 10)
Deutsch
GUI-Menübedienung (vSeite 9)
GUI-Menüplan (vSeite 10)
Français
Fonctionnement du menu de l'interface
graphique GUI (vpage 9)
Plan du menu de l'interface graphique GUI
(vpage 10)
Italiano
Operazioni menu GUI (vpagina 9)
Mappa menu GUI (vpagina 10)
Español
Uso de los menús GUI (vpágina 9)
Estructura de los menús GUI (vpágina 10)
Nederlands
Het GUI menu bedienen (vblz. 9)
Overzicht van het GUI menu (vblz.10)
Svenska
Användning av GUI-menyerna
(vsidan 9)
GUI-menyöversikt (vsidan 10)
ENGLISH


Advertisement

Table of Contents
loading

Related Manuals for Denon ASD-3N - Digital Player Docking Station

Summary of Contents for Denon ASD-3N - Digital Player Docking Station

  • Page 1 ENGLISH raphical ser nterface English GUI Menu Operations (vpage 9) GUI Menu Map (vpage 10) Deutsch GUI-Menübedienung (vSeite 9) GUI-Menüplan (vSeite 10) ® Control Dock for iPod Français ASD-3N Fonctionnement du menu de l’interface graphique GUI (vpage 9) Plan du menu de l’interface graphique GUI (vpage 10) Owner’s Manual Italiano...

  • Page 2: Safety Instructions

    SAFETY INSTRUCTIONS Read Instructions – All the safety and operating instructions should be read 12. Grounding or Polarization – This product may be equipped with a polarized before the product is operated. alternating-current line plug (a plug having one blade wider than the other). Retain Instructions –...
  • Page 3 FCC requirements. Modification not expressly approved by e) If the product has been dropped or damaged in any way, and DENON may void your authority, granted by the FCC, to use the product. f) When the product exhibits a distinct change in performance – this indicates a need for service.
  • Page 4 Enligt stadgarna i direktiv 2006/95/EC och 2004/108/EC. Dichiariamo con piena responsabilità che questo prodotto, al quale la nostra dichiarazione si riferisce, è conforme alle seguenti normative: DENON EUROPE EN60950, EN55022, EN55024, EN61000-3-2 e EN61000-3-3. Division of D&M Germany GmbH In conformità con le condizioni delle direttive 2006/95/EC e 2004/108/EC.
  • Page 5 SVENSKA NEDERLANDS ESPAÑOL ITALIANO FRANCAIS DEUTSCH ENGLISH CAUTION: PRECAUCIÓN: To completely disconnect this product from the Para desconectar completamente este producto de mains, disconnect the plug from the wall socket la alimentación eléctrica, desconecte el enchufe del outlet. enchufe de la pared. The mains plug is used to completely interrupt the El enchufe de la alimentación eléctrica se utiliza para power supply to the unit and must be within easy...
  • Page 6 ENGLISH DEUTSCH FRANCAIS ITALIANO ESPAÑOL NEDERLANDS SVENSKA CAUTION: ATTENZIONE: OBSERVERA: • The ventilation should not be impeded by covering the • Le aperture di ventilazione non devono essere ostruite • Ventilationen bör inte förhindras genom att täcka för ventilation openings with items, such as newspapers, coprendole con oggetti, quali giornali, tovaglie, tende e ventilationsöppningarna med föremål såsom tidningar, tablecloths, curtains, etc.
  • Page 7 SVENSKA NEDERLANDS ESPAÑOL ITALIANO FRANCAIS DEUTSCH ENGLISH OBSERVERA ANGÅENDE NOTE ON USE NOTE SULL’USO ANVÄNDNINGEN • Avoid high temperatures. • Evitate di esporre l’unità a temperature elevate. Allow for sufficient heat dispersion when installed in a rack. Assicuratevi che vi sia un’adeguata dispersione del calore •...
  • Page 8 ENGLISH DEUTSCH FRANCAIS ITALIANO ESPAÑOL NEDERLANDS SVENSKA ACERCA DEL RECICLAJE: A NOTE ABOUT RECYCLING: Los materiales de embalaje de este producto son reciclables y se pueden volver This product’s packaging materials are recyclable and can be a utilizar. Disponga de estos materiales siguiendo los reglamentos de reciclaje reused.

  • Page 9: Table Of Contents

    ENGLISH Contents Getting Started Language ·········································································································13 GUI ···················································································································13 Accessories ········································································································2 a Screensaver ·····························································································13 Cautions on Handling ·······················································································2 s Format ······································································································13 About the Remote Control Unit ······································································2 d GUI time out ····························································································13 Before Using ····································································································2 Other ················································································································14 Inserting the Battery ························································································3 a iPod Charge ······························································································14 Operating Range of the Remote Control Unit ·················································3 s Slide Show ·······························································································14...

  • Page 10: Accessories

    • The included AC adapter is exclusively for use with this unit. Never use it with other equipment. Before Using Thank you for purchasing this DENON product. To ensure proper operation, please read these owner’s Remove the insulating sheet before using the remote Cautions on Handling manual carefully before using the product.

  • Page 11: Inserting The Battery

    ENGLISH CAUTION Operating Range of the Remote Inserting the Battery RISK OF EXPLOSION IF BATTERY IS REPLACED Control Unit q Remove the rear lid. w Load battery BY AN INCORRECT TYPE. properly as indicated DISPOSE OF USED BATTERIES ACCORDING TO Point the remote control unit at the remote sensor by the marks in the THE INSTRUCTIONS.

  • Page 12: Part Names And Functions

    ENGLISH Part Names and Functions Remote Control Unit For buttons not explained here, see the page indicated in parentheses ( ). RANDOM button MEMORY button Top Panel / Front Panel Muting button (MUTE) Turning off the sound temporarily. VOLUME control buttons Use this to adjust the volume.

  • Page 13: Connections

    ENGLISH Connections Mount the included universal adapter suited for your iPod ® to the control dock’s universal adapter slot. Mounting the universal adapter on the control dock Adapter iPod is a trademark of Apple Inc., registered in the U.S. and other countries. Bottom surface of universal adapter Main unit Stamped indication...

  • Page 14: Connection To Devices Equipped With Dock Control Or Lan

    The ASD-3N can be operated remotely using the supplied remote control. By connecting to your existing equipment, you can play back your favourite music and Latest compatible lists http://blog.denon.com/asd-3/. video files from your iPod or from over a network. NOTE...

  • Page 15: Network Audio

    ENGLISH Required system Network Audio n Broadband Internet connection “Network Setup” (vpage 11, 12) A broadband line connection to the Internet is [Wired LAN] required in order to use the ASD-3N’s Internet radio function and firmware update. n Modem This is a device that is connected to the broadband line to communicate with the Internet.
  • Page 16 ENGLISH n Ethernet cable n Others Format rate minute hour (CAT-5 or greater recommended) • If you have an Internet provider contract for a line on Approx. Approx. which network settings are made manually, make Use for wired LAN. kbps 1 MB 60 MB •...

  • Page 17: Gui Menu Operations

    ENGLISH Examples of GUI Screen Displays GUI Menu Operations Some typical examples are described below. Example: Browse Menu (Top Menu) With the ASD-3N, settings and operations for most functions can be performed by operating while looking at the GUI menus displayed on the monitor screen. Example of the Display of the GUI Mark at a Title iPod Music...

  • Page 18: Cursor Position Display

    ENGLISH GUI menu map Cursor Position Display n Icon iPod (vpage 16) Switch the selected item n Music n Video Switch to the next item Switch the selected item Selected item Network (vpage 17) n List n Favorites n Internet Radio Selected item Switch to the next item n Music Server...

  • Page 19: Setup

    I nput the address. This is a system for converting the domain names used when browsing Internet sites (for Network example, “www.denon.jp”) into the IP addresses actually used for communications (for example, Make network settings. “202.221.192.106”). w Set “OFF”.

  • Page 20: Network Information

    ENGLISH [Selectable items] w Select “Proxy”. Subnet Mask Address When connecting an xDSL modem or terminal : Select when inputting by address. adapter directly to the ASD-3N, input the subnet Name : Select when inputting by domain mask indicated in the documentation supplied by name.

  • Page 21: Language

    ENGLISH s Format Language Select the video output signal format to This sets the language used Make GUI related settings. match the monitor. on the display screens [Selectable items] Setup Setup NTSC Language b Normally there is no need to set this. a Screensaver NOTE [Selectable items]...

  • Page 22: Other

    ENGLISH d Interval h Firmware Update Other Set the playback time per image. Update the fi rmware. Make various other settings. You can update to the latest fi rmware by connecting [Selectable items] the ASD-3N to a network. It is recommended that you update to the latest Setup fi rmware version when using the ASD-3N.
  • Page 23 ENGLISH ENTER t S elect “Start” and press • When you press ENTER, firmware updating starts automatically. • The message “Now Updating. During this process screen will go blank for several minutes. Do not turn off. ” will appear briefly, after which the GUI screen will go blank.

  • Page 24: Playback

    NOTE BROWSE/REMOTE • Depending on the type of iPod and the software Playback version, some functions may not operate. • DENON will accept no responsibility whatsoever for 8, 1/3, 9 any loss of iPod data. iPod ® Playback ENTER Playback Music and Video iPod is a trademark of Apple Inc.,...

  • Page 25: Viewing Still Pictures Or Videos On The Ipod

    Remote mode. Shuffl ing playback · Your favorite radio stations can be registered by Press RANDOM switch the shuffl e mode. accessing an exclusive DENON Internet radio u i to select the menu, then Shuffl e by track URL from a Web browser on a computer.
  • Page 26 ENGLISH n Music server Installing Windows Media Player ver. 11 This function lets you play music files and playlists q If Windows XP Service Pack 2 has not yet been installed, either download it free of charge from Microsoft (m3u, wpl) stored on a computer (music server) or install it via a Windows update installer.

  • Page 27: Basic Operation

    ENGLISH Stopping playback temporarily Basic Operation During playback, press ENTER or 1/3. Press again to resume playback. Make the necessary preparations. To stop During the play or pause mode, press and hold q Check the network environment, then turn on ENTER ENTER.

  • Page 28: Listening To Internet Radio

    ENGLISH Recently Played Internet Radio Stations Listening to Internet Radio Recently played internet radio stations can be selected to select “Internet Radio”, from “Recently Played” in menu. ENTER then press to select “Recently Played”, 8, 9 ENTER then press to select the item you want ENTER ENTER to play, then press...

  • Page 29: Playing Files Stored On A Computer

    ENGLISH Listening to Internet Radio Stations Playing Files Stored on a Computer Registered in Your Favorites Use this procedure to play music files, • Connections to the required system and specific to select “Favorites”, then settings must be made in order to play music files image files or playlists.

  • Page 30: Other Information

    ENGLISH Playing repeatedly DLNA Press REPEAT to switch the repeat mode. Other Information Single track repeat • DLNA and DLNA CERTIFIED are trademarks and/or All track repeat service marks of Digital Living Network Alliance. • Some contents may not be compatible with other Playing in random order DLNA CERTIFIED™...

  • Page 31: Troubleshooting

    ENGLISH Troubleshooting If a problem should arise, first check the following: 1. Are the connections correct? 2. Is the set being operated as described in the owner’s manual? 3. Are the other components operating properly? If this unit does not operate properly, check the items listed in the table below. Should the problem persist, there may be a malfunction. In this case, disconnect the power immediately and contact your store of purchase.
  • Page 32 ENGLISH GNETH Symptom Cause Countermeasure Page Internet radio cannot be • Ethernet cable is not properly connected or network is • Check the connection status. played. disconnected. • Program is being broadcast in non-compatible format. • Only Internet radio programs in MP3 and WMA can be played on this set.

  • Page 33: Restart And Reset Operations

    ENGLISH Restart and Reset Operations If a fault occurs during use of the ASD-3N, for example, if you cannot connect to a GHow to reset the ASD-3NH network although the network settings are correct, or the iPod cannot be detected Insert a thin, pointed object (*2) into the reset hole (*1) or the remote control unit does not work, you may be able to resolve the problem and press the reset button inside the ASD-3N.

  • Page 34: Specifications

    ENGLISH Specifications Control Dock for iPod Power supply: DC IN 6V Maximum external dimensions: 120 (W) x 43.8 (H) x 120 (D) mm Weight: 260 g Terminal: Analog audio output terminals x 1, S-Video output terminal x 1, Control terminal x 1 Ethernet terminal x 1 AC Adapter (KSAFC0600150W1UV-1) 100 –...
