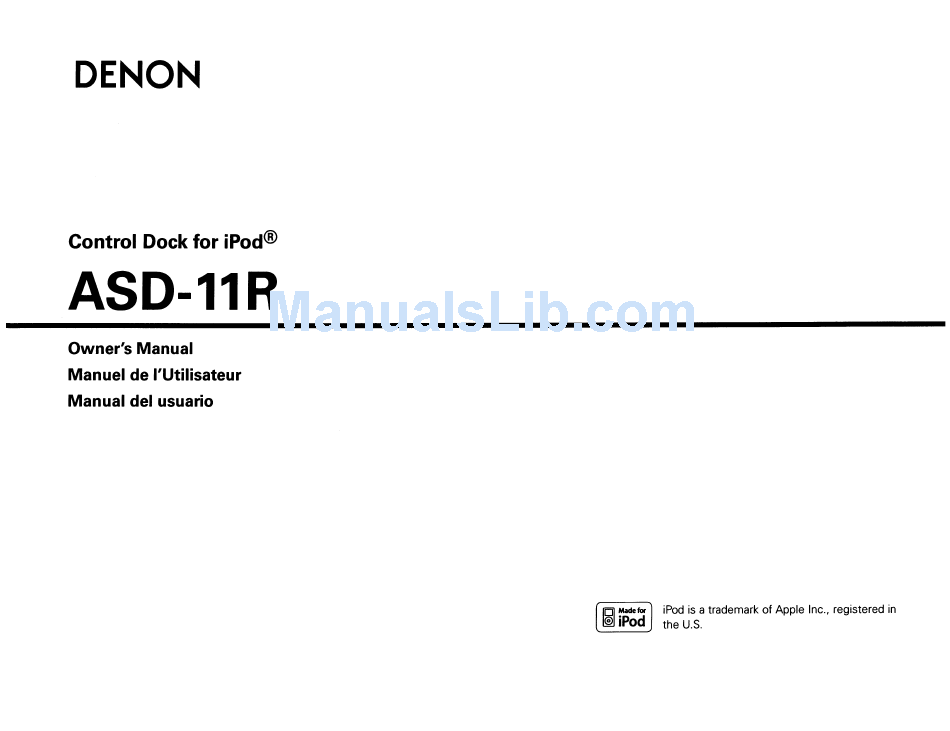

- Page 1 DENON Control Dock for iPod® ASD-11R Owner's Manual Manuel de l'Utilisateur Manual del usuario iPod is a trademark of Apple Inc., registered in the U.S.
- Page 2 ENGLISH FRANCAIS ESPANOL IMPOTANT SAFETY SAFETY PRECAUTIONS INSTRUCTIONS ELECTR~C Read these instructions. RISK OF SHOCK Keep these instructions. Heed all warnings. ' - --_=-D-=.O..:..N::..=O:..:.T..;::O:..:...P...::::E::..=N_--' Follow all instructions. Do not use this apparatus near water. CAUTION: Clean only with dry cloth. TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE Install in accordance with the manufacturer's instructions.
- Page 3 FCC requirements. Modification not expressly approved by DENON may void your authority, granted by the FCC, to use the product. EN60950, EN55022, EN55024, EN61000-3-2 et EN6100Q-3-3. D'apres les dispositions de la Directive 2006/95/EC et 2004/108/EC.
- Page 4 ENGLISH FRANCAIS ESPANOL CAUTION: NOTE ON USE A NOTE ABOUT RECYCLING: • The ventilation should not be impeded by covering the This product's packaging materials • Avoid high temperatures. ventilation openings with items, such as newspapers, are recyclable and can be reused. Allow for sufficient heat dispersion when installed in a tablecloths, curtains, etc.
-
Page 5: Table Of Contents
Contents Getting Started Getting Started Accessories····················································.. ················································· ·1 Thank you for purchasing this DENON product. To ensure proper operation, please Cautions on Handling··· read these owner's manual carefully before using the product. ··2 After reading them, be sure to keep them for future reference. -
Page 6: Cautions On Handling
ENGLISH Part Names and Functions iPod is a trademark of Apple Inc., registered in the U.S. The iPod may only be used to copy or play conten ts that are not copyrighted For buttons not explained here. see the page indicated in parentheses ( ). or contents for which copying or playback is legally permitted for your private use as an individual. -
Page 7: Connections
ENGLISH Connections When the ASD-11R is connected to a DENON AV device equipped with a dock OAbout the adapter control tenninal, various iPod playback operations can be performed from the Use the adapter included with the iPod. connected AV device. -
Page 8: Connecting The Av Device
ENGLISH Connecting the AV Device Connecting the AC Adapter AV device with dock control terminal Monitor AC outlet (wall) -AUDlO- -VIDEO- -VIDEO- & AC 120 V, 60 Hz (For U.S.A. Canada model) DOCK AC 240 V, 50 Hz (For U.K. model) CONTROL '--- •... -
Page 9: Playback
ENGLISH Playback iPod Playback Connect the ASD-11 R to the AV device before connecting the iPod to the ASD- • Connecting the AV device (Grpage 4) • iPod connections (Gf'page 4) Perfonn all the operations on theAV device or iPod connected to the ASD-11R. The method of operation differs according to the connected AV device. - Page 10 :,'. . , ..", : ; Playback • Note that DENON will accept no responsibility whatsoever for loss of or damage to iPod data when using an iPod connected to the ASD-11 R. • Depending on the iPod's software version, it may not be possible to operate the Din the remote mode iPod with the ASD-11 R.
- Page 11 ENGLISH Troubleshooting If a problem should arise, first check the following: 1. Are the connections correct? 2. Is the set being operated as described in the owner's manual? 3. Are the other components operating property? If this unit does not operate properly, check the items listed in the table below. Should the problem persist, there may be a malfunction. In this case, disconnect the power immediately and contact your store of purchase.
- Page 12 ENGLISH Specifications Control Dock for iPod (ASD-11R) Power supply: DC 6V Power consumption: 1 W (When iPod is disconnected) Maximum external dimensions: 28.5 76.5 mm (4-3/32" 1-1/8" x 3-1/64") Weight: 220 g (7.8 oz) Terminal: Analog audio output terminals x 1, $-Video output terminal x 1, Control terminal x 1 AC adapter (KSAFC0600150W1 UV-1)
