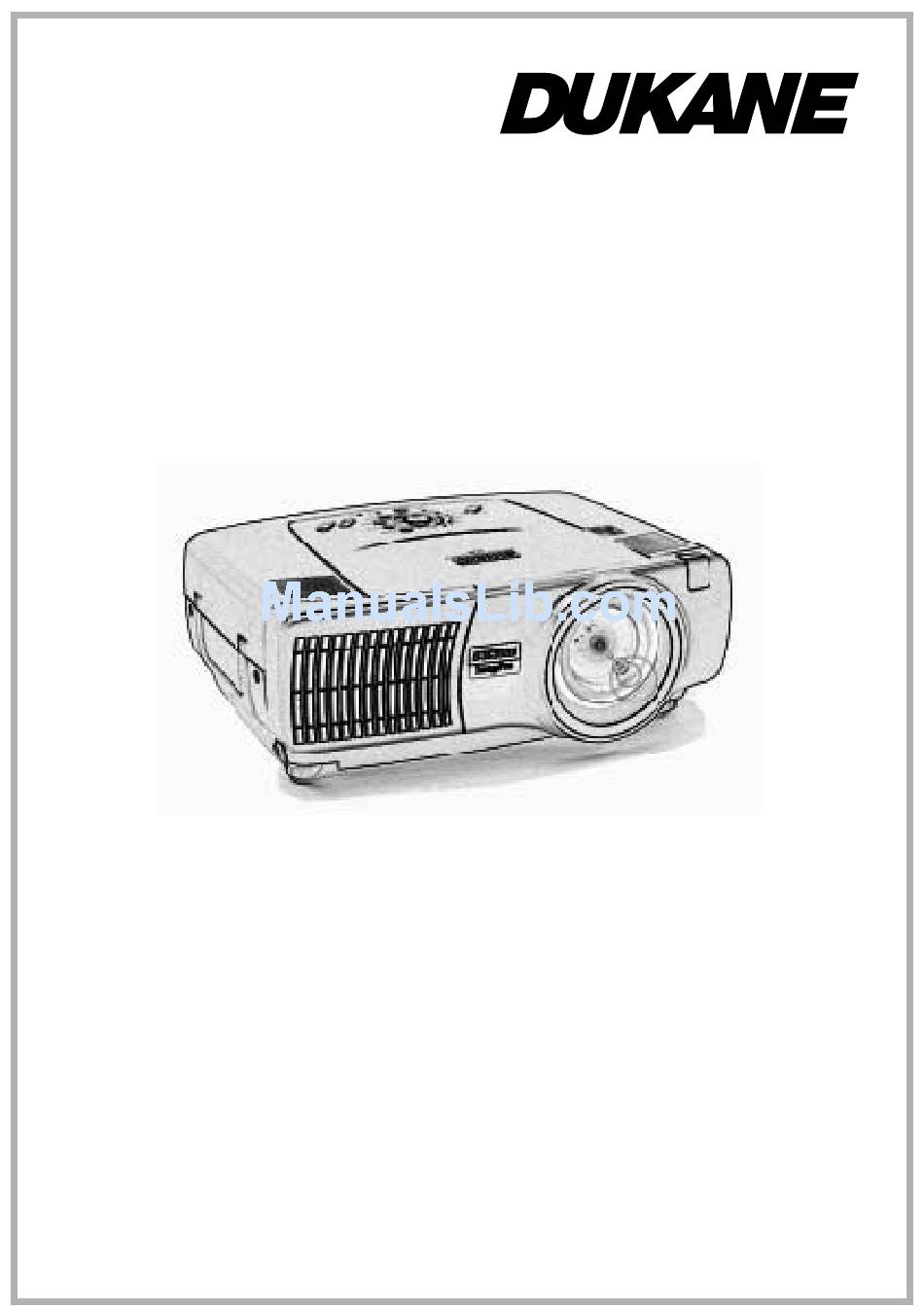

- Page 1 Liquid Crystal Projector Models 8935/8942 USER'S MANUAL Please read this user's manual thoroughly to ensure correct usage through understanding.
- Page 3 Projector 8935/8942 8935/8942 User's Manual - Operating Guide User's Manual - Operating Guide Thank you for purchasing this projector. WARNING Before using, read the "User's Manual - Safety Guide" and these manuals to ensure correct usage through understanding. After reading, store them in a safe place for future reference.
-
Page 4: Projector Features
Keystone Distortion Correction Quick correction of distorted images electrically. ● Optical Lens Shift The lens of this projector can be shifted vertically. When you want to finely adjust the picture position, use the LENS SHIFT buttons. Preparation Preparation Please see the “Contents Of Package” on page 1. -
Page 5: Table Of Contents
Contents Projector Features … … … … … … … … … … … … … … 2 Preparation … … … … … … … … … … … … … … … … … … … … 2 Part Names …... -
Page 6: Part Names
Part Names Part Names Projector Projector (Front/Right) Projector (Rear/Left) Elevator button Elevator foot Remote sensor Lens cap Lens The picture is projected from here. Filter cover An air filter is inside. RGB port M1-D port BNC port AUDIO IN 1 port... -
Page 7: Control Buttons
Control Buttons KEYSTONE M1-D INPUT LENS SHIFT COMPONENT ENTER S-VIDEO VIDEO STANDBY/ON Control Panel on the Projector Remote Control STANDBY/ON button LENS SHIFT buttons SEARCH button ZOOM buttons FOCUS buttons KEYSTONE button MENU button RESET button ENTER button Mouse left button) -
Page 8: Setting Up
Setting Up Setting Up Arrangement WARNING • Before installation, make sure that the projector is turned off and the power code is disconnected. • Do not set up and move the projector, while it is hot. • Install the projector in a suitable environment according to instructions of the “User’s Manual –... -
Page 9: Adjusting The Projector's Elevator
You can use the elevator feet to make adjustments if the surface on which you need to set the projector is uneven or if you otherwise need to adjust the angle of projection. The adjustment range of the elevator feet is 0 to 9 degrees. -
Page 10: Connecting Your Devices
• Please take advantage of this function by connecting the accessory RGB cable to the RGB port (DDC 1/2B compatible). Plug-and-Play may not work properly if any other type of connection is attempted. • Please use the standard drivers in your computer as this projector is a Plug-and-Play monitor. -
Page 11: Examples Of Connection With A Computer
Setting Up (continued) Setting Up (continued) Please refer to the following (for example) for connecting your devices. See the rear of the projector. You can see the ports. Examples of connection with a computer Computer RGB out RGB cable Audio out... - Page 12 ■ If using a component signal Y out Audio out (R) Audio out (L) ■ If using a SCART RGB input SCART RGB out SCART adapter Projector AUDIO IN1 R-AUDIO IN-L VIDEO R-AUDIO IN AUDIO IN2 AUDIO IN-L VIDEO IN S -VIDEO AUDIO IN1...
-
Page 13: Connecting The Power Supply
• Only plug the power cord into outlets rated for use with the power cord’s specified voltage range. • Only use the power cord that came with the projector. If it is damaged, contact your dealer to newly get correct one. -
Page 14: Remote Control
Remote Control Remote Control About The Laser Pointer WARNING • The laser pointer of the remote control is used in place of a finger or rod. Never look directly into the laser beam outlet or point the laser beam at other people. -
Page 15: Operating The Remote Control
If it is difficult to send a remote signal to the sensor directly, please try. • Since the remote control uses infrared light to send signals to the projector (Class1 LED), be sure to use the remote control in an area free from obstacles that could block the remote control’s output signal to the projector. -
Page 16: Using The Mouse/Keyboard Control Function
Using the USB control feature, you can use the remote control as a simplified mouse or keyboard of the computer. Connect the M1-D port of the projector to the computer via the M1-D cable. Then functions illustrated below will be enabled. -
Page 17: Power On/Off
WARNING • When the power is ON, a strong light is emitted. Do not look into the lens or vents of the projector. NOTE • Turn the power on/off in right order. Please power on the projector before the connected devices. Power off the projector after the connected devices. Turning On The Power Remove the lens cap. -
Page 18: Operating
Pressing the button automatically cycles through input ports and displays the picture of retrieved signal. If no signal is found or the projector is unstable to memo find an input signal at any of its ports, it will turn to the state it was in prior to the search. -
Page 19: Selecting The Aspect Ratio
Operating (continued) Operating (continued) Selecting The Aspect Ratio Press the Aspect button to toggle between the modes for aspect ratio. ■ At a M1-D signal NORMAL NORMAL keeps the original aspect ratio of the memo input signal. ■ At a RGB signal (not M1-D) 16:9 ■... -
Page 20: Adjusting The Picture Position
Operating (continued) Operating (continued) Adjusting The Picture Position This function is available only for RGB signals. memo Press the POSITION button. As illustrated on the right, a dialog will appear on the screen to aid you in adjusting the position. Use the cursor buttons position. -
Page 21: Adjusting The Volume
Operating (continued) Operating (continued) Adjusting The Volume Press the VOLUME button. As illustrated on the right, a dialog will appear on the screen to aid you in adjusting the volume. Use the cursor buttons adjust the volume. Press the VOLUME button again to close the dialog and complete this operation. -
Page 22: Freezing The Screen
NOTE • If the projector continues projecting the same image for a long time (i.e. you forget to exit FREEZE mode), the image might possibly remain as an afterimage. Do not leave the projector in FREEZE mode for too long. -
Page 23: Displaying The Child Window
Operating (continued) Operating (continued) Displaying The Child Window This feature called "PinP (Picture in Picture)" is available only when a RGB signal is memo selected to main screen. Press the PinP button. The child window with a picture of a video signal will appear. -
Page 24: Multifunctional Settings
Multifunctional Settings Using The Menu Functions This projector has the following menus: MAIN, PICTURE-1, PICTURE-2, INPUT, AUTO, SCREEN, OPTION and NETWORK. Each of these menus is operated using the same methods. The basic operations of these menus are as follows. -
Page 25: Main Menu
Multifunctional Settings (continued) Multifunctional Settings (continued) MAIN Menu With the MAIN menu, the items shown in the table below can be performed. Perform each operation in accordance with the instructions in the table below. Item BRIGHT Adjust the brightness using the CONTRAST Adjust the contrast using the Select an aspect ratio using the... -
Page 26: Picture-1 Menu
Multifunctional Settings (continued) Multifunctional Settings (continued) PICTURE-1 Menu With the PICTURE-1 menu, the items shown in the table below can be performed. Perform each operation in accordance with the instructions in the table below. Item Select a gamma mode using the NORMAL Selecting the CUSTOM and then pressing the the CUSTOM menu. - Page 27 LOAD1 SAVE1 MY MEMORY This projector has 4 numbered memories for adjustment data. Performing the SAVE1, SAVE2, SAVE3 or SAVE4 puts the current adjustment data on the memory whose number corresponds with the command’s number. Performing the LOAD1, LOAD2, LOAD3 or LOAD4 loads the data on the memory whose number corresponds with the command’s number, and adjusts...
-
Page 28: Picture-2 Menu
Multifunctional Settings (continued) Multifunctional Settings (continued) PICTURE-2 Menu With the PICTURE-2 menu, the items shown in the table below can be performed. Perform each operation in accordance with the instructions in the table below. memo This menu cannot be selected at a M1-D signal. Item Adjust the vertical position using the V POSITION... -
Page 29: Input Menu
Multifunctional Settings (continued) Multifunctional Settings (continued) INPUT Menu With the INPUT menu, the items shown in the table below can be performed. Perform each operation in accordance with the instructions in the table below. Item Select a color space mode using the AUTO Selecting the AUTO automatically selects the optimum mode. - Page 30 Select the display position of the child window using the P.IN P. POSIT. memo Window”. Select a signal input port to display just when the projector is turned on, using POWERUP INPUT LAST INPUT Selecting the LAST INPUT selects the port that was used at the last time.
-
Page 31: Auto Menu
Long (max. 99 minutes) POWER OFF When the time is set to 1 to 99, the projector lamp will go off and the STANDBY/ON indicator begins blinking when the passed time with a proper signal (without no-signal and an unsuitable signal) reaches at the set time. - Page 32 S-VIDEO COMPONENT When the TURN ON is selected, pressing the RGB button selects the If no signal is found or the projector is unstable to find an input signal at button to reset the AUTO menu items. : CANCEL buttons. :...
- Page 33 Multifunctional Settings (continued) Multifunctional Settings (continued) SCREEN Menu With the SCREEN menu, the items shown in the table below can be performed. Perform each operation in accordance with the instructions in the table below. Item Select a type of the BLANK screen using the MyScreen The BLANK screen is the screen, which is displayed by pressing the BLANK button.
- Page 34 Multifunctional Settings (continued) Multifunctional Settings (continued) SCREEN Menu (continued) Item Select the TURN ON or the TURN OFF using the TURN ON When the TURN ON is selected, the following message function works. The message of the “AUTO IN PROGRESS” for the auto adjustment. The message of the ”NO INPUT IS DETECTED”...
-
Page 35: Option Menu
Always at least one sensor is on. Select a number as an ID number for remote control using the The projector is controlled by the remote control whose ID CHANGE switch is IR REMOTE ID set into the position of the same number as this number. When the ALL is selected, the projector is controlled by a remote control irrespective of the position of the ID CHANGE switch. - Page 36 The HIGH ups rotation speeds of fans, though. Please use this function in using a projector at highlands etc. memo Note that the projector is noisier when the HIGH is selected. Select the ENABLE or the DISABLE using the buttons. :...
-
Page 37: Network Menu
This item performs only when the TURN OFF is set to the item “DHCP” of this NETWORK menu. The IP Address is identification number of the projector on the Network. 1. Set the IP Address using the memo The same number as the IP Address of other units cannot be used. -
Page 38: Network Setting Up
Web Browser of the computer connected to the Network. Although it needs a Web Browser of Internet Explorer 4.0 or higher. Input the same IP address as set to the projector, to the Web Browser of the computer connected to LAN. -
Page 39: Lamp
Loose screws could result in damage or injury. • Use only the lamp of the specified type 456-8935. • If the lamp breaks soon after the first time it is used, it is possible that there are electrical problems elsewhere besides the lamp. -
Page 40: Replacing The Lamp
If the indicators or a message prompts you to replace the lamp, replace the lamp as soon as possible. Turn off the projector, and unplug the power cord. Allow the lamp bulb to cool for at least 45 minutes. Contact your dealer to prepare a new lamp. Tell the dealer your lamp type number. -
Page 41: Air Filter
45 minutes for the lamp to cool sufficiently. • Use only the air filter of the specified type NJ08081. • Do not use the projector with the air filter and filter cover removed. The use without the air filter could result in damage. -
Page 42: Other Care
• Do not polish or wipe with hard objects. Caring For The Inside Of The Projector In order to ensure the safe use of your projector, please have it cleaned and inspected by your local dealer about once every 2 years. -
Page 43: Troubleshooting
This projector is equipped with an automatic shut-down function, such that the power will automatically be turned off when lamp usage time has reached 2000 hours. - Page 44 The internal portion temperature is rising. Please turn the power OFF, and allow the unit to cool down at least 20 minutes. After the projector has sufficiently cooled down, please make confirmation of the following items, and then turn the power on again.
-
Page 45: Regarding The Indicator Lamps
In such a case, press the “○” (OFF) side of the main power switch, and wait at least 45 minutes. After the projector has sufficiently cooled down, please make confirmation of the attachment state of the lamp and lamp cover, and then turn the power on again. - Page 46 Please turn the power off, and allow the unit to cool down at Turned least 45 minutes. After the projector has sufficiently cooled down, please make confirmation of the attachment state of the lamp and lamp cover, and then turn the power on again.
-
Page 47: Phenomena That May Easily Be Mistaken For Machine Defects
(continued) Phenomena That May Easily Be Mistaken For Machine Defects WARNING • Never use the projector if abnormal operations such as smoke, strange odor, excessive sound, damaged casing or elements or cables, penetration of liquids or foreign matter, etc. should occur. In such cases, immediately... - Page 48 roubleshooting (continued) roubleshooting (continued) Phenomena That May Easily Be Mistaken For Machine Defects (continued) Phenomenon The signal cables are not correctly connected. Correctly connect the connection cables. The volume is adjusted to an extremely low level. Pictures are Adjust the VOLUME to a higher level. displayed, The sound is muted.
-
Page 49: Warranty And After-Service
Ports Lamp Optional Air filter Parts Others Specification Liquid crystal projector 2.5 cm (0.99 type) TFT active matrix 786,432 pixels (1024 horizontal x 768 vertical) Zoom lens F=1.7 ~ 2.4 f=30.5 ~ 45.8 mm 310W UHB 1.0W + 1.0W (Stereo) AC100 ~ 120V, 5.2A / AC220 ~ 240V, 2.2A... - Page 51 Projector WARNING • WARNING CAUTION...
- Page 52 WARNING Disconnect the plug from the power outlet. Do not disassemble.
- Page 53 WARNING Surely connect the ground wire.
- Page 54 WARNING...
- Page 55 CAUTION Disconnect the plug from the power outlet.
- Page 56 CAUTION NOTE...
- Page 57 NOTE Any strong ray (such as direct rays of the sun or room lighting) onto the remote control sensors could invalidate the remote control.
- Page 58 WARNING HIGH VOLTAGE HIGH TEMPERATURE HIGH PRESSURE...
- Page 61 DUKANE CORPORATION FIVE-YEAR LIMITED WARRANTY This Dukane projector is warranted to the original purchaser for a period of five (5) years from the original purchase date – in normal operating conditions – against defects in material and workmanship . DUKANE CORPORATION EXPRESSLY DISCLAIMS ALL OTHER WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
- Page 62 Dukane Corporation Audio Visual Products Division 2900 Dukane Drive St. Charles, IL 60174-3395 E-mail: avsales@dukcorp.com Phone: (630) 762-4040 Orders: (800) 676-2485 Information: (800) 676-2486 Fax: (630) 584-5156 Parts & Service: (800) 676-2487 Fax: (630) 584-0984 Audio Visual Products 401-8935/8941B-00...
