7. Serial ATA connectors (7-pin SATA1, SATA2)
These connectors support the thin Serial ATA cables for Serial ATA hard
disks. If you installed Serial ATA hard disks, you may create a RAID 0 or
RAID 1 configuration.
R
K8V-MX

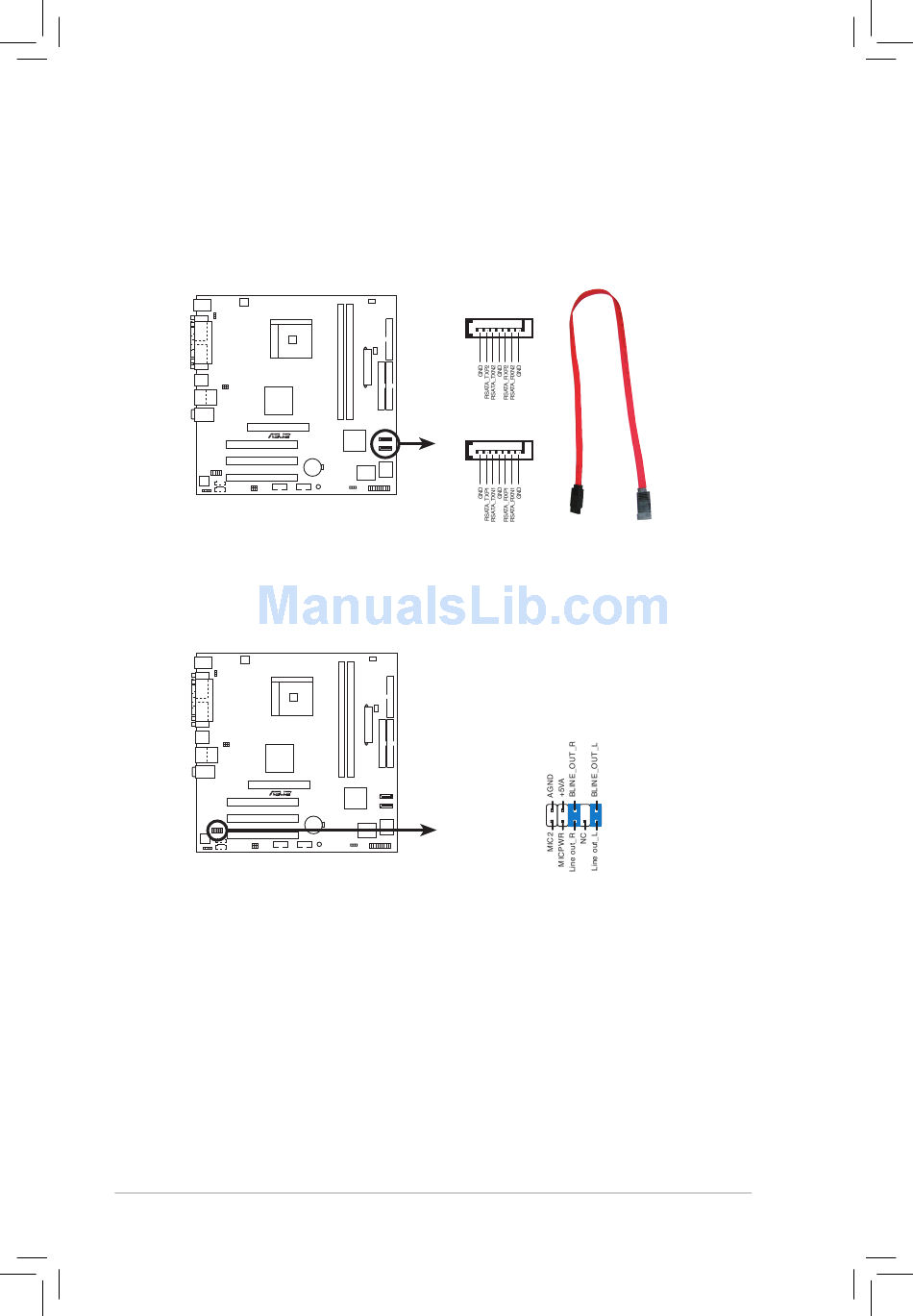

K8V-MX SATA connectors
8. Front panel audio connector (10-1 pin FP_AUDIO)
This interface for the Intel
connection and control of audio devices.
R
K8V-MX
K8V-MX Front panel audio connector
1-24
SATA2
SATA1
®
front panel audio cable allows convenient
FP_AUDIO
Chapter 1: Product Introduction
