WARNING –
• To reduce the risk of severe injury or death, follow all installation instructions.
• Clothes dryer installation must be performed by a qualified installer.
• Install the clothes dryer according to these instructions and in accordance with local codes.
• This dryer must be exhausted to the outdoors.
• Use only 4" rigid metal ducting for exhausting the clothes dryer to the outdoors.
• DO NOT install a clothes dryer with flexible plastic ducting materials. If flexible metal (semi-rigid or foil-type) duct is installed,
it must be UL-listed and installed in accordance with the instructions found in "Connecting the Dryer to House Vent" on page
7 of this manual. Flexible ducting materials are known to collapse, be easily crushed, and trap lint. These conditions will
obstruct dryer airflow and increase the risk of fire.
• Do not install or store this appliance in any location where it could be exposed to water and/or weather.
• Save these instructions. (Installers: Be sure to leave these instructions with the customer.)
• This appliance must be properly grounded and installed as described in these instructions.
IMPORTANT
• Exhausting the dryer to the outside
is required to prevent large
amounts of moisture, lint and other
products of combustion from being
blown into the room.
• Service information and a wiring
diagram are located in the dryer
access panel.

TOOLS NEEDED

Slip-joint pliers
Phillips-head and flat-blade screwdrivers
Ratchet with 3/8" socket
Carpenter's level
Adjustable wrenches
49-90383
05-09 JR

Installation instructions

for your new
Before you begin – Read these instructions completely and carefully.
IMPORTANT – OBSERVE ALL GOVERNING CODES AND ORDINANCES.
Note to Installer – Be sure to leave these instructions with the Consumer.
Note to Consumer – Keep these instructions with your Owner's Manual for future reference.
POTENTIAL FIRE AND SHOCK HAZARD
"
75 ⁄
1
2
54
Spacemaker
Laundry
WSM2700 Electric

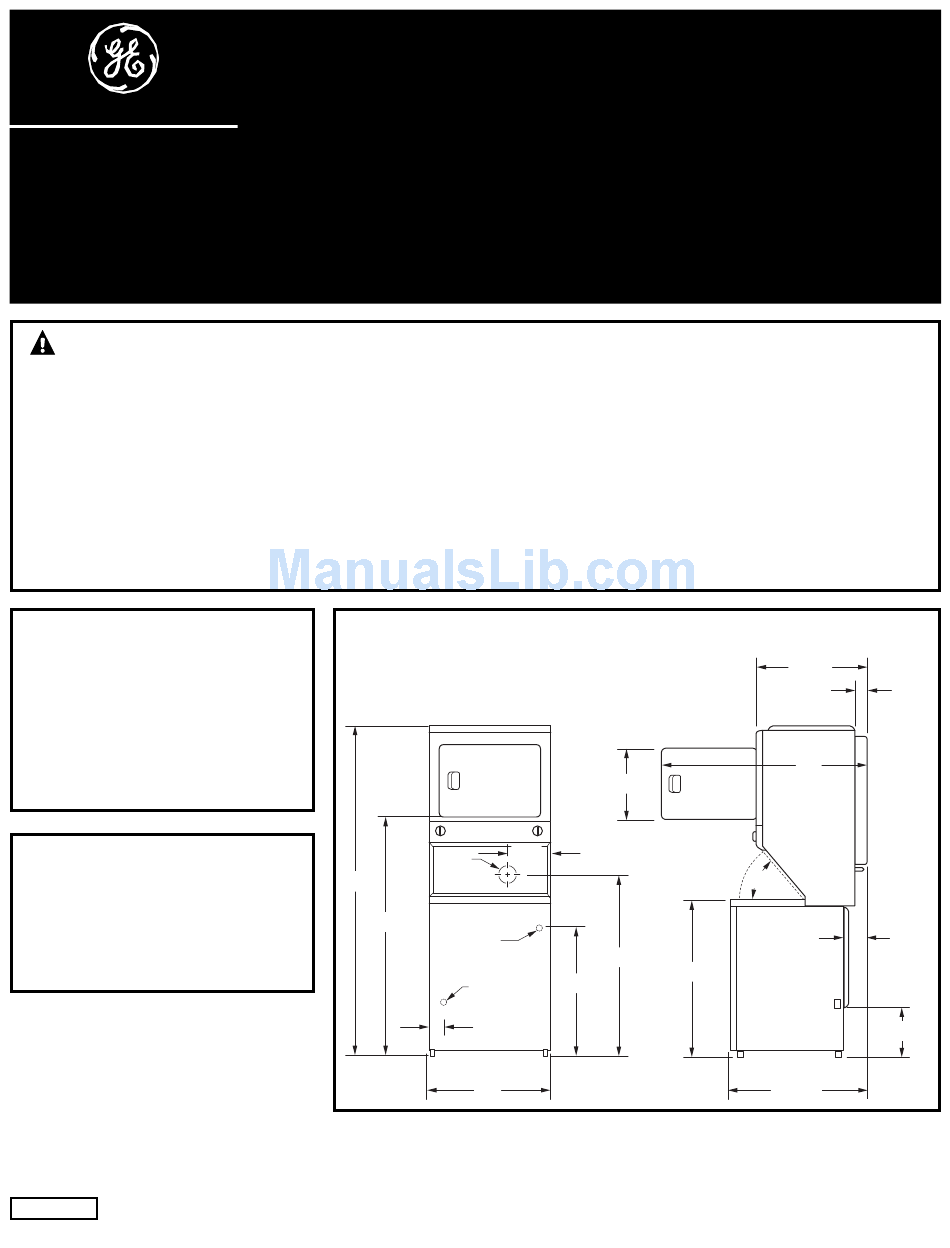

PRODUCT DIMENSIONS

"
9 ⁄
3
8
Vent
"
⁄
5
16
Water
inlets (rear)
29
Drain outlet
(rear)
"
3 ⁄
3
4
27"
"
16 1 ⁄
4
51°
"
41 1 ⁄
4
"
36 1 ⁄
16
"
7 ⁄
16
™
"
25 1 ⁄
4
"
2 ⁄
1
2
47"
"
4 ⁄
13
16
"
11 7 ⁄
16
"
30 13 ⁄
16
