Platform Installations and Upgrades
NOTE
If the FFC is not attached to the backplane board, see "Reattaching Flat Flex
Cable to Backplane Board" for instructions on reinstalling it. Install the FFC
into the backplane board before attaching it to the floppy drive.
7. Pull down gently on the FFC that is attached to the backplane board. Insert the blue edge of the
FFC cable into the connector on the floppy drive. See Figure 26, B.
8. Holding the FFC in place, push down on each side of the locking bar on the floppy drive
connector to lock the FFC into place. See Figure 26, C.
9. Ensure the FFC is correctly installed by verifying the following:
A small line of blue ribbon shows above the floppy drive connector
The side of the cable facing you is solid gray (not printed).
If line of blue ribbon is not parallel to the top of the connector, or if the printed side of the FFC
is facing you, disengage the locking bar and re-insert the FFC as described in the steps above.
A
NOTE
The backplane board will hang loose from the floppy drive while you move
to your next steps. Use caution to avoid twisting or bending the FFC.
B

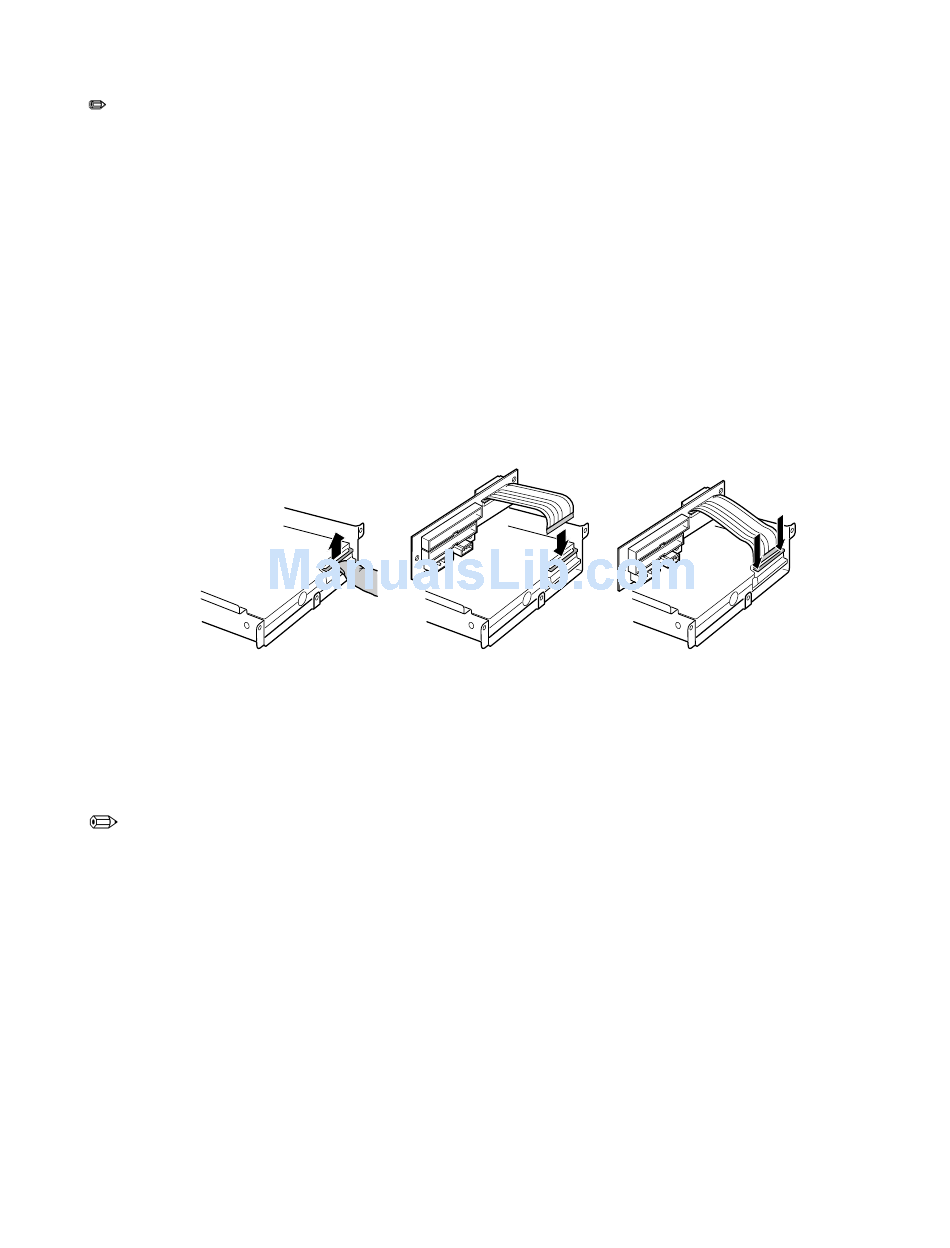

Figure 26. Attaching the FFC to the Floppy Drive
C
TP00143C
