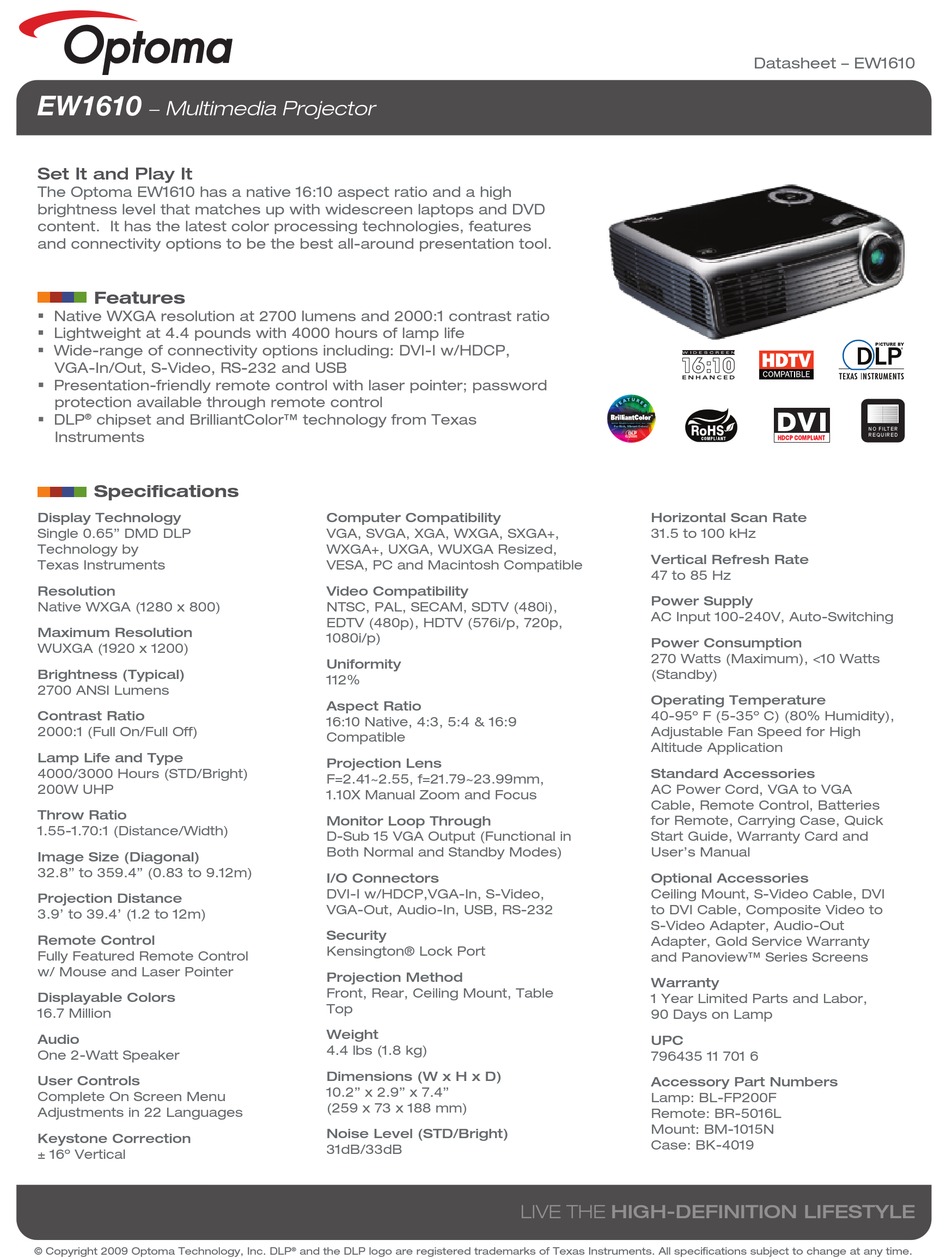

Optoma EW1610 Datasheet

EW1610
− Multimedia Projector
Set It and Play It
The Optoma EW1610 has a native 16:10 aspect ratio and a high
brightness level that matches up with widescreen laptops and DVD
content. It has the latest color processing technologies, features
and connectivity options to be the best all-around presentation tool.
Features
 Native WXGA resolution at 2700 lumens and 2000:1 contrast ratio
 Lightweight at 4.4 pounds with 4000 hours of lamp life
 Wide-range of connectivity options including: DVI-I w/HDCP,
VGA-In/Out, S-Video, RS-232 and USB
 Presentation-friendly remote control with laser pointer; password
protection available through remote control
 DLP chipset and BrilliantColor™ technology from Texas
®
Instruments

Specifications

Display Technology
Single 0.65" DMD DLP
Technology by
Texas Instruments
Resolution
Native WXGA (1280 x 800)
Maximum Resolution
WUXGA (1920 x 1200)
Brightness (Typical)
2700 ANSI Lumens
Contrast Ratio
2000:1 (Full On/Full Off)
Lamp Life and Type
4000/3000 Hours (STD/Bright)
200W UHP
Throw Ratio
1.55-1.70:1 (Distance/Width)
Image Size (Diagonal)
32.8" to 359.4" (0.83 to 9.12m)
Projection Distance
3.9' to 39.4' (1.2 to 12m)
Remote Control
Fully Featured Remote Control
w/ Mouse and Laser Pointer
Displayable Colors
16.7 Million
Audio
One 2-Watt Speaker
User Controls
Complete On Screen Menu
Adjustments in 22 Languages
Keystone Correction
± 16º Vertical
© Copyright 2009 Optoma Technology, Inc. DLP
Computer Compatibility
VGA, SVGA, XGA, WXGA, SXGA+,
WXGA+, UXGA, WUXGA Resized,
VESA, PC and Macintosh Compatible
Video Compatibility
NTSC, PAL, SECAM, SDTV (480i),
EDTV (480p), HDTV (576i/p, 720p,
1080i/p)
Uniformity
112%
Aspect Ratio
16:10 Native, 4:3, 5:4 & 16:9
Compatible
Projection Lens
F=2.41~2.55, f=21.79~23.99mm,
1.10X Manual Zoom and Focus
Monitor Loop Through
D-Sub 15 VGA Output (Functional in
Both Normal and Standby Modes)
I/O Connectors
DVI-I w/HDCP,VGA-In, S-Video,
VGA-Out, Audio-In, USB, RS-232
Security
Kensington® Lock Port
Projection Method
Front, Rear, Ceiling Mount, Table
Top
Weight
4.4 lbs (1.8 kg)
Dimensions (W x H x D)
10.2" x 2.9" x 7.4"
(259 x 73 x 188 mm)
Noise Level (STD/Bright)
31dB/33dB
and the DLP logo are registered trademarks of Texas Instruments. All specifications subject to change at any time.
®
Horizontal Scan Rate
31.5 to 100 kHz
Vertical Refresh Rate
47 to 85 Hz
Power Supply
AC Input 100-240V, Auto-Switching
Power Consumption
270 Watts (Maximum), <10 Watts
(Standby)
Operating Temperature
40-95º F (5-35º C) (80% Humidity),
Adjustable Fan Speed for High
Altitude Application
Standard Accessories
AC Power Cord, VGA to VGA
Cable, Remote Control, Batteries
for Remote, Carrying Case, Quick
Start Guide, Warranty Card and
User's Manual
Optional Accessories
Ceiling Mount, S-Video Cable, DVI
to DVI Cable, Composite Video to
S-Video Adapter, Audio-Out
Adapter, Gold Service Warranty
and Panoview™ Series Screens
Warranty
1 Year Limited Parts and Labor,
90 Days on Lamp
UPC
796435 11 701 6
Accessory Part Numbers
Lamp: BL-FP200F
Remote: BR-5016L
Mount: BM-1015N
Case: BK-4019
LIVE THE HIGH-DEFINITION LIFESTYLE
Datasheet – EW1610
NO FILTER
REQUIRED
