Array Drive Summary; Select Drive To Repair; Replace Hard Drive Prompt; Add Disk To Array Confirmation - Intel SRCMR - RAID Controller User Manual

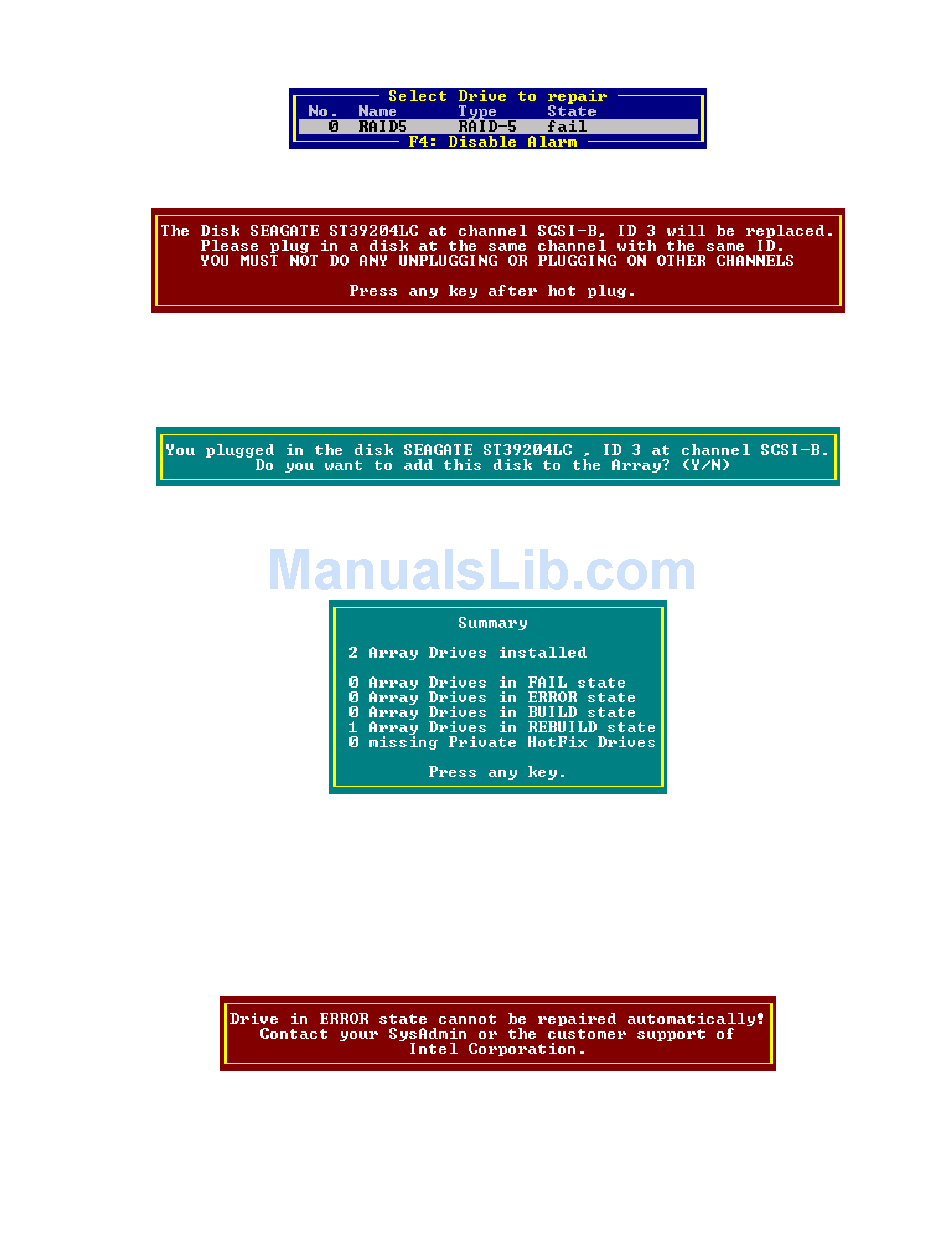

Figure 33. Select Drive to Repair
Figure 34. Replace Hard Drive Prompt
StorCon detects the new drive and expects clearance to build this drive as a replacement into the
array drive. See Figure 35.
Figure 35. Add Disk to Array Confirmation
When clearance is given, the state of the array drive changes to Rebuild, for example, the missing
data is reconstructed out of the remaining data and redundancy information. See Figure 36.
Figure 36. Array Drive Summary
The Error state of an array drive is critical. There are several procedures in the Intel RAID
Controller SRCMR's firmware to handle such cases and bring back the array drive into operation
without losing data. See Figure 37.
Figure 37. Array Drive Error State Dialog
98 Intel RAID Controller SRCMR User's Guide
